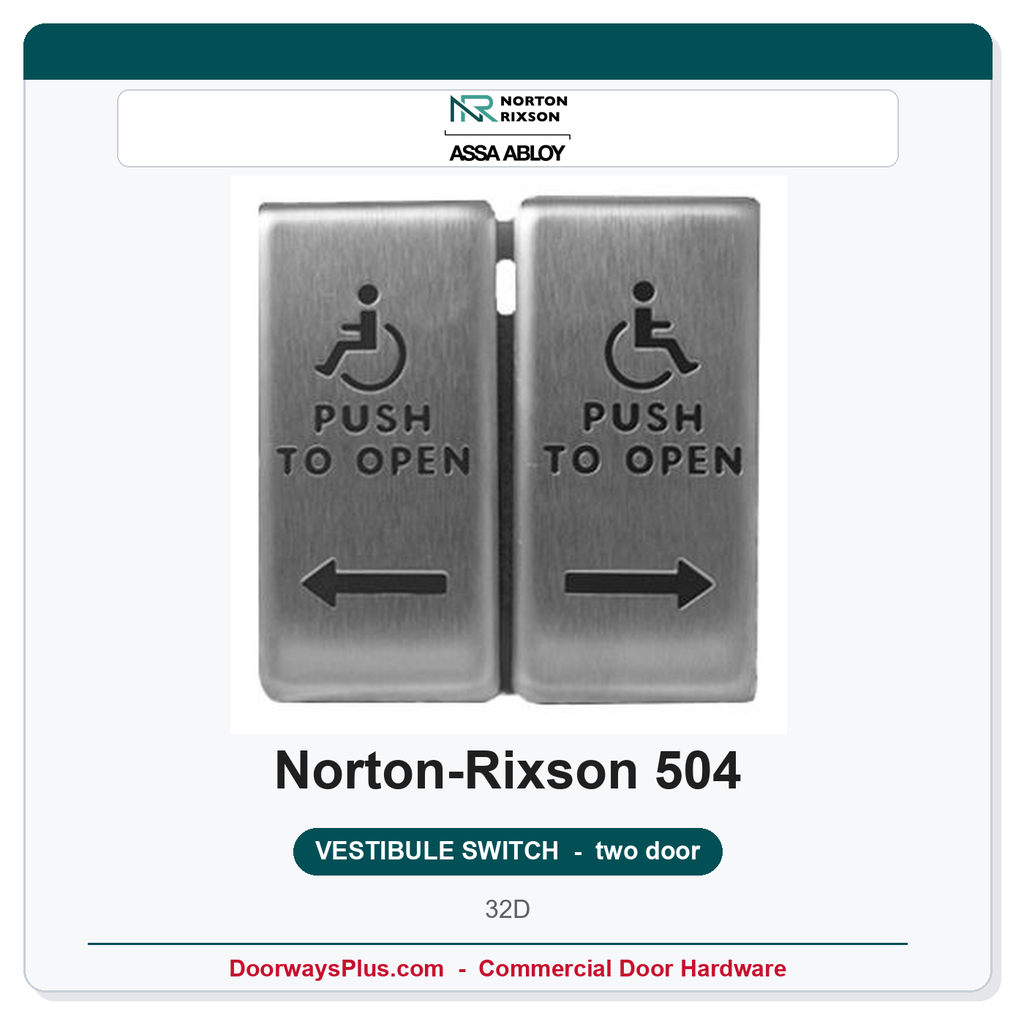

Norton 504 Two-Door Vestibule Switch — Hard Wired, Finish 32D

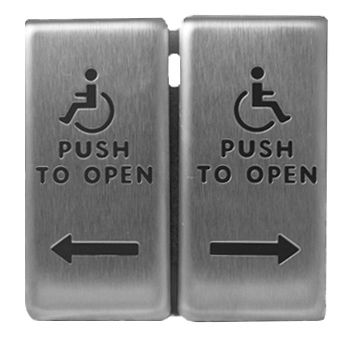

The Norton 504 Vestibule Switch is a hard-wired, two-door momentary push-button switch designed for use with low-energy automatic door operators in commercial vestibule applications. Manufactured by Norton (Norton-Rixson / ASSA ABLOY), the Model 504 controls two separate door operators from a single, compact wall station — making it the correct choice for double-door or two-leaf vestibule entrances. It is not the single-door 503 model; the 504 is specifically configured with two independent momentary SPDT switches in one housing.
Key Features & Benefits
- Two-Door Control in One Station: Houses two independent momentary SPDT switches, enabling simultaneous or sequential activation of two automatic door operators from a single wall-mounted unit — ideal for vestibule and airlock entrances.
- UL Listed: Rated 15 amp at 125 VAC, UL Listed for safety and code compliance in commercial installations.
- Compact, Standard-Box Fit: Measures 5 in. W × 4-3/4 in. H and mounts directly to a standard 2-gang electrical box. The optional Norton 542 surface-mount box is available when in-wall mounting is not feasible.
- Durable Stainless Finish with Blue Lettering: Finished in 32D (satin stainless) with blue-lettered legends for clear, professional aesthetics in high-traffic lobbies, healthcare corridors, and institutional entries.
- Hard-Wired Reliability: Direct hard-wired connection eliminates battery dependency, ensuring consistent, maintenance-free operation in demanding commercial environments.
- Compatible with Norton Low-Energy Operators: Designed to integrate with Norton's 4500, 5200, 5700, 5800, 6200, and 6300 series low-energy automatic operators.
Applications
- Commercial vestibule and airlock two-door entrances
- Healthcare, government, and institutional facilities
- ADA-accessible automatic door activator wiring
- Retrofit or new-construction low-energy operator control stations
Technical Details
| Feature | Details |
|---|---|
| Brand | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 504 |
| Part Type | Vestibule Switch — Two Door, Hard Wired |
| Finish | 32D (Satin Stainless) |
| Switch Type | Two Momentary SPDT |
| Electrical Rating | 15 Amp at 125 VAC |
| Listing | UL Listed |
| Dimensions | 5 in. W × 4-3/4 in. H |
| Mounting | Standard 2-gang electrical box; Optional Norton 542 surface-mount box |
| Compatible Operators | Norton 4500, 5200, 5700, 5800, 6200, 6300 series low-energy operators |
| Operator Warranty (series) | 2-year on compatible 4500/5200/5700/5800/6200/6300 operators |
Note: The Norton 504 controls two doors. For single-door vestibule switch applications, see the Norton 503. DoorwaysPlus can also quote comparable push-button operator control stations from preferred lines such as Hager or Norton-compatible alternatives — contact our commercial hardware team for options.
Ordering and Lead Time
Lead Time: 1-3 weeks
| Brand | Norton |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
