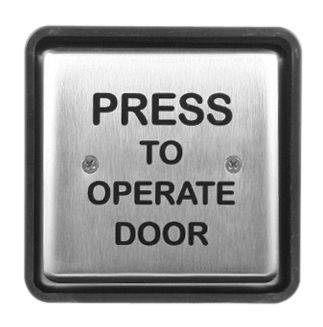

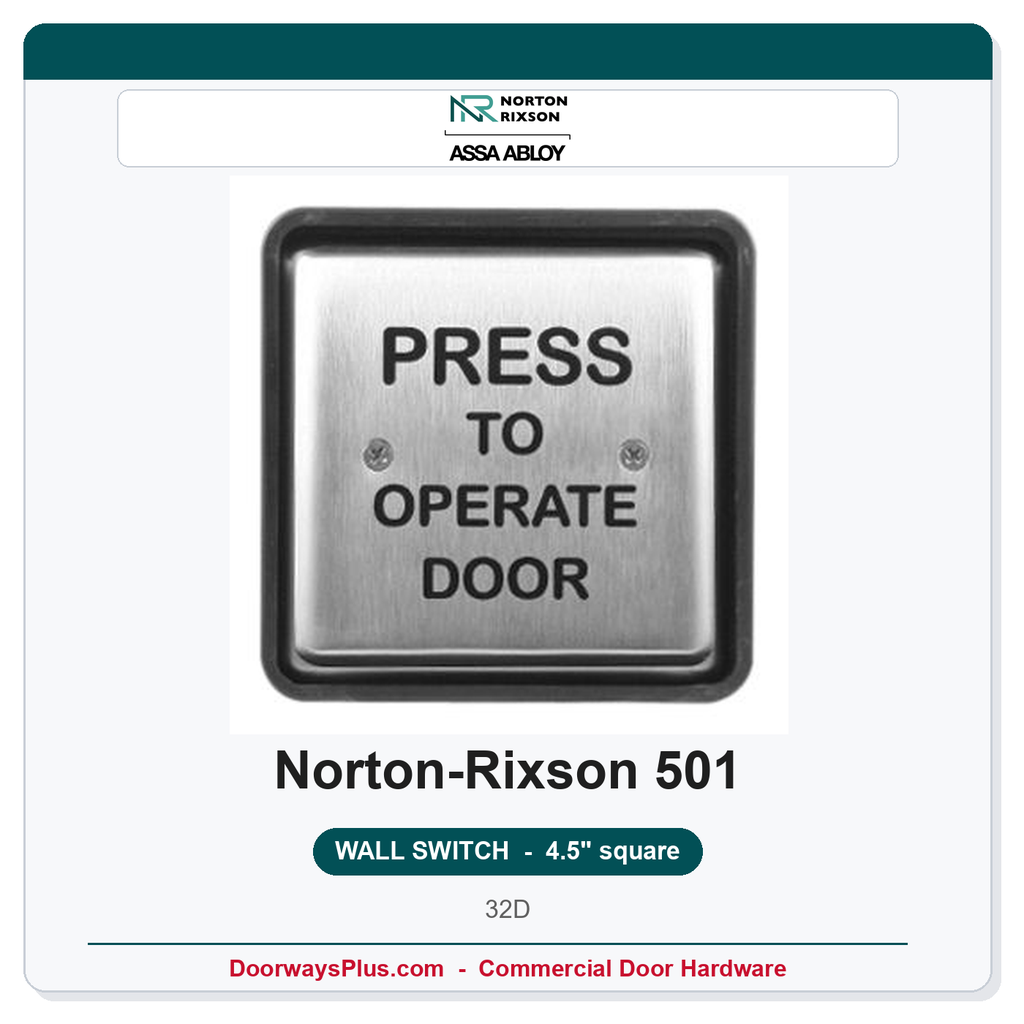

Norton 501 Hard-Wired Wall Switch — 4-1/2 In. Square, Finish 32D, Black Letters

The Norton 501 Wall Switch is a hard-wired, flush-mount push-button activator designed to trigger Norton low-energy automatic door operators in commercial and institutional applications. Measuring 4-1/2 inches square with a satin stainless (32D) faceplate and bold black "Press to Operate Door" lettering, the 501 provides a clean, professional appearance at accessible entrances. It is UL Listed and rated at 15 amps at 125 VAC, making it a reliable hardwired solution for high-use access points.

Per the Norton Operators Catalog 2026, the Model 501 is the designated activating wall switch for the Norton 4500, 5200, 5500, 5700, 6000, 6200, and 6300 series low-energy door operators. It installs in a standard single-gang or 2-gang electrical box and uses a momentary SPDT switching action — press-and-release triggers the operator cycle without a latching connection.

Not sure which Norton switch you need? The 501 (this listing) features black letters on a stainless plate — no ADA pictogram. The 502 carries blue letters with the ADA wheelchair symbol. The 505 is a larger 6-inch square format. Confirm your operator series and aesthetic requirements before ordering.

Key Features & Benefits

• Hard-Wired Reliability: Direct 15A / 125 VAC connection eliminates battery maintenance and provides consistent, consistent activation in high-traffic facilities.
• Momentary SPDT Action: Sends a clean pulse signal to the operator; no hold-to-run required — ideal for ADA-accessible door activation.
• Flush Mount, Single or 2-Gang Box: Installs to standard electrical rough-in boxes already present in most commercial wall constructions, simplifying retrofits and new builds alike.
• UL Listed: Meets UL requirements for safety and reliability in commercial electrical installations.
• 4-1/2 In. Square Profile: Compact footprint fits standard wall-plate openings; satin stainless (32D) finish coordinates with contemporary commercial hardware.
• Broad Operator Compatibility: Confirmed for Norton 4500, 5200, 5500, 5700, 6000, 6200, and 6300 low-energy operator series per current catalog.

Applications

• ADA-accessible entrances in offices, healthcare facilities, schools, and retail
• Retrofit activation for existing Norton low-energy operator installations
• High-traffic corridors requiring a reliable hard-wired push-button activator
• Locations specifying hard-wired (non-wireless) push-button controls

Technical Details

Ordering and Lead Time

Lead Time: 1-3 weeks
