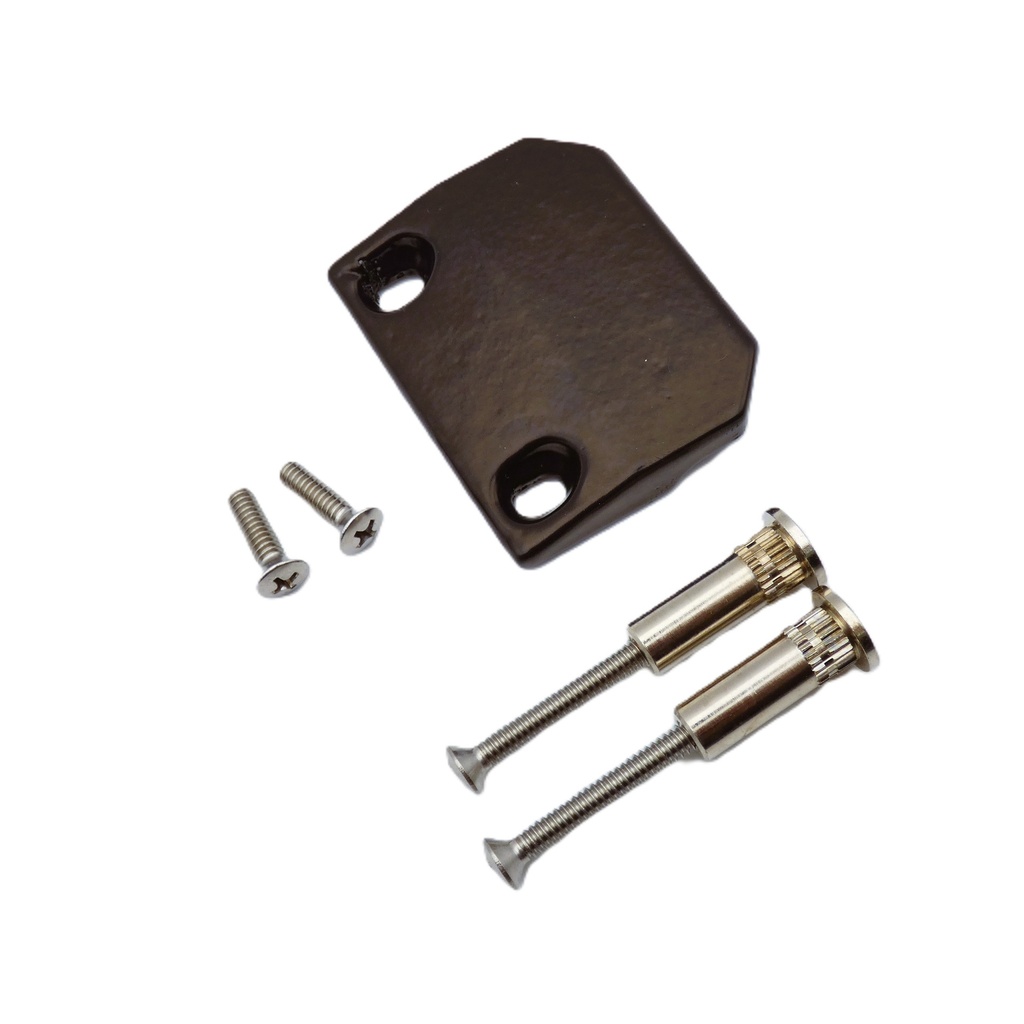

Sargent 644 Double Door Strike for Rim Exit Devices — Black

The Sargent 644 Double Door Strike is a surface-applied strike designed for use on pairs of doors without a center mullion. It provides a reliable latching point for the rim latch of Sargent 8800 Series and 3828 Series rim exit devices, allowing both the active and inactive leaves to function as a coordinated egress pair. The 644 strike mounts to the face of the inactive leaf, eliminating the need for a frame-mounted keeper or center mullion while maintaining positive latch engagement when the active leaf closes.

This accessory is finished in Black to coordinate with matching exit device and trim finishes on the same opening. It is specifically engineered for use with Sargent 80 Series and 2800/3800/8800 Series rim devices on pairs of doors, making it a practical solution for commercial applications where a mullion-free opening is required for accessibility, traffic flow, or aesthetic reasons.

Important Note: The Sargent 644 Double Door Strike is not approved for UL-listed fire door openings. Verify opening requirements before specifying — fire-rated pairs require a compliant, listed strike assembly appropriate for the labeled opening.

Key Benefits

• Enables mullion-free pairs of doors with rim exit devices — improves egress width and accessibility
• Surface-applied to the inactive leaf — no frame modification required
• Compatible with Sargent 8800 Series and 3828 Series rim exit devices
• Also suited for Sargent 2800 and 3800 Series rim devices on pairs
• Black finish coordinates with exit device and trim color selections
• Straightforward installation for contractors and service technicians

Typical Applications

• Pairs of commercial doors without center mullion or removable mullion
• Retail, office, and institutional openings requiring full-width clear egress
• Replacement strike for existing Sargent rim device installations on inactive leaf
• New construction or renovation projects specifying Sargent 8800 or 3828 Series panic hardware

About Rim Exit Device Strikes

On a pair of doors equipped with rim exit devices, the active leaf typically carries the rim device that strikes to the frame. The inactive leaf requires its own latching surface for the active leaf's rim latch — that is the role of a double door strike like the Sargent 644. When no mullion is present, the 644 provides a surface-mounted keeper on the inactive leaf face, so the active leaf rim latch positively engages and holds the pair closed until the touchbar is actuated. This configuration supports compliant egress operation and coordinated door-pair security without adding a fixed or removable mullion to the opening.

Technical Details
