Sargent R56A-32D Retrofit Motor Kit | Electric Latch Retraction (ELR)

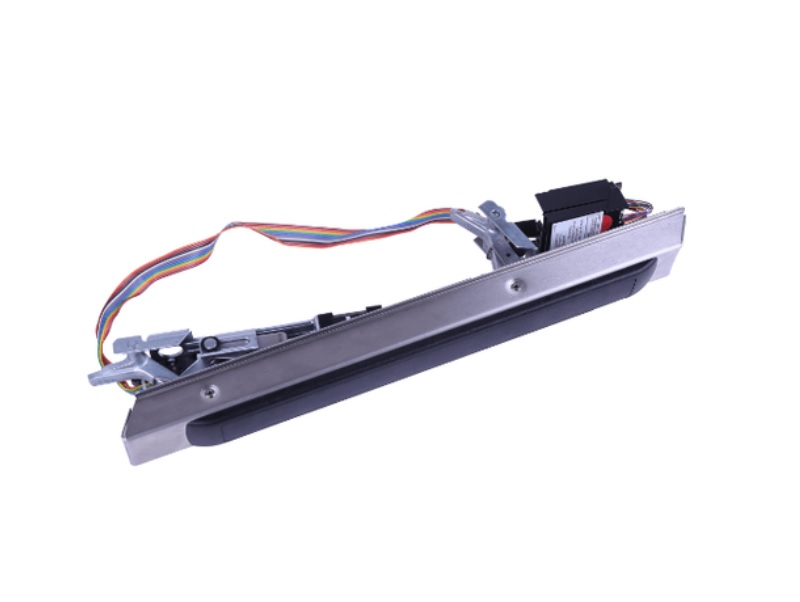

The Sargent R56A-32D is a premium Motor-Driven Latch Retraction retrofit kit engineered to upgrade existing Sargent 80 Series exit devices. Unlike traditional solenoid-driven kits, the R56A motor provides whisper-quiet operation and superior mechanical reliability for high-traffic institutional environments. Finished in 32D (Satin Stainless Steel), this heavy-duty assembly is built to withstand abusive conditions while backed by a 5-year factory warranty.

Institutional Grade Features & Benefits

• Quiet Motor-Driven Retraction: Provides smooth, motorized retraction of the latch bolt, making it ideal for healthcare facilities, libraries, and schools where noise reduction is critical.
• On-Board Adjustable Timer: Includes an integrated 0–10 second timer, eliminating the need for expensive external logic controllers or relays.
• Intelligent Diagnostics: Features a Diagnostic LED to streamline installation and improve field service by providing immediate visual status of the motor's operation.
• Low Power Consumption: Draws only .6A during retraction and drops to a minimal .25A hold, significantly reducing heat buildup and strain on your power supply.
• Hurricane & High-Wind Rated: Available in configurations that meet Dade County Protocols and other local hurricane codes for high wind load and missile impact.

• Broad Compatibility: Fully compatible with Latchbolt Monitoring (LX), Rail Signal Switches (SS), Electroluminescent Rails, and standard Hex Key or Cylinder Dogging.

Technical Specifications

• Model Number: R56A-32D
• Voltage Requirement: 24 VDC Regulated/Filtered Power Supply
• Current Draw: .6A (Retraction) / .25A (Maintained Hold)

• Door Widths: Fits rails for 26" through 48" doors
• Hardware Compatibility: Sargent 80 Series Exit Devices (Manufactured after 1995)
• Certifications: UL Listed for Class II circuitry; Fire and Panic Hardware approved.

​

How to determine the correct size for your exit device:

*** Items are factory ordered, and require 3-4 week lead time ***
