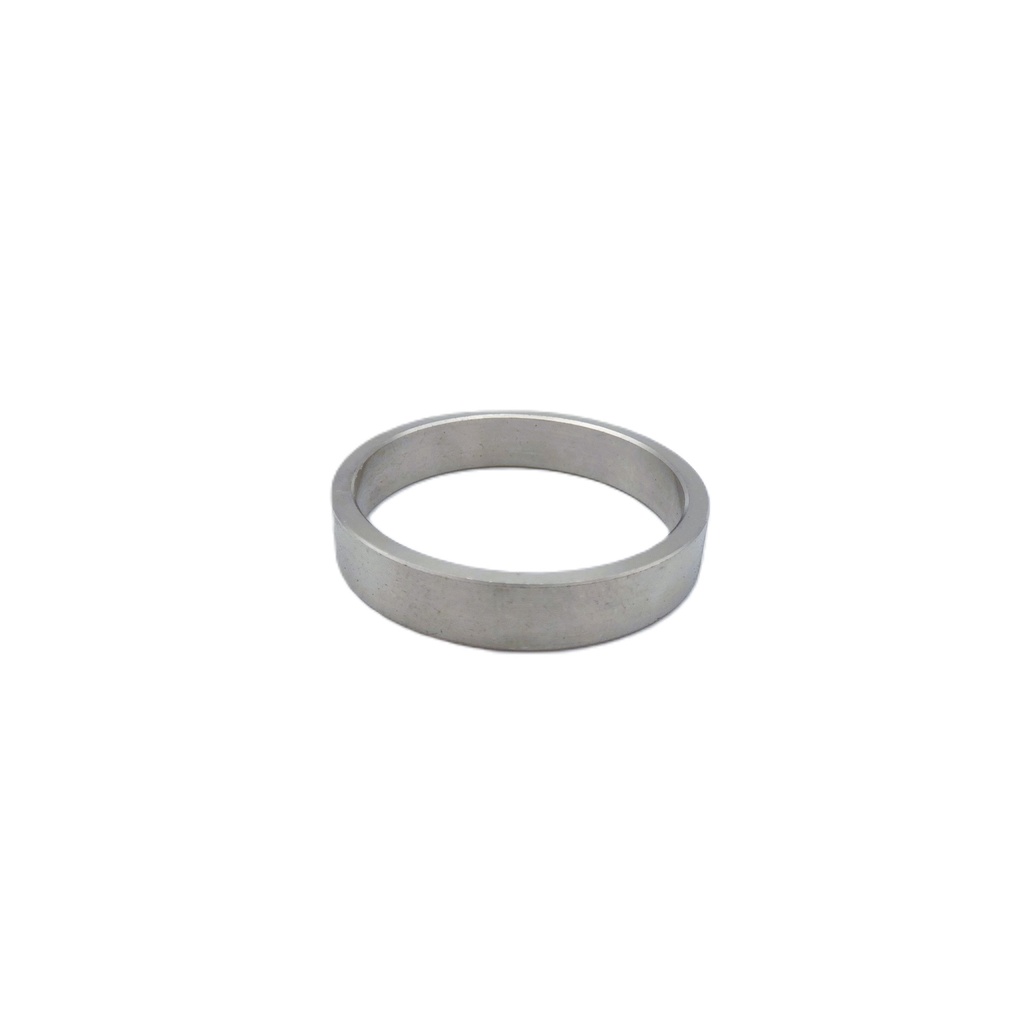

Sargent 90 Cylinder Trim Ring - 1/4" Mortise Cylinder Blocking Ring

The Sargent 90 Cylinder Trim Ring (1/4" Thick) is a high-grade architectural mortise hardware solution designed to provide a seamless, professional finish for door cylinders that extend beyond the door face. Known in the industry as a blocking ring or cylinder spacer, this 1/4" ring serves as the primary aesthetic and security solution when a mortise cylinder is longer than the door thickness or the lock's internal housing requires. By filling the gap between the cylinder head and the door or escutcheon, it eliminates unsightly exposed threads and creates a unified, solid assembly.

Engineered for durability, the Sargent #90 1/4" spacer is the go-to installation solution for Sargent 8200 Series mortise locks and specialized Adams Rite aluminum storefront applications. In many high-security or master-keyed environments, cylinders are manufactured with extra length to accommodate additional pin chambers or side-bar mechanisms. This 1/4" ring acts as a structural stabilization solution, ensuring the cylinder is held rigidly against the lock body. This prevents the "wobble" that leads to internal timing issues and acts as a vandal-deterrent solution by removing the gap that intruders often use to grip and twist cylinders with heavy tools.

Mechanical Utility & Installation Summary

The Sargent 90 Cylinder Trim Ring is a vital bridge component for achieving a code-compliant and secure door opening:

• Thread Protection: By concealing the cylinder's brass threads, the ring provides a corrosion-resistant solution for exterior-facing doors.
• Universal 1-3/8" Fit: While a Sargent-branded component, its standard diameter serves as a universal hardware solution for nearly any standard mortise cylinder on the market.
• Mechanical Alignment: Achieves the perfect depth for the cylinder cam to engage the lock’s internal "hub," serving as a functional timing solution for smooth locking and unlocking.
• Architectural Material Quality: Available in Solid Brass, Bronze, or Stainless Steel, these rings are designed for high-traffic commercial use where plastic or thin-gauge alternatives would fail.

Technical Specifications

Engineered Solutions for Door Hardware Maintenance

The Sargent #90 1/4" Ring provides specific technical answers to common field installation problems:

• Long Cylinder Adaptation: High-security cylinders (like Sargent Signature or Degree) are often longer than standard 1-1/8" cylinders. This 1/4" ring is the corrective solution needed to allow these cylinders to function in standard 1-3/4" thick doors.
• Storefront Retrofit Solution: On narrow-stile aluminum doors, the lock body is often centered. If a cylinder protrudes too far, the 1/4" ring provides a secure-seating solution, preventing the cylinder from being unscrewed or tampered with.
• Aesthetic Consistency: Available in a wide variety of finishes (such as Satin Chrome, Oil Rubbed Bronze, or Bright Brass), the ring acts as a design-matching solution, ensuring that the spacer looks like a factory-integrated part of the lock trim.

• Anti-Manipulation Security: Filling the 1/4" gap creates a flush surface, providing a security-enhancement solution that makes it significantly harder for unauthorized individuals to use pliers or pipe wrenches to bypass the lock.
• Weather-Sealing Support: When used with a small amount of sealant behind the ring, it provides a moisture-barrier solution, preventing rain or humidity from entering the lock chassis through the cylinder cutout.
