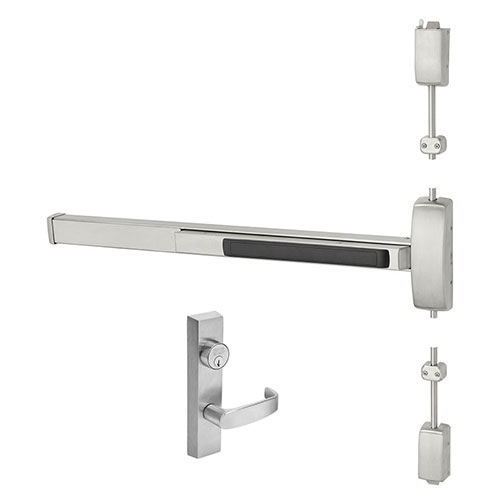

Sargent 8713 ETL Surface Vertical Rod Exit Device w/ Classroom Exit Trim
The Sargent 8713 ETL is a premier Grade 1 Surface Vertical Rod (SVR) exit device designed for high-traffic commercial applications requiring secure, two-point latching. This UL Listed panic and fire-rated hardware features the robust ETL Classroom Lever Trim, allowing the outside lever to be locked or unlocked by key—a vital function for school safety and office security. Engineered for durability, the 8713 ensures safe egress while maintaining the integrity of single or double door openings.
Heavy-Duty Security and Compliance
Built to exceed ANSI/BHMA A156.3 Grade 1 standards, the Sargent 8700 series offers superior strength with its 1/2" brass, bronze, or stainless steel rods. The two-point latching system secures the door at both the top and bottom, providing enhanced protection against forced entry. This device is UL10C Fire Rated when ordered with the 12-prefix, making it the industry standard for life safety and fire-code compliance in hospitals, universities, and government buildings.
Precision Engineering and Versatility
The Sargent 8713 is highly adaptable, fitting wood or metal doors with a minimum thickness of 1-3/4". Whether you are outfitting an E, F, J, or G rail size, each unit provides smooth, quiet operation with a low-profile projection that minimizes obstruction. For modern security integration, this device is available with multiple electrified options, including Remote Latch Retraction (56-ELR) and Request-to-Exit (55-RX) monitoring. To ensure a seamless "plug-and-play" installation of electrical components, the use of a QC12 ElectroLynx connector on the associated hinge is highly recommended.
Key Product Features
- Two-Point Latching: Secure top and bottom bolts with adjustability through the center case.
- Classroom Function Trim: The ETL lever provides flexible security, where the key controls the outside thumbturn or lever access.
- Fire & Panic Rated: UL10C (Fire) and UL305 (Panic) listed for maximum life safety.
- Grade 1 Durability: Certified to ANSI/BHMA A156.3 for long-term performance in high-use environments.
- Adjustable Sizing: Available in four rail lengths to accommodate door widths from 24" to 48".
- Electrified Compatibility: Supports Alarm (AL), Electric Dogging (58), and Latchbolt Monitoring (53).
Technical Specifications
| Feature | Details |
| Device Type | Surface Vertical Rod (SVR) |
| Trim Style | ETL Classroom Lever |
| Handing | LHRB or RHRB (Must specify upon order) |
| Door Height | Up to 96" (Fire Rated) or 120" (Non-Fire) |
| Stile Width | 4-1/2" Minimum with Trim |
| Strikes | 646 Top Strike / 655 Fire Rated Bottom Strike |
| Rod Material | 1/2" Brass, Bronze, or Stainless Steel |
Ordering Information & Handing
Please note that Door Handing is required at the time of purchase to ensure proper factory assembly. For doors requiring a UL label, ensure the 12-prefix is selected. If your project requires hurricane or tornado-resistant certifications, please ask about the HC8700 or FM8700 variants.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US10BE - Oil Rub Bronze Equal |
| Exit Device Fire Rating | Non Rated Door or Fire Rated Door |
| Sargent Exit Device Rail Length | F - 36" Wide Door or J - 42" Wide Door or G - 48" Wide Door |
| Door Handing | RHR or LHR |
| Sargent Exit Device Prefixes | 43 - Flush End Cap or 53 - Latchbolt Monitor Switch – available with 55, 56, 58, AL options) or 54 - Outside Lever Monitoring (not available with 04/10 function) or 55 - Signal Switch in Rail or 56 - Motorized Electric Latch Retraction (Minimum door width for narrow & wide stile is 28") or 58 - Electric Dogging or 59 - Electroguard Delay Egress (Not available with 16-, 53-, 55-, 56-, 58- Options) or HC - Hurricane Code (not available with 16, 28, 63, 66 functions) |
| Brand | Sargent |
| Series | Sargent - 80 Series, Sargent - 700 ET Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Trim Function | Classroom |
| Door Height | 7'0" Dr Ht |
| Door Opening Width | 36 Inches, 42 Inches, 48 Inches |
