Sargent 8296 LSB Trim Mortise Double Dummy Trim w/Lockbody

Fixed trim for doors that need the look and feel of the 8200 series without a lock.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Double Dummy Trim w/Lockbody function with LSB trim -- the B lever carried on the LS Security Escutcheon.

Double Dummy Trim w/Lockbody Function

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Trim on Both Faces: Trim on both sides of the door — a lever on each side of the door.
• The Lever Does Not Turn: Both trims are always rigid — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
• Ships With the Lock Case: Includes lock case and armor front — this dummy includes the mortise case and its armored front, so it sets into a mortised pocket and shows a lock front on the door edge; the trim-only dummies do not.
• Not for the Inactive Leaf of a Pair: Not recommended on double door applications (will not accept latchbolt from active door) — this version will not receive a latchbolt from the active leaf, so Sargent does not recommend it on a pair of doors; the dummy trims prepped to take that latch are the trim-only 8293 (one face) and 8294 (both faces), which ship without a lock case and whose levers are rigid.

LSB Trim Design

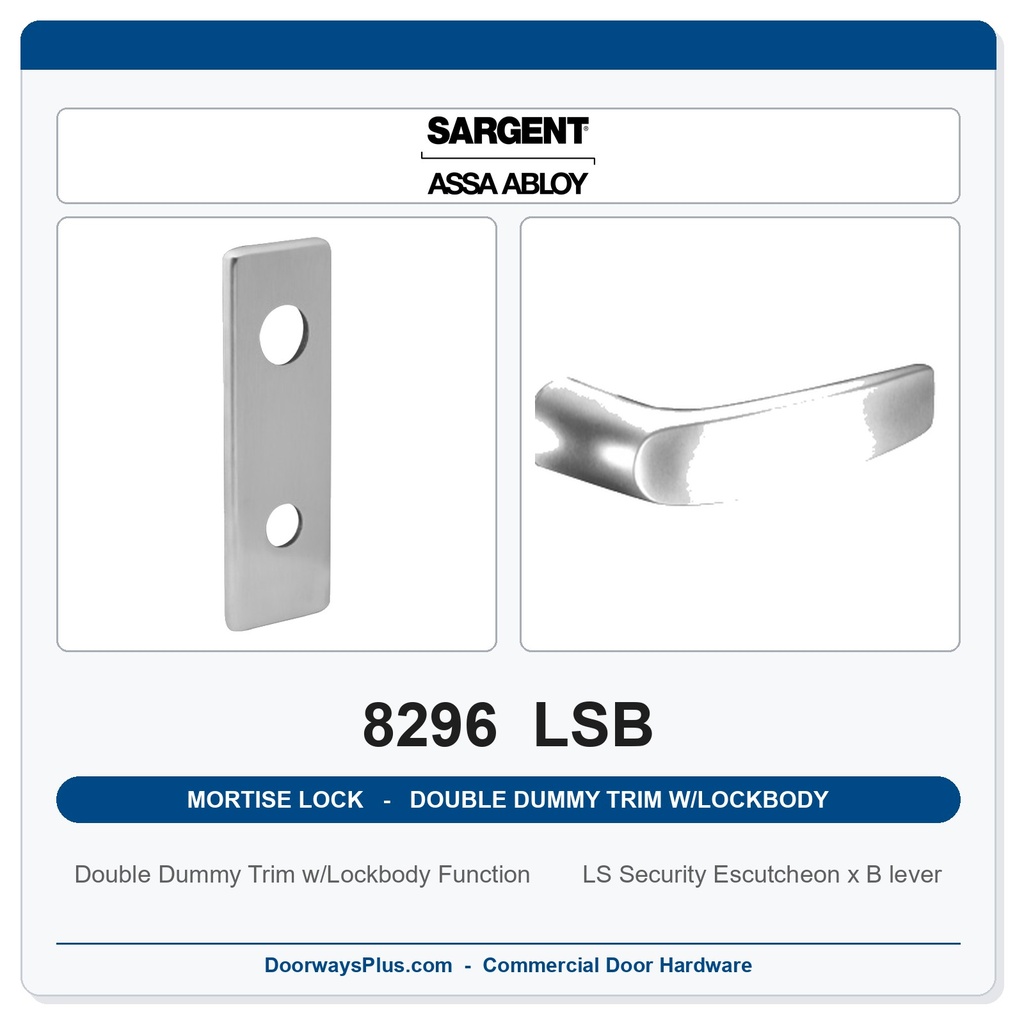

LSB pairs the LS Security Escutcheon (2-1/2" W x 7-3/4" H (64 x 197mm), forged security escutcheon; four spanner security screws are exposed on the inside trim) with the B lever (5" (127mm) long, +/- 1-5/8" (41mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose.

• Carrier: LS Security Escutcheon, 2-1/2" W x 7-3/4" H (64 x 197mm) (forged security escutcheon; four spanner security screws are exposed on the inside trim)
• Lever: B lever -- 5" (127mm) long, +/- 1-5/8" (41mm) return
• Handing: Ordered handed as our standard practice; specify LH, RH, LHR or RHR when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. All lever height (+/- 1/16") measurements represent total distance from door face.
• Security trim: Forged security escutcheon; (4) spanner security screws are exposed on inside trim standard.

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

This trim is ordered handed -- specify LH, RH, LHR or RHR when ordering. Here we order escutcheon trim handed as a safeguard, so the hand is never in question when the lock reaches the job.
