Sargent 8294 OA Trim Mortise Double Dummy Trim
Built for openings that are expected to outlast several tenancies.
The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Double Dummy Trim function with OA trim -- the A lever carried on the O Rose.
Double Dummy Trim Function
How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:
- The Lever Does Not Turn: Trim on both sides are always rigid — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
- A Pull, Not a Lock: Trim only used as door pull — there is no lock mechanism of any kind here -- the trim mounts to the door and serves as a handle.
- Recommended for the Inactive Leaf of a Pair: Recommended for double door applications on the inactive door, use template #4298, to accept latchbolt from active door — Sargent recommends this one on the leaf that stays shut, with the door prepped to template 4298 so it can receive the latchbolt from the active leaf.
- How the Lever Mounts: Note: Lever not surface mounted — the lever fastens through the door rather than sitting on its face.
OA Trim Design

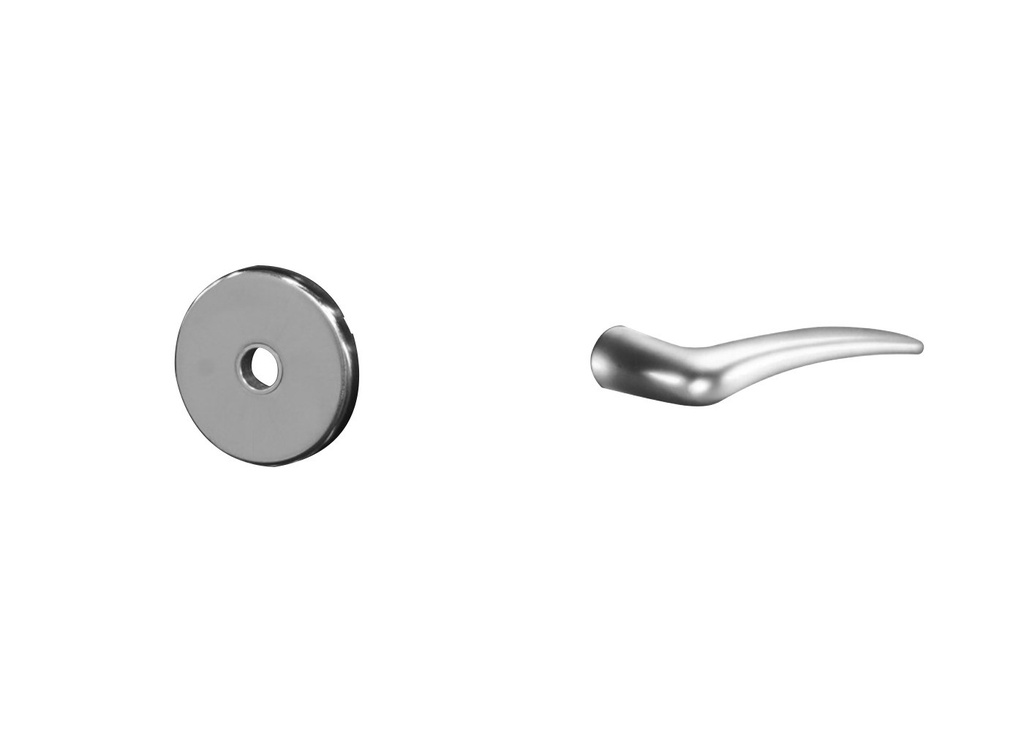

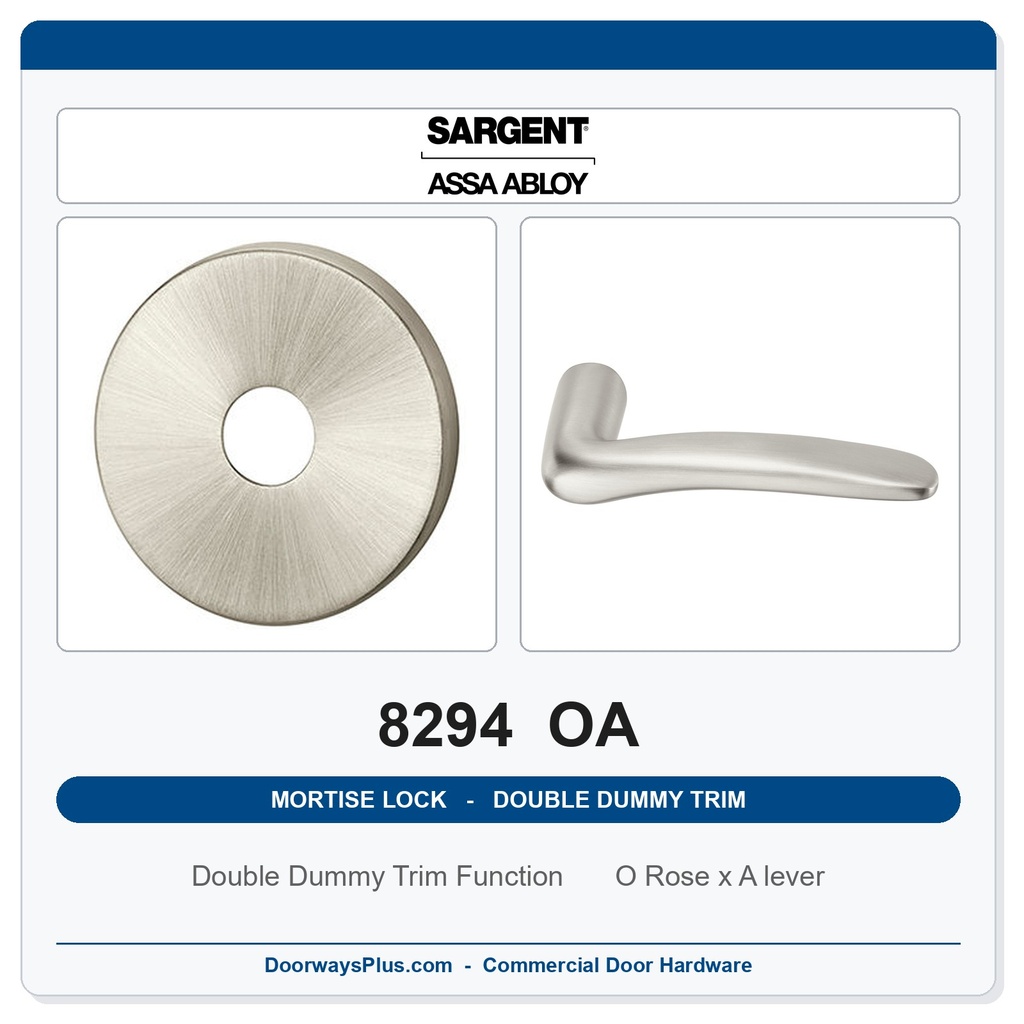

OA pairs the O Rose (2-3/4" (70mm), round) with the A lever (5" (127mm) long, +/- 1-15/16" (49mm) return). The carrier is a rose -- a compact plate around the lever, a different part from an escutcheon.
- Carrier: O Rose, 2-3/4" (70mm) (round)
- Lever: A lever -- 5" (127mm) long, +/- 1-15/16" (49mm) return
- Handing: Handed trim; specify LH, RH, LHR or RHR when ordering.
- Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. All lever height (+/- 1/16") measurements represent total distance from door face.
Key Product Features
- ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
Technical Specifications
| Series | Sargent 8200 Series Mortise Lock |
| Function | 8294 - Double Dummy Trim |
| ANSI/BHMA function | Sargent lists no ANSI/BHMA number for this function |
| Trim | OA (O Rose x A lever) |
| Carrier type | Rose |
| Carrier size | 2-3/4" (70mm) |
| Lever | A lever -- 5" (127mm) long, +/- 1-15/16" (49mm) return |
| Trim handing | Handed -- specify LH / RH / LHR / RHR when ordering |
| Grade | Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. |
| Door thickness | For Doors 1-3/4" (44mm) thick standard. |
| Door thickness range | We list these for 1-3/4" (44mm) doors, the Sargent standard. Other door thicknesses are quoted on request -- see Ordering below. |
| Accessibility | Complies with American Disability Act; Consult local authorities. |
| Building standard | Meets BOMA International 4.13.8. |
| Brand | Sargent |
| Lead time | Factory order: 3-4 weeks |
Ordering & Installation
We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.
This trim is handed -- specify LH, RH, LHR or RHR when ordering. Here the A lever is a handed lever -- a left-hand lever will not work on a right-hand door.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Sargent |
| Trim Design | OA |
| Series | Sargent - 8200 Series |
