Sargent 8293 WTE Trim Mortise Single Dummy Trim
For inactive leaves and pull-side faces that still have to look like the rest of the job.
The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Single Dummy Trim function with WTE trim -- the E lever carried on the WT Heavy Wrought Escutcheon.
Single Dummy Trim Function
How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:
- The Lever Does Not Turn: Trim on inside of door is always rigid — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
- A Pull, Not a Lock: Trim only used as door pull — there is no lock mechanism of any kind here -- the trim mounts to the door and serves as a handle.
- Also Suits the Inactive Leaf of a Pair: For double door applications, installed on the inactive door, use template #4298 to accept latchbolt from active door — on a pair of doors this goes on the leaf that stays shut, and the door is prepped to Sargent template 4298 so it can receive the latchbolt from the active leaf.
- Through-Bolted: Note: Lever is through-bolted — the lever fastens through the door, which is what holds a trim-only dummy solid.
WTE Trim Design

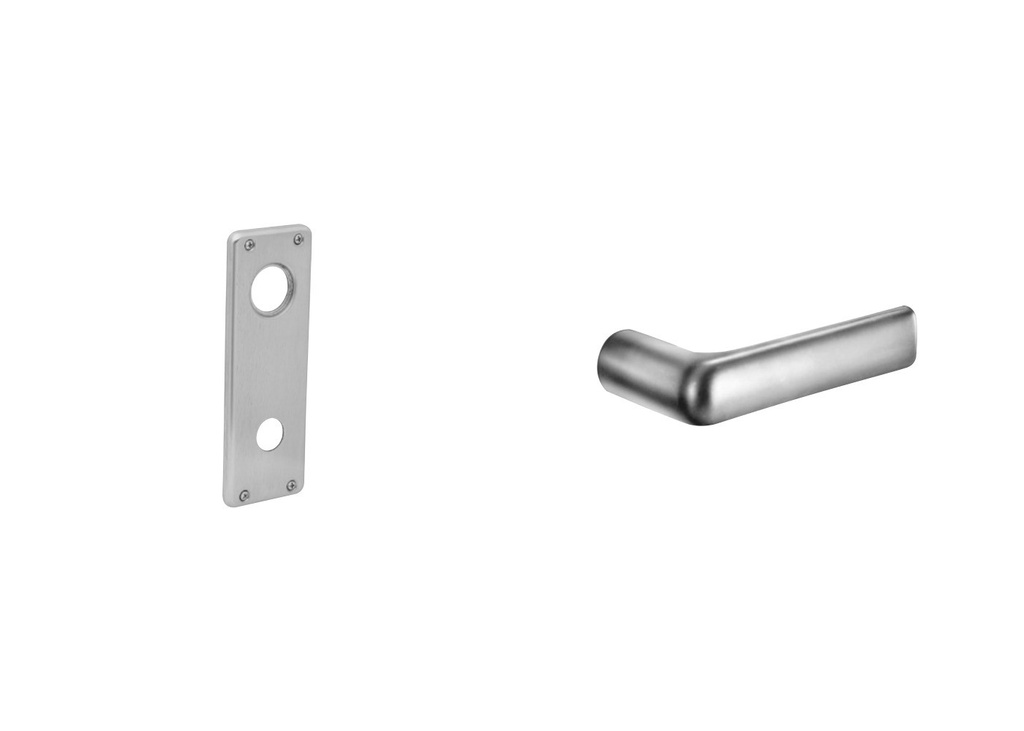

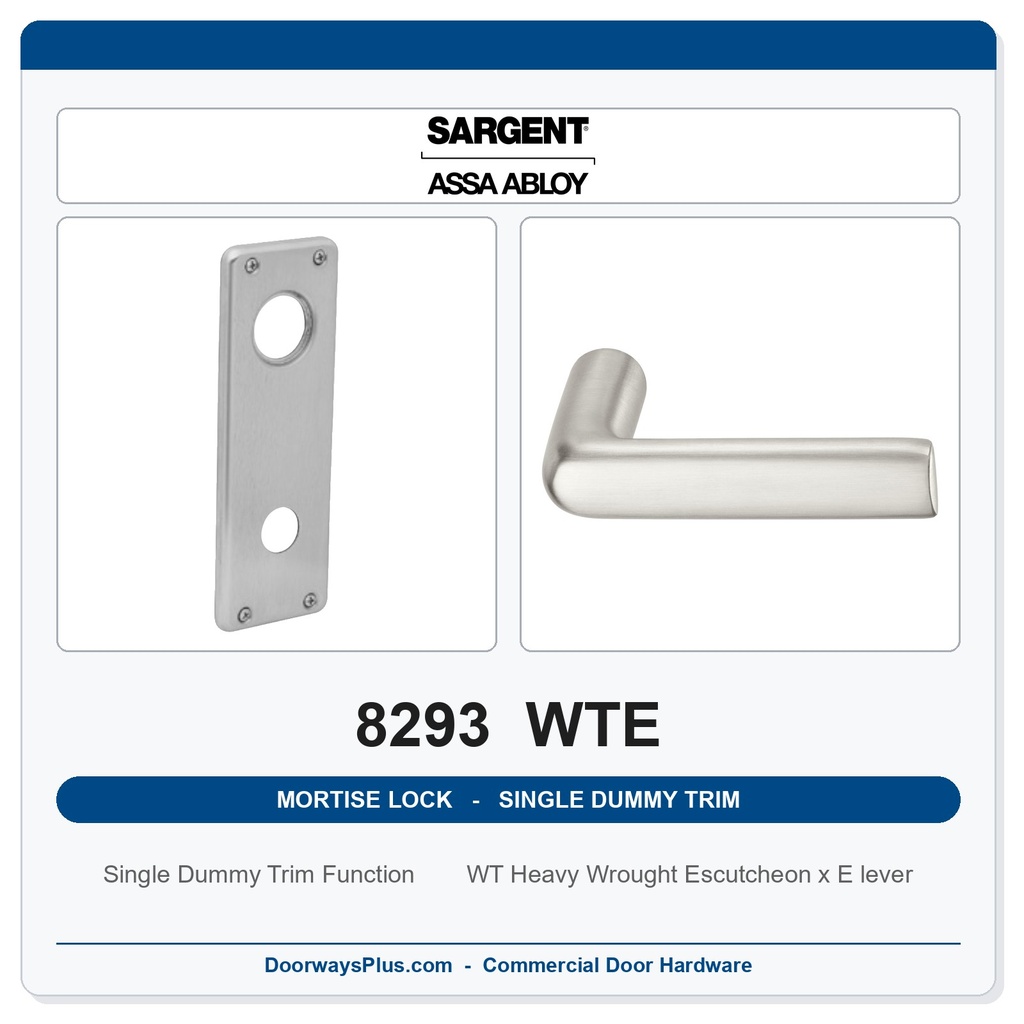

WTE pairs the WT Heavy Wrought Escutcheon (2-1/2" W x 7-3/8" H (65 x 187mm), heavy wrought escutcheon, surface mounted on both faces, with four exposed screws both inside and outside) with the E lever (4-1/2" (114mm) long, +/- 2" (51mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose.
- Carrier: WT Heavy Wrought Escutcheon, 2-1/2" W x 7-3/8" H (65 x 187mm) (heavy wrought escutcheon, surface mounted on both faces, with four exposed screws both inside and outside)
- Lever: E lever -- 4-1/2" (114mm) long, +/- 2" (51mm) return
- Handing: Ordered handed as our standard practice; specify LH, RH, LHR or RHR when ordering.
- Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. All lever height (+/- 1/16") measurements represent total distance from door face.
Key Product Features
- ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
Technical Specifications
| Series | Sargent 8200 Series Mortise Lock |
| Function | 8293 - Single Dummy Trim |
| ANSI/BHMA function | Sargent lists no ANSI/BHMA number for this function |
| Trim | WTE (WT Heavy Wrought Escutcheon x E lever) |
| Carrier type | Escutcheon |
| Carrier size | 2-1/2" W x 7-3/8" H (65 x 187mm) |
| Lever | E lever -- 4-1/2" (114mm) long, +/- 2" (51mm) return |
| Trim handing | Ordered handed as our standard practice -- specify LH / RH / LHR / RHR |
| Grade | Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. |
| Door thickness | For Doors 1-3/4" (44mm) thick standard. |
| Door thickness range | We list these for 1-3/4" (44mm) doors, the Sargent standard. Other door thicknesses are quoted on request -- see Ordering below. |
| Accessibility | Complies with American Disability Act; Consult local authorities. |
| Building standard | Meets BOMA International 4.13.8. |
| Brand | Sargent |
| Lead time | Factory order: 3-4 weeks |
Ordering & Installation
We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.
This trim is ordered handed -- specify LH, RH, LHR or RHR when ordering. Here we order escutcheon trim handed as a safeguard, so the hand is never in question when the lock reaches the job.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Sargent |
| Trim Design | WTE |
| Series | Sargent - 8200 Series |
