Sargent 8293 OJ Trim Mortise Single Dummy Trim
Fixed trim for doors that need the look and feel of the 8200 series without a lock.
The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Single Dummy Trim function with OJ trim -- the J lever carried on the O Rose.
Single Dummy Trim Function
How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:
- The Lever Does Not Turn: Trim on inside of door is always rigid — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
- A Pull, Not a Lock: Trim only used as door pull — there is no lock mechanism of any kind here -- the trim mounts to the door and serves as a handle.
- Also Suits the Inactive Leaf of a Pair: For double door applications, installed on the inactive door, use template #4298 to accept latchbolt from active door — on a pair of doors this goes on the leaf that stays shut, and the door is prepped to Sargent template 4298 so it can receive the latchbolt from the active leaf.
- Through-Bolted: Note: Lever is through-bolted — the lever fastens through the door, which is what holds a trim-only dummy solid.
OJ Trim Design

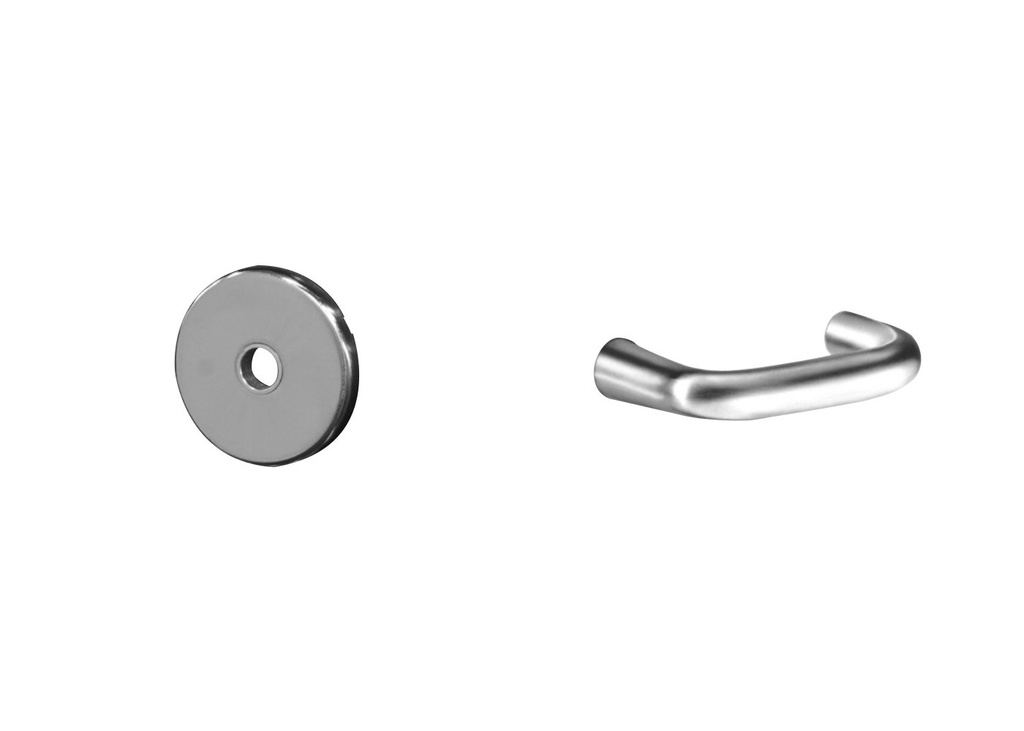

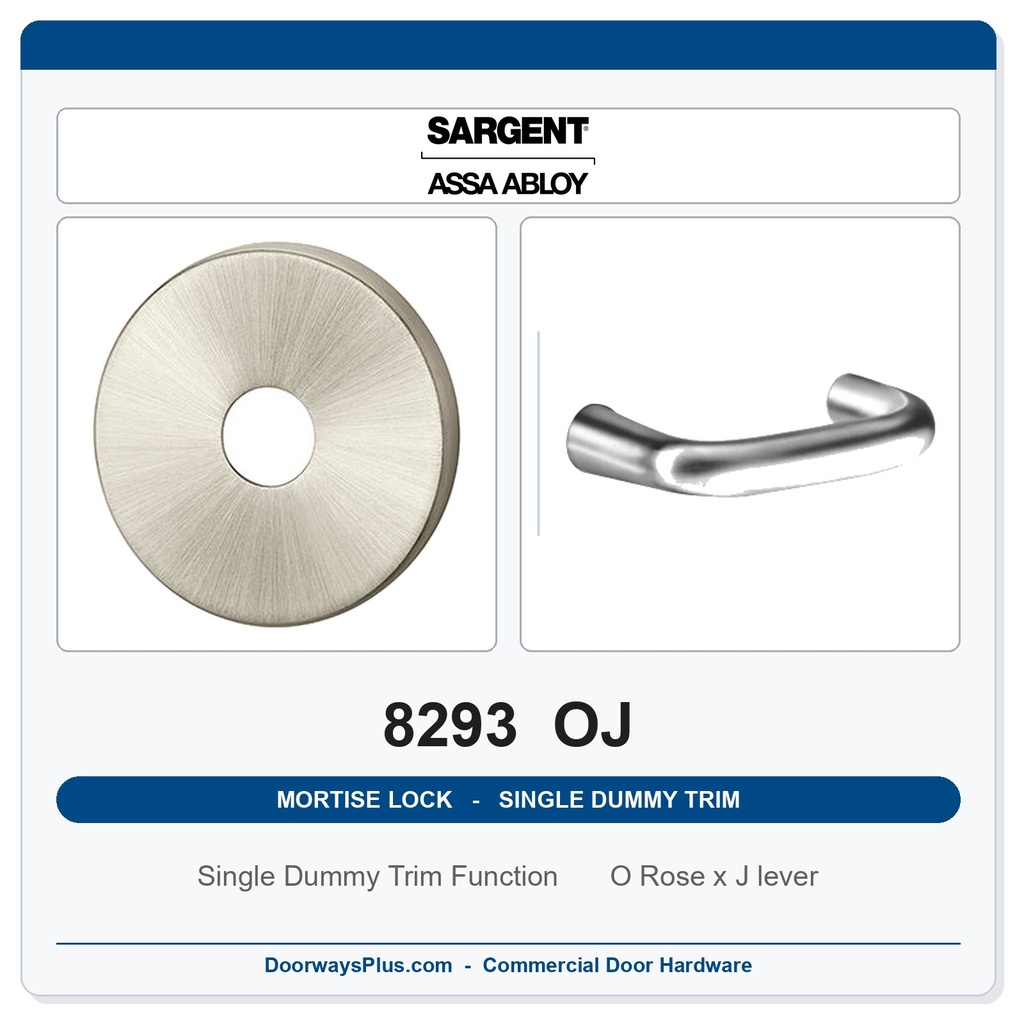

OJ pairs the O Rose (2-3/4" (70mm), round) with the J lever (5-1/4" (133mm) long, +/- 5/16" (8mm) return). The carrier is a rose -- a compact plate around the lever, a different part from an escutcheon.
- Carrier: O Rose, 2-3/4" (70mm) (round)
- Lever: J lever -- 5-1/4" (133mm) long, +/- 5/16" (8mm) return
- Handing: Non-handed; no handing designation is required when ordering.
- Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. Lever designs J, L and P have lever returns within 1/2" (13mm) or less of door face and meet California State Reference Fire Code. All lever height (+/- 1/16") measurements represent total distance from door face.
Key Product Features
- ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
Technical Specifications
| Series | Sargent 8200 Series Mortise Lock |
| Function | 8293 - Single Dummy Trim |
| ANSI/BHMA function | Sargent lists no ANSI/BHMA number for this function |
| Trim | OJ (O Rose x J lever) |
| Carrier type | Rose |
| Carrier size | 2-3/4" (70mm) |
| Lever | J lever -- 5-1/4" (133mm) long, +/- 5/16" (8mm) return |
| Trim handing | Non-handed |
| Grade | Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. |
| Door thickness | For Doors 1-3/4" (44mm) thick standard. |
| Door thickness range | We list these for 1-3/4" (44mm) doors, the Sargent standard. Other door thicknesses are quoted on request -- see Ordering below. |
| Accessibility | Complies with American Disability Act; Consult local authorities. |
| Building standard | Meets BOMA International 4.13.8. |
| Brand | Sargent |
| Lead time | Factory order: 3-4 weeks |
Ordering & Installation
We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.
This trim is non-handed; no handing designation is required.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | Sargent |
| Trim Design | OJ |
| Series | Sargent - 8200 Series |
