Sargent 8266 LW1J Trim Mortise Privacy Latchset with Deadbolt

For doors opened thousands of times a year that still have to feel solid.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Privacy Latchset with Deadbolt function (ANSI/BHMA F19) with LW1J trim -- the J lever carried on the LW1 Escutcheon.

Privacy Latchset with Deadbolt Function (ANSI/BHMA F19)

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Outside Lever Works Until the Deadbolt Is Thrown: Trim outside retracts latchbolt except when deadbolt is projected — the outside lever retracts the latch normally, and stops the moment the deadbolt is projected.
• Life-Safety Free Egress -- and the Outside Trim Unlocks With It: Trim inside retracts both latchbolt and deadbolt simultaneously, unlocking the outside trim — one motion of the inside lever pulls both bolts together, and that same motion also unlocks the outside lever, so the opening does not re-secure itself behind whoever left.
• Emergency Release from the Outside: Emergency Release retracts and projects deadbolt — by coin, screw driver or Emergency key (14-0057) ordered separately — from the corridor side a coin or screwdriver turns the slotted release, which withdraws the deadbolt and can throw it again, so a locked bathroom or bedroom can be opened without a cylinder anywhere on the door; Sargent's 14-0057 emergency tool does the same job and is ordered separately.
• Deadbolt Turned by Hand Inside: Thumbturn retracts and projects deadbolt — the thumbturn on the inside face throws the deadbolt and withdraws it again.

LW1J Trim Design

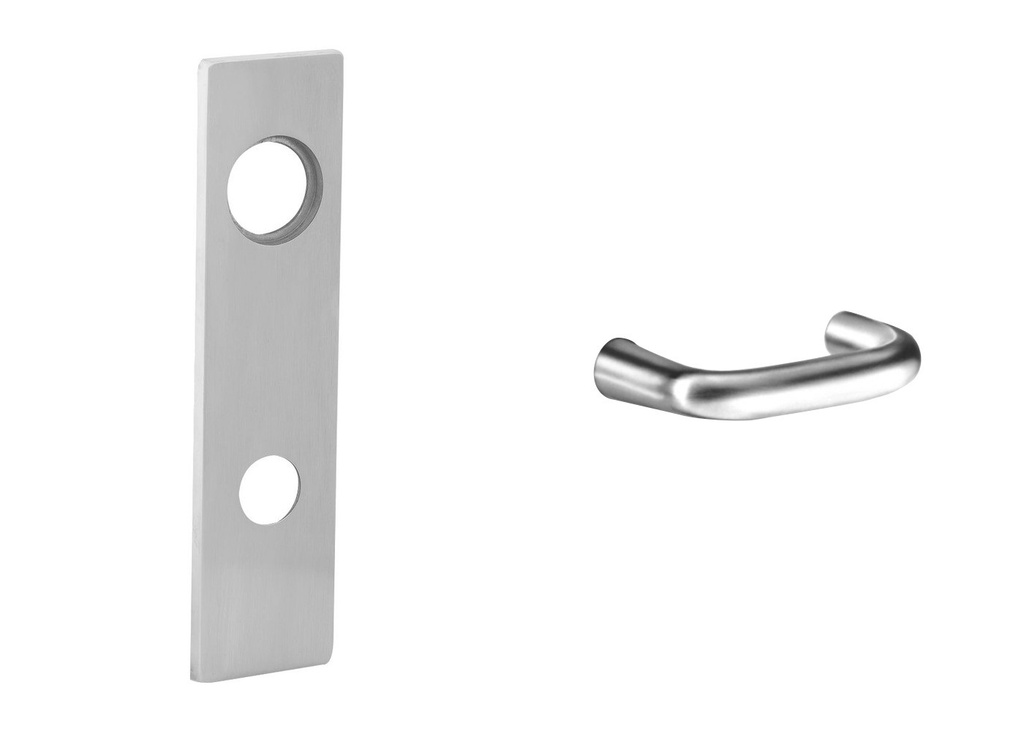

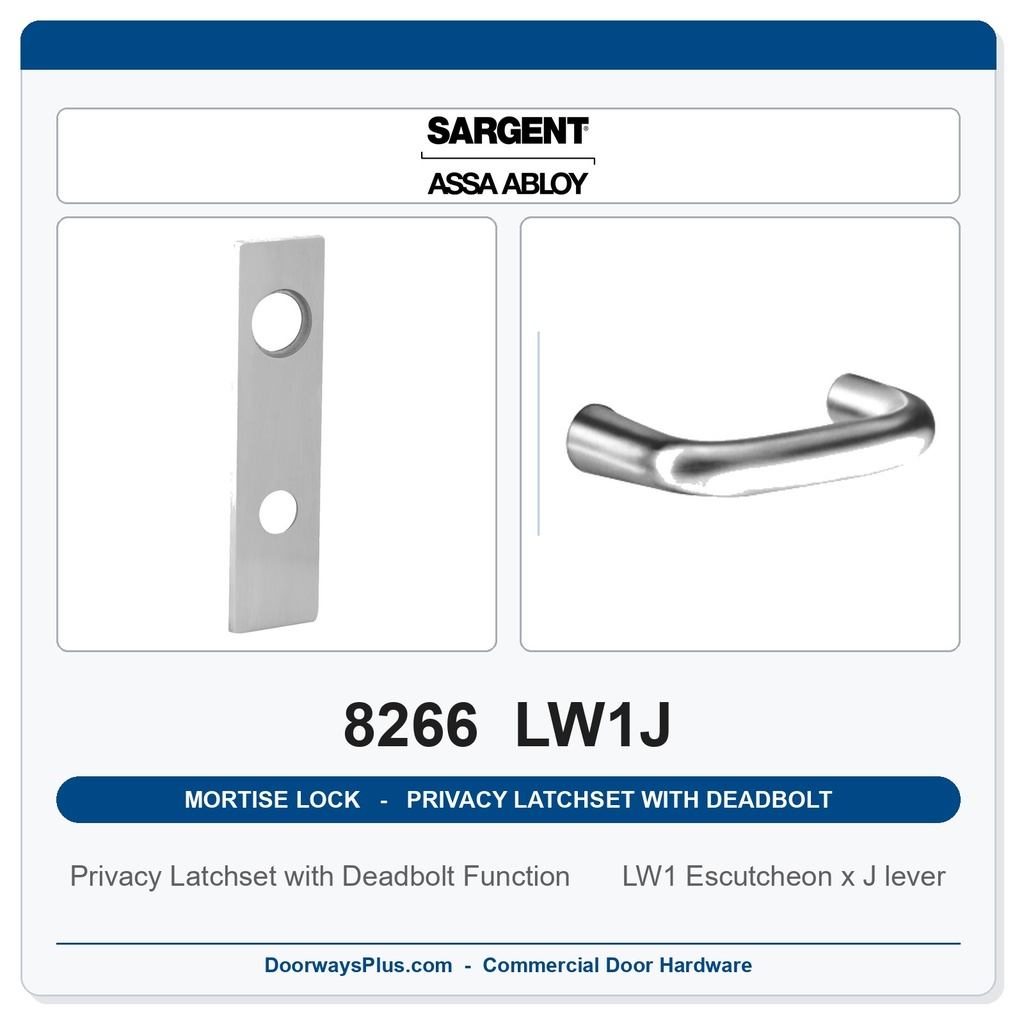

LW1J pairs the LW1 Escutcheon (2" W x 8" H (51 x 203mm), wrought escutcheon with two exposed screws on the inside trim) with the J lever (5-1/4" (133mm) long, +/- 5/16" (8mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose.

• Carrier: LW1 Escutcheon, 2" W x 8" H (51 x 203mm) (wrought escutcheon with two exposed screws on the inside trim)
• Lever: J lever -- 5-1/4" (133mm) long, +/- 5/16" (8mm) return
• Handing: Ordered handed as our standard practice; specify LH, RH, LHR or RHR when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. Lever designs J, L and P have lever returns within 1/2" (13mm) or less of door face and meet California State Reference Fire Code. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

This trim is ordered handed -- specify LH, RH, LHR or RHR when ordering. Here we order escutcheon trim handed as a safeguard, so the hand is never in question when the lock reaches the job.
