Sargent 8265 TEY Trim Mortise Privacy Latchset

For doors opened thousands of times a year that still have to feel solid.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Privacy Latchset function (ANSI/BHMA F22) with TEY trim -- the Y Yarmouth lever carried on the TE Traditional Escutcheon.

Privacy Latchset Function (ANSI/BHMA F22)

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Outside Lever Works Until the Thumbturn Locks It: Trim outside retracts latchbolt except when locked by thumbturn — the outside lever retracts the latchbolt normally, and stops when the thumbturn inside is turned to lock it.
• Life-Safety Free Egress -- and the Outside Trim Unlocks With It: Trim inside retracts latchbolt and unlocks outside trim — one motion of the inside lever retracts the latch and gets a person out, and that same motion releases the outside lever behind them.
• Emergency Release from the Outside: Emergency Release locks/unlocks trim outside-by coin, screwdriver or Emergency key (14-0057) ordered separately — from the corridor side a coin or screwdriver turns the slotted release, which both locks and frees the outside lever, so a locked bathroom or bedroom can be opened without a cylinder anywhere on the door; Sargent's 14-0057 emergency tool does the same job and is ordered separately.
• Privacy Set by Hand Inside: Thumbturn locks and unlocks trim outside — the person inside turns the thumbturn to lock the outside lever and turns it back to release it; there is no cylinder on either face of this lock.
• Closing the Door Releases the Privacy Lock: Closing the door will unlock outside trim — shutting the door unlocks the outside lever again, so the privacy setting is made from the inside with the door already closed.

TEY Trim Design

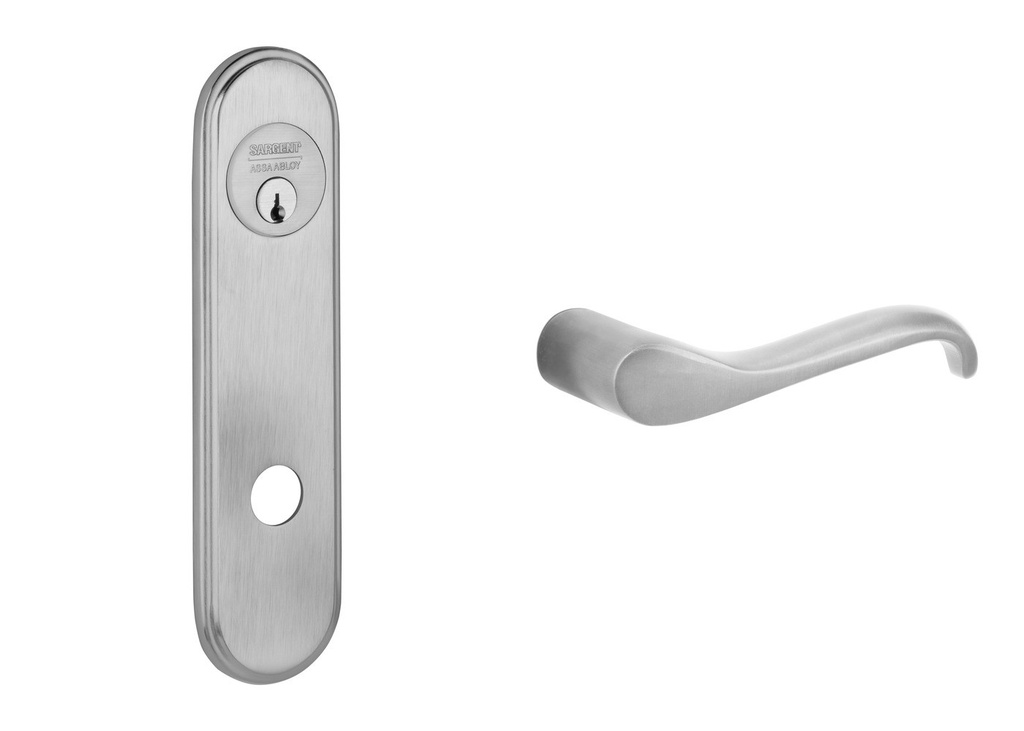

TEY pairs the TE Traditional Escutcheon (2" W x 7-7/8" H (51 x 200mm), Coastal Series, oval-ended) with the Y Yarmouth lever (5" (127mm) long, +/- 1-7/8" (47mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose.

• Carrier: TE Traditional Escutcheon, 2" W x 7-7/8" H (51 x 200mm) (Coastal Series, oval-ended)
• Lever: Y Yarmouth lever -- 5" (127mm) long, +/- 1-7/8" (47mm) return
• Handing: Handed trim; specify LH, RH, LHR or RHR when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Levers are solid cast brass. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

This trim is handed -- specify LH, RH, LHR or RHR when ordering. Here the Y Yarmouth lever is a handed lever -- a left-hand lever will not work on a right-hand door, though the lockbody itself re-hands in the field; we order escutcheon trim handed regardless, so the hand is never in question when the lock reaches the job.
