Sargent 8265 EP Trim Mortise Privacy Latchset

Chosen by specifiers who would rather over-build an opening than revisit it.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Privacy Latchset function (ANSI/BHMA F22) with EP trim -- the P lever carried on the E Rose.

Privacy Latchset Function (ANSI/BHMA F22)

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Outside Lever Works Until the Thumbturn Locks It: Trim outside retracts latchbolt except when locked by thumbturn — the outside lever retracts the latchbolt normally, and stops when the thumbturn inside is turned to lock it.
• Life-Safety Free Egress -- and the Outside Trim Unlocks With It: Trim inside retracts latchbolt and unlocks outside trim — one motion of the inside lever retracts the latch and gets a person out, and that same motion releases the outside lever behind them.
• Emergency Release from the Outside: Emergency Release locks/unlocks trim outside-by coin, screwdriver or Emergency key (14-0057) ordered separately — from the corridor side a coin or screwdriver turns the slotted release, which both locks and frees the outside lever, so a locked bathroom or bedroom can be opened without a cylinder anywhere on the door; Sargent's 14-0057 emergency tool does the same job and is ordered separately.
• Privacy Set by Hand Inside: Thumbturn locks and unlocks trim outside — the person inside turns the thumbturn to lock the outside lever and turns it back to release it; there is no cylinder on either face of this lock.
• Closing the Door Releases the Privacy Lock: Closing the door will unlock outside trim — shutting the door unlocks the outside lever again, so the privacy setting is made from the inside with the door already closed.

EP Trim Design

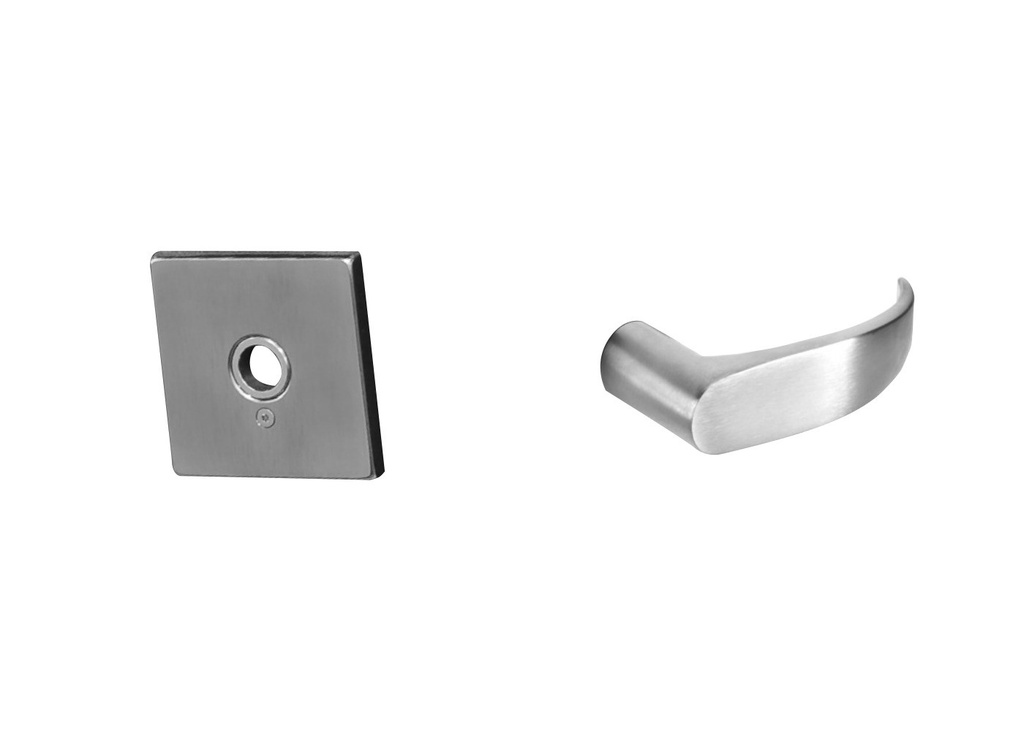

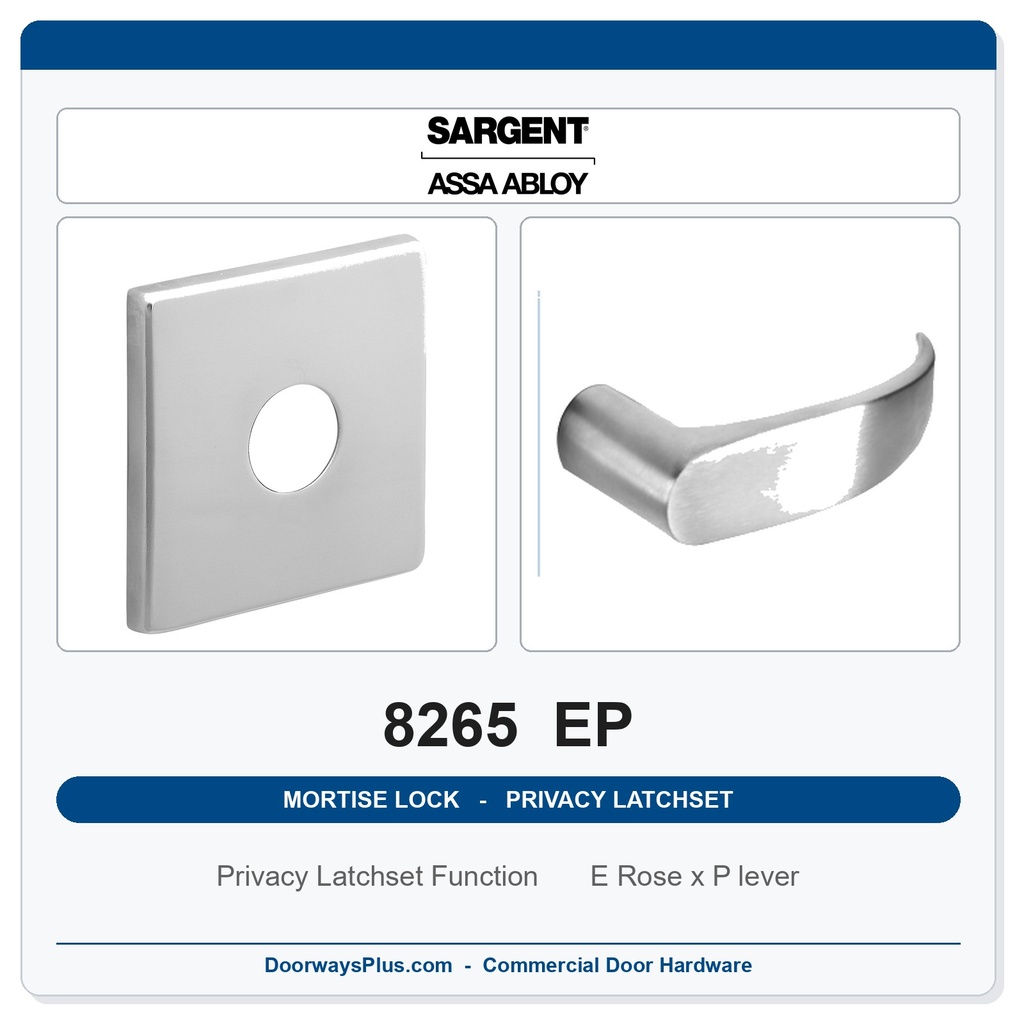

EP pairs the E Rose (3-1/16" (78mm), square plate) with the P lever (5-1/2" (140mm) long, +/- 5/16" (8mm) return). The carrier is a rose -- a compact plate around the lever, a different part from an escutcheon.

• Carrier: E Rose, 3-1/16" (78mm) (square plate)
• Lever: P lever -- 5-1/2" (140mm) long, +/- 5/16" (8mm) return
• Handing: Non-handed; no handing designation is required when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. Lever designs J, L and P have lever returns within 1/2" (13mm) or less of door face and meet California State Reference Fire Code. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

This trim is non-handed; no handing designation is required.
