Sargent 8250 WTF Trim Hotel Guest Function Mortise Lockset

Specified where a Grade 1 mortise lock has to survive daily institutional traffic.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Hotel Guest function (ANSI/BHMA F15) with WTF trim -- the F lever carried on the WT Heavy Wrought Escutcheon.

Hotel Guest Function (ANSI/BHMA F15)

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Needs the Hotel Cylinder: Hotel Cylinder (50 Function) Required (Standard & Emergency Keys) — this function requires the hotel cylinder, which is what carries both the standard key and the emergency key; an ordinary cylinder will not work it.
• The Standard Key Cannot Touch the Deadbolt: Standard Key retracts latchbolt only, will not retract or project deadbolt — the standard key retracts the latchbolt only -- it can neither throw nor withdraw the deadbolt, so once the deadbolt is thrown the standard key will not open the door.
• The Emergency Key Overrides It: Emergency Key (P/N 7268EMK ordered separately) will retract latchbolt & deadbolt and also project deadbolt — the emergency key withdraws both bolts and can also throw the deadbolt, so it opens a door whose deadbolt has been projected. It is a separate part number and is not supplied with the lock.
• Deadbolt Turned by Hand Inside: Thumbturn retracts & projects deadbolt — the deadbolt is thrown and withdrawn by hand at the thumbturn, with no key needed to work it.
• Life-Safety Free Egress: Trim inside retracts latchbolt & deadbolt simultaneously — one motion of the inside lever pulls both bolts together, so a person can leave without operating anything else first.
• Outside Lever Is Locked at All Times: Trim outside is always locked — the outside lever never retracts anything on its own; from outside, the key is what operates the lock.
• Anti-Shim Protection: Auxiliary deadlatch — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.
• Key Systems: Available with Conventional, LFIC (60- & 63-), Degree (60-, 63-, & 64-) and Keso (82- & F1-82-) key systems — we list this lock online with the keyways shown in the options above. Sargent also builds it for the Degree and Keso systems, which we do not list -- email sales@doorwaysplus.com and we will quote them.
• What the Indicator Reports: Note: Indicator shows deadbolt position only — where the indicator option is specified on this function, it reports the position of the deadbolt and nothing else.

WTF Trim Design

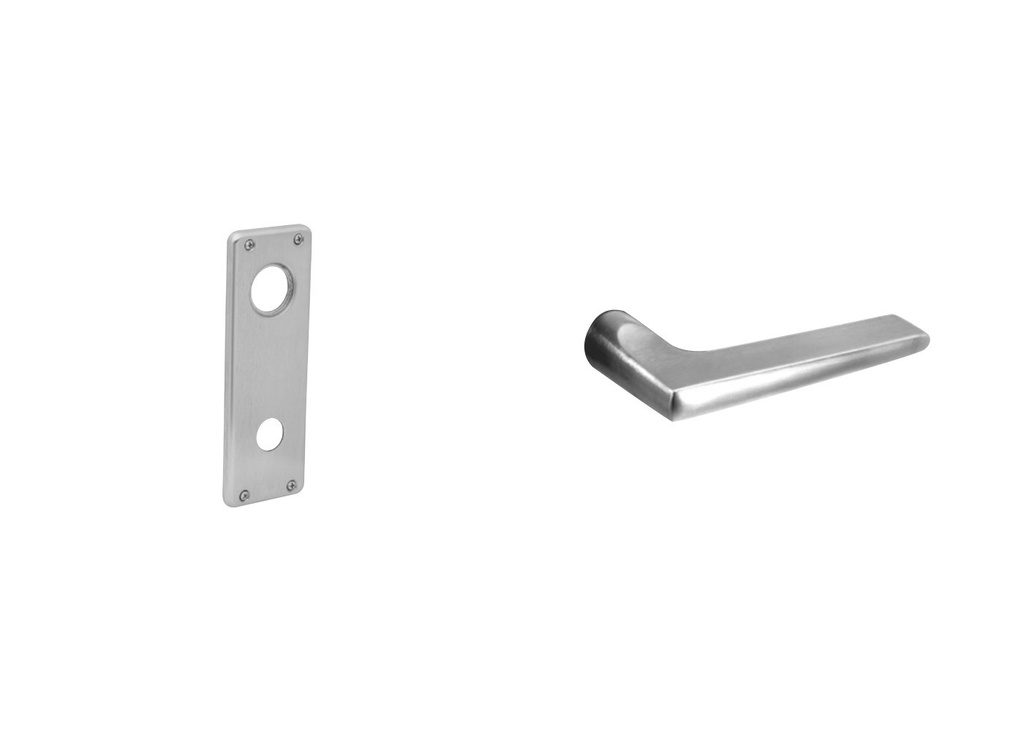

WTF pairs the WT Heavy Wrought Escutcheon (2-1/2" W x 7-3/8" H (65 x 187mm), heavy wrought escutcheon, surface mounted on both faces, with four exposed screws both inside and outside) with the F lever (4-1/2" (114mm) long, +/- 1-15/16" (49mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose.

• Carrier: WT Heavy Wrought Escutcheon, 2-1/2" W x 7-3/8" H (65 x 187mm) (heavy wrought escutcheon, surface mounted on both faces, with four exposed screws both inside and outside)
• Lever: F lever -- 4-1/2" (114mm) long, +/- 1-15/16" (49mm) return
• Handing: Ordered handed as our standard practice; specify LH, RH, LHR or RHR when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Auxiliary deadlatch: Auxiliary Deadlatch is stainless steel and non-handed.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Keying: Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. Cylinder and keyway options listed online are LC (less cylinder), LA keyway, 60 (LFIC less core). Sargent catalogues more of both -- if you need a finish, cylinder or keyway that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

Keys supplied: Two, nickel silver (control key or emergency key must be ordered when required).

This trim is ordered handed -- specify LH, RH, LHR or RHR when ordering. Here we order escutcheon trim handed as a safeguard, so the hand is never in question when the lock reaches the job.
