Sargent 8242 TRS Trim Classroom Security Intruder Latchbolt Function Mortise Lockset

For doors opened thousands of times a year that still have to feel solid.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Classroom Security Intruder Latchbolt function with TRS trim -- the S Sanibel lever carried on the TR Traditional Rose.

Classroom Security Intruder Latchbolt Function

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Handed Function -- Not Field Reversible: Handed function; handing must be specified. This function is NOT field reversible for handing. — this function is built to hand and cannot be re-handed on site, unlike the rest of the 8200 series whose lock bodies are field reversible; specify the hand when ordering.
• Inside Key Locks Only: Key inside only locks outside trim (does not unlock) — from inside, the key can lock the outside lever but cannot release it.
• Outside Key Locks and Unlocks: Key outside locks and unlocks outside trim — from outside, the key locks the outside lever and releases it again.
• Key outside retracts latchbolt
• Outside Lever Works Until It Is Locked: Trim outside retracts latchbolt, except when locked — the outside lever retracts the latchbolt normally, and stops the moment the lock is set against it.
• Life-Safety Free Egress: Trim inside always retracts latchbolt — the inside lever is never locked, so a single motion always gets a person out.
• Anti-Shim Protection: Auxiliary deadlatch — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.

TRS Trim Design

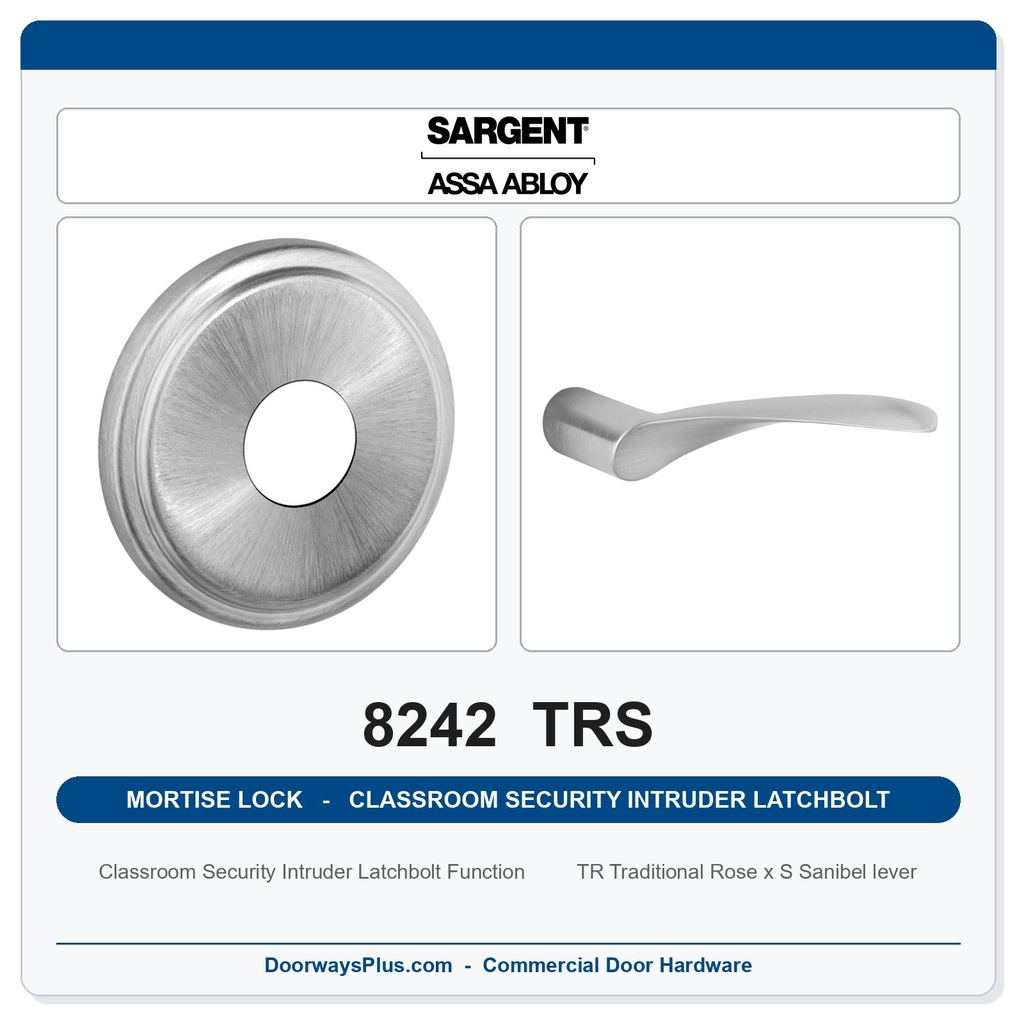

TRS pairs the TR Traditional Rose (2-3/16" (56mm), dual radii edge) with the S Sanibel lever (5" (127mm) long, +/- 2-1/2" (63mm) return). The carrier is a rose -- a compact plate around the lever, a different part from an escutcheon.

• Carrier: TR Traditional Rose, 2-3/16" (56mm) (dual radii edge)
• Lever: S Sanibel lever -- 5" (127mm) long, +/- 2-1/2" (63mm) return
• Handing: Handed function; handing must be specified when ordering, and this function is not field reversible.
• Accessibility: All levers meet ADA compliance for national codes. Levers are solid cast brass. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Auxiliary deadlatch: Auxiliary Deadlatch is stainless steel and non-handed.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Keying: Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. Cylinder and keyway options listed online are LC (less cylinder), LA keyway, 60 (LFIC less core), 70 (SFIC less core). Sargent catalogues more of both -- if you need a finish, cylinder or keyway that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

Keys supplied: Two, nickel silver (control key or emergency key must be ordered when required).

This trim is handed -- specify LH, RH, LHR or RHR when ordering. Here the S Sanibel lever is a handed lever -- a left-hand lever will not work on a right-hand door, and this function's lockbody is NOT field reversible either.

This function is keyed on both faces and the price includes two cylinders. Choosing LC (less cylinder) deducts for both.
