Sargent 8237 WTW Trim Classroom Function Mortise Lockset
Chosen by specifiers who would rather over-build an opening than revisit it.
The Sargent 8200 Series is an extra-heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims This listing is the Classroom function (ANSI/BHMA F05) with WTW trim -- the W lever carried on the WT Heavy Wrought Escutcheon.
Classroom Function (ANSI/BHMA F05)
How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:
- Key Control: Key outside retracts latchbolt, also locks & unlocks outside trim — the key does two jobs at this opening -- it retracts the latch for entry, and it sets whether the outside lever is locked or free.
- Life-Safety Free Egress: Trim inside always retracts latchbolt — the inside lever is never locked, so a single motion always gets a person out.
- Anti-Shim Protection: Auxiliary deadlatch — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.
- Multi-Function Lockbody: A multi-function 8200/7800 lockbody — one lockbody covers nine functions across the series, so a single case is stocked instead of nine.
WTW Trim Design

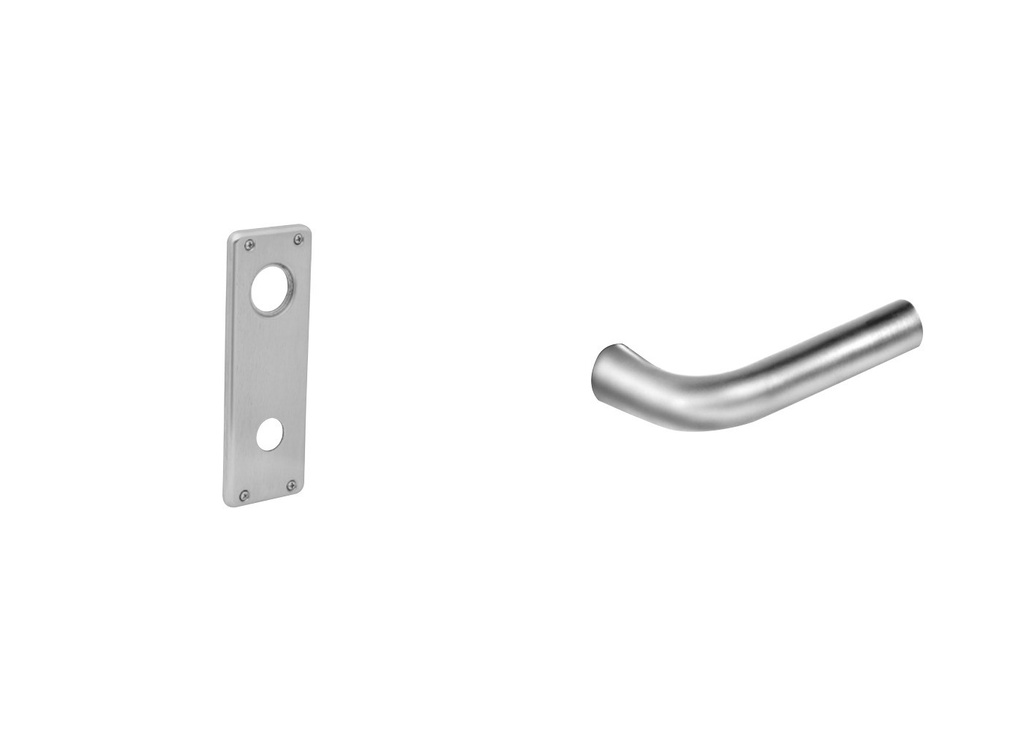

WTW pairs the WT Heavy Wrought Escutcheon (2-1/2" W x 7-3/8" H (65 x 187mm), heavy wrought escutcheon, surface mounted both inside and outside, with four exposed screws) with the W lever (4-1/2" (114mm) long, +/- 2-1/16" (52mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose and a different door preparation.
- Carrier: WT Heavy Wrought Escutcheon, 2-1/2" W x 7-3/8" H (65 x 187mm) (heavy wrought escutcheon, surface mounted both inside and outside, with four exposed screws)
- Lever: W lever -- 4-1/2" (114mm) long, +/- 2-1/16" (52mm) return
- Handing: Handed trim; specify LH, RH, LHR or RHR when ordering.
- Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. Lever designs J, L and P have lever returns within 1/2" (13mm) or less of door face and meet California State Reference Fire Code. All lever height (+/- 1/16") measurements represent total distance from door face.
- Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt
Key Product Features
- ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims
- Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148
- Lock case: Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
- Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks
- Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch
- Auxiliary deadlatch: Auxiliary Deadlatch is stainless steel and non-handed
- Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing
- Keying: Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway
- Warranty: Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody
Technical Specifications
| Series | Sargent 8200 Series Mortise Lock |
| Function | 8237 - Classroom |
| ANSI/BHMA function | F05 |
| Trim | WTW (WT Heavy Wrought Escutcheon x W lever) |
| Carrier type | Escutcheon |
| Carrier size | 2-1/2" W x 7-3/8" H (65 x 187mm) |
| Lever | W lever -- 4-1/2" (114mm) long, +/- 2-1/16" (52mm) return |
| Trim handing | Handed -- specify LH / RH / LHR / RHR when ordering |
| Grade | Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims |
| Cycle testing | Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148 |
| Lock case | Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109") |
| Hubs | Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks |
| Lever springs | Lever springs contained inside of the lock case for easier installation |
| Lever rotation | Easy operation. Only 30 degrees of lever rotation required to retract latchbolt |
| Backset | Backset 2-3/4" (70mm) only |
| Minimum stile | Stile: 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks |
| Door thickness | For Doors 1-3/4" (44mm) thick standard |
| Door thickness range | Versatile. Offered for door thicknesses ranging from 1-3/8" (35mm) to 6" (152mm) |
| Latchbolt | Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch |
| Auxiliary deadlatch | Auxiliary Deadlatch is stainless steel and non-handed |
| Outside front plate | Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1/4" (31mm) |
| Front | Front adjustable at any angle from flat to beveled 1/8" (3mm); field adjustable, beveled, armored front, with a .125 inch (3mm) thickness minimum |
| Inside front | 1/8" (.125") cold-rolled steel inside front holds lock securely in door |
| Door prep | Door Prep: ANSI/SDI A250.14 modified per template 7057 |
| Cylinder | Cylinder: Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")) |
| Cylinder certification | ANSI/BHMA A156.5, Grade 1; 6 pin; Fixed, Interchangeable, Disposable; Available with LFIC and SFIC |
| Interchangeable core note | LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements |
| Keys | Keys: Two, nickel silver (control key or emergency key must be ordered when required) |
| Keying | Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway |
| Security key systems | Security key systems available (Degree, Signature, Keso, Keso F1, & XC) |
| Fire rating | UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing |
| Accessibility | Complies with American Disability Act; Consult local authorities |
| Building standard | Meets BOMA International 4.13.8 |
| Warranty | Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody |
| Brand | Sargent |
| Lead time | Factory order: 3-4 weeks |
Ordering & Installation
Door Prep: ANSI/SDI A250.14 modified per template 7057 Backset 2-3/4" (70mm) only Stile: 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks
Keys: Two, nickel silver (control key or emergency key must be ordered when required) Security key systems available (Degree, Signature, Keso, Keso F1, & XC)
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Door Handing | LH or RH or RHR or LHR |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F05 - Classroom |
| Trim Design | WTW |
| Series | Sargent - 8200 Series |
