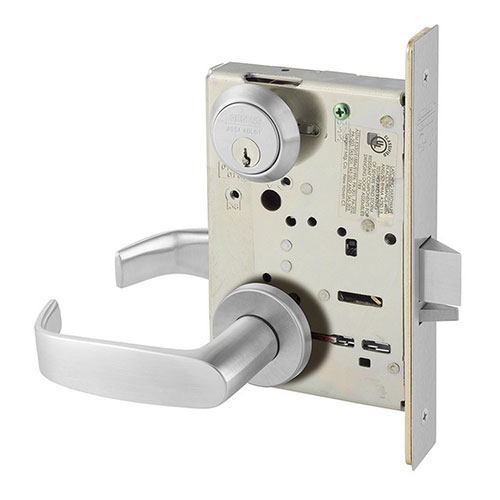

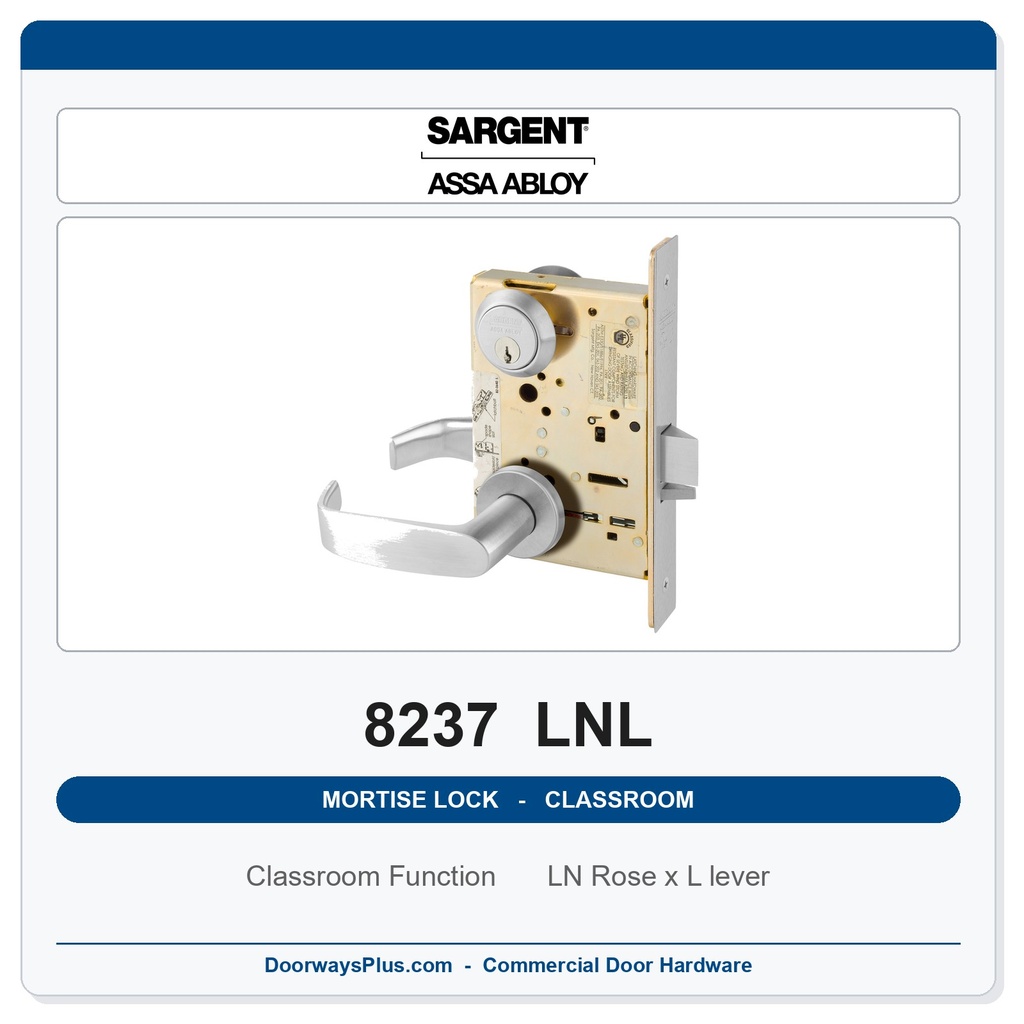

Sargent 8237 LNL Mortise Lockset – Classroom Function ANSI F05, LA Keyway

The Sargent 8237 LNL is a heavy-duty commercial mortise lockset from the Sargent 8200 Series, configured for the Classroom function ANSI F05 with LN rose trim and an L lever in the LA keyway. Designed for educational facilities, healthcare corridors, and institutional openings, this mortise lock delivers the robust security and operational reliability expected from one of the industry's most respected institutional-grade product lines. The 8200 Series is manufactured by Sargent Manufacturing Company, an ASSA ABLOY Group company, and is backed by ANSI/BHMA certification and a broad portfolio of certifications for commercial and institutional use.

ANSI F05 Classroom Function — What It Does

The ANSI F05 Classroom function (Sargent function code 37) is engineered specifically for classrooms and similar secured rooms. The outside lever is normally locked and can only be locked or unlocked by key from the outside — it cannot be toggled from the inside. The inside lever is always free for immediate egress, satisfying life-safety code requirements. This configuration allows a teacher or administrator to lock the door from the corridor with a key without re-entering the room, a critical capability during lockdown or security events. The inside lever always allows unrestricted exit.

Institutional Grade Features & Benefits

• ANSI/BHMA Certified: The 8200 Series meets ANSI A156.13, Series 1000, Grade 1 — the highest commercial standard for mortise locksets, ensuring long-term durability under heavy institutional traffic.
• Mortise Lockset Construction: Full mortise case design provides superior door-edge security compared to cylindrical or bored locks; standard 2-3/4" backset with ANSI/SDI A250.14 modified per template 7057 mortise cutout.
• LN Rose / L Lever Trim: The LN rose is Sargent's standard round trim escutcheon; the L lever is a commercial lever — a widely specified combination for institutional and educational environments.
• LA Keyway: The LA keyway designation identifies the cylinder keyway profile, supporting compatibility with standard Sargent key systems and master key programs for facility-wide key control.
• Classroom Lockdown Ready: Outside trim locks/unlocks by key from the corridor; inside trim always free — suited to classroom security planningegress.
• Broad Trim and Option Compatibility: The 8200 Series supports a wide range of lever designs (Studio Collection, Coastal Collection, and standard commercial levers), finishes, and optional electrical upgrades (electrified variants, MELR, NAC, RX monitoring) for future flexibility.
• MicroShield Antimicrobial Option Available: SG- prefix option available for high-touch surface environments such as schools and healthcare facilities.
• Status Indicator Compatible: The 8200 Series supports optional occupancy/privacy status indicators — useful for classrooms, nursing rooms, and meeting spaces requiring visual door-status confirmation.

Typical Applications

• K–12 and higher education classrooms
• Institutional and government facilities
• Healthcare corridors and exam rooms requiring keyed lockdown capability
• Commercial office suites where outside trim must remain key-controlled from outside

Technical Details

The Sargent 8237 LNL is a heavy-duty commercial mortise lockset configured for the Classroom Function — one of the most specified lock functions in K–12 schools, universities, and institutional facilities. Built on Sargent's proven 8200 Series mortise platform, this lockset delivers reliable, code-compliant security for classroom and educational occupancy doors. The LNL lever trim pairs with the LA keyway, providing a clean, institutional aesthetic with the security performance commercial openings demand.

What Is the Classroom Function?

The Classroom function ANSI F05 is designed specifically for school and institutional corridor doors. Here is how it works:

• Outside lever: Locked and unlocked by key from the outside — the lever is rigid when locked and retracts the latch when unlocked.
• Inside lever: Always free — occupants can exit at any time without a key, satisfying life-safety egress requirements.
• Auxiliary deadlatch: Guards against latch manipulation (credit-carding).
• Key control: Locking and unlocking is managed entirely from the corridor side, keeping the room secured without requiring occupants to handle a key.

This function is the standard specification for most classroom corridor doors in public and private educational buildings and is compatible with ANSI/BHMA A156.13 Grade 1 mortise lockset requirements.

Key Benefits

• Grade 1 commercial mortise body — built for heavy-use institutional environments
• Classroom function ANSI F05 — industry-standard educational security; inside lever always free for egress
• LA keyway — Sargent proprietary keyway for controlled key distribution and master key system integration
• LNL lever trim — durable lever design suited for high-traffic institutional doors
• Auxiliary deadlatch — anti-manipulation protection against latch bypass
• Mortise lock body — fully contained chassis for superior long-term durability vs. cylindrical bored locks
• Master key compatible — integrates into Sargent key systems for facility-wide access management

Typical Applications

• K–12 school classroom corridor doors
• University and college classroom buildings
• Government and municipal office doors
• Healthcare facility staff access doors
• Institutional and correctional facility interior openings

Technical Details

Specifier and Purchasing Notes

The Sargent 8237 LNL is a commonly specified model for educational facility new construction and retrofit projects. The LA keyway is a Sargent-controlled proprietary keyway — verify your facility's existing key system keyway before ordering to ensure cylinder compatibility. If your project requires an alternate keyway (such as Schlage C or Sargent's LB, LD, or LE), contact us to confirm availability. For projects requiring comparable mortise locksets with alternative brand specifications, DoorwaysPlus can quote equivalent options from Accentra, Corbin Russwin, Hager, and PDQ — brands noted for stable product platforms and long-term parts availability.
