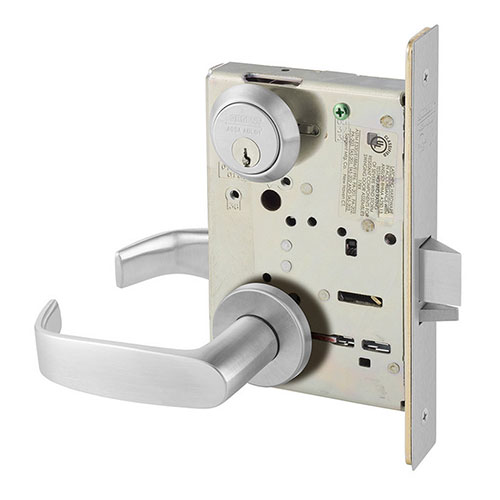

Sargent 8237 LNL Mortise Lockset – Classroom Function, LA Keyway

The Sargent 8237 LNL is a heavy-duty commercial mortise lockset configured for the Classroom Function — one of the most specified lock functions in K–12 schools, universities, and institutional facilities. Built on Sargent's proven 8200 Series mortise platform, this lockset delivers reliable, code-compliant security for classroom and educational occupancy doors. The LNL lever trim pairs with the LA keyway, providing a clean, institutional aesthetic with the security performance commercial openings demand.

What Is the Classroom Function?

The Classroom function (ANSI F84) is designed specifically for school and institutional corridor doors. Here is how it works:

• Outside lever: Locked and unlocked by key from the outside — the lever is rigid when locked and retracts the latch when unlocked.
• Inside lever: Always free — occupants can exit at any time without a key, satisfying life-safety egress requirements.
• Auxiliary deadlatch: Guards against latch manipulation (credit-carding).
• Key control: Locking and unlocking is managed entirely from the corridor side, keeping the room secured without requiring occupants to handle a key.

This function is the standard specification for most classroom corridor doors in public and private educational buildings and is compatible with ANSI/BHMA A156.13 Grade 1 mortise lockset requirements.

Key Benefits

• Grade 1 commercial mortise body — built for heavy-use institutional environments
• Classroom function (F84) — industry-standard educational security; inside lever always free for egress
• LA keyway — Sargent proprietary keyway for controlled key distribution and master key system integration
• LNL lever trim — durable lever design suited for high-traffic institutional doors
• Auxiliary deadlatch — anti-manipulation protection against latch bypass
• Mortise lock body — fully contained chassis for superior long-term durability vs. cylindrical bored locks
• Master key compatible — integrates into Sargent key systems for facility-wide access management

Typical Applications

• K–12 school classroom corridor doors
• University and college classroom buildings
• Government and municipal office doors
• Healthcare facility staff access doors
• Institutional and correctional facility interior openings

Technical Details

Specifier and Purchasing Notes

The Sargent 8237 LNL is a commonly specified model for educational facility new construction and retrofit projects. The LA keyway is a Sargent-controlled proprietary keyway — verify your facility's existing key system keyway before ordering to ensure cylinder compatibility. If your project requires an alternate keyway (such as Schlage C or Sargent's LB, LD, or LE), contact us to confirm availability. For projects requiring comparable mortise locksets with alternative brand specifications, DoorwaysPlus can quote equivalent options from Corbin Russwin, Hager, and PDQ — brands noted for stable product platforms and long-term parts availability.

The Sargent 8237 LNL is a top-tier Grade 1 Heavy-Duty Mortise Lockset specifically engineered for the rigorous demands of educational institutions, commercial offices, and high-traffic public buildings. As part of the world-class Sargent 8200 Series, this lockset is recognized as the industry benchmark for strength and durability, far exceeding ANSI/BHMA A156.13 standards for physical security. The 8237 Classroom Function (ANSI F05) provides essential security by allowing the exterior lever to be locked or unlocked only via a key, ensuring that faculty and staff maintain total control over room access.

Critical Classroom Function (ANSI F05) Security

The 8237 function is a vital component of facility security and lockdown preparedness. It is designed to provide robust perimeter control while never compromising life safety.

• Key-Controlled Access: The outside lever is locked or unlocked strictly by the exterior key. When locked, the lever remains rigid, preventing unauthorized entry.

• Instant Life Safety Egress: Regardless of the locking status of the exterior, the inside lever always allows for constant free egress, ensuring occupants can exit the room immediately in an emergency.

• Auxiliary Deadlatch: Includes a specialized deadlocking latch that prevents "shimming" or forced entry attempts when the door is closed.


Architectural LNL Trim Design

The LNL trim represents a perfect marriage of modern linear aesthetics and high-performance engineering.

• ADA Compliance: The L-Lever is ergonomically designed for ease of use, meeting all ADA accessibility codes and national safety requirements.

• Extreme Mechanical Life: Verified for over 14 million cycles—14 times the requirement for Grade 1 certification—ensuring the lowest total cost of ownership over decades of use.

• Lever Sag Prevention: Heavy-duty wrought steel hubs and high-carbon steel spring cartridges ensure the levers remain perfectly horizontal, maintaining a professional look even under heavy use.

• LA Keyway Standard: Ships with the standard Sargent LA Keyway 6-pin brass cylinder, allowing for seamless integration into most existing master key systems.


Key Product Features

• ANSI/BHMA Grade 1: Certified to the highest industry standards for operational grade and physical security.

• Classroom Function (F05): Exterior key locks/unlocks the handle; interior is always free for exit.

• Fire Rated Integrity: UL/cUL Listed for use on 3-hour fire-rated doors, maintaining the fire barrier in critical hallways.

• Vandal Resistant Engineering: Features a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.

• Efficient Installation: Redesigned internal components reduce installation time by up to 40% compared to traditional mortise locks.
• Stainless Steel Latchbolt: 3/4" throw one-piece anti-friction latchbolt provides smooth operation and increased security.

Technical Specifications

Ordering & Installation Information

The Sargent 8237 LNL is designed for versatility. The lock body is easily field-reversible, allowing it to accommodate any door swing without the need for specialized tools. This model is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso.
