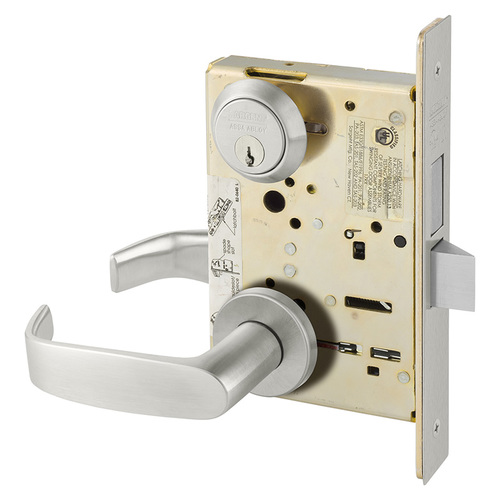

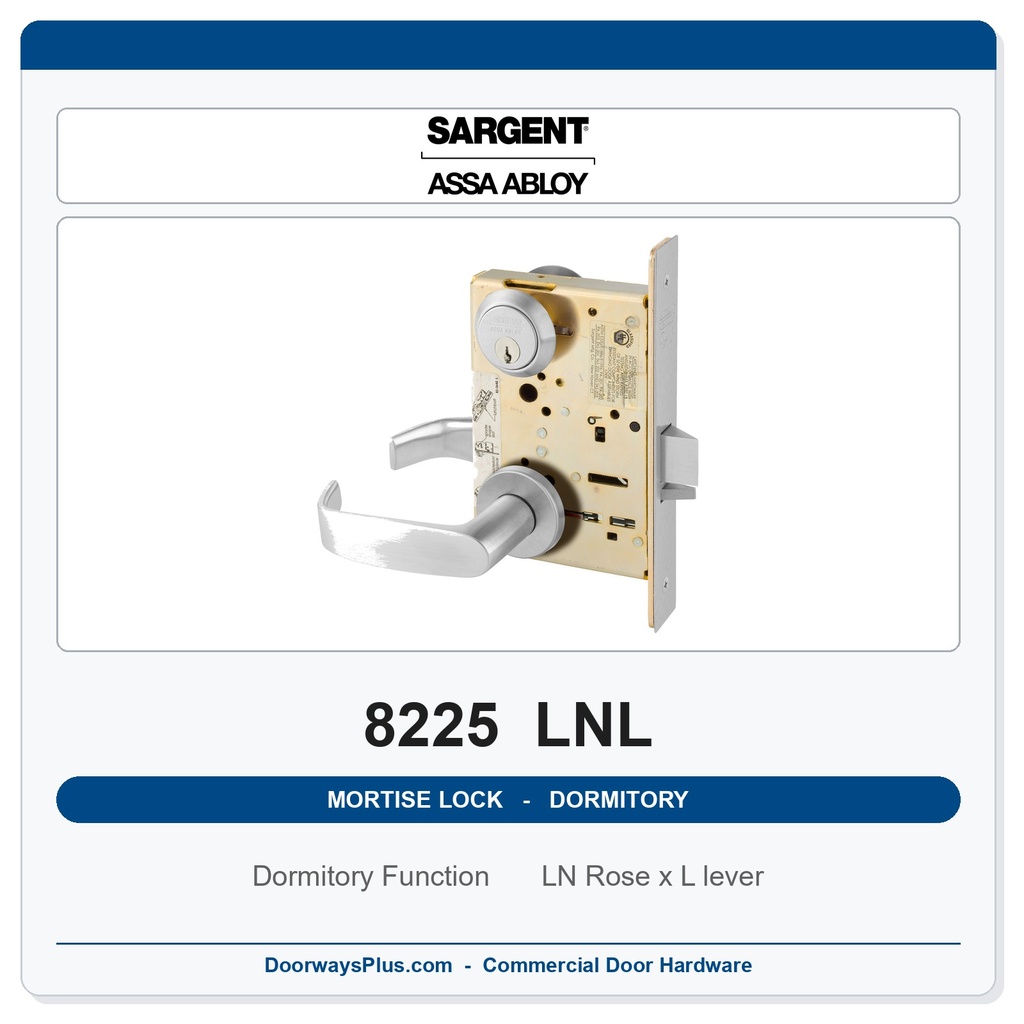

Sargent 8225 LNL Dormitory Mortise Lockset – Commercial Grade

The Sargent 8225 LNL is a heavy-duty commercial mortise lockset configured for the Dormitory function — one of the most widely specified lockset functions in higher education, student housing, multi-family residential, and institutional facilities. Built on Sargent's proven 8200 Series mortise platform, the 8225 delivers the robust, full-mortise construction that commercial contractors, facility managers, and architects demand for high-traffic openings.

Dormitory Function — What It Means for Your Application

The Dormitory function (ANSI F82) operates as follows: the outside lever is always locked and can only be retracted by a valid key from the outside — ideal for resident privacy and security. The inside lever always allows free egress without a key, satisfying life-safety egress requirements. A turn/thumbturn on the inside can be used to lock or unlock the outside lever, giving occupants control over their own access. This function is the standard choice for dormitory rooms, residential suites, and similar occupancy doors where independent room security is required without relying on staff intervention for lockout.

Key Benefits

• Full mortise body construction — heavy-duty steel case provides superior durability and resistance to forced entry compared to cylindrical locksets
• Dormitory (F82) function — outside lever key-controlled; inside lever always free for egress; inside thumbturn for room lockout
• LNL lever trim — the LNL designation identifies the specific lever style; confirm trim finish compatibility with your hardware schedule
• LA Keyway cylinder — standard Sargent 40 Series mortise cylinder with LA keyway; compatible with Sargent master key systems and key control programs
• Commercial Grade performance — engineered for high-cycle, high-traffic institutional openings
• Master keying compatible — Sargent 40 Series cylinders support complex master key hierarchies suitable for campus-wide key control

Typical Applications

• University and college dormitory rooms
• Student housing and residence halls
• Multi-family residential and apartment buildings
• Healthcare patient rooms and behavioral health facilities
• Institutional and government housing
• Hotel and hospitality guestrooms (consult function selection)

Specification & Compatibility Notes

The Sargent 8200 Series mortise lockset is designed to fit standard ANSI/BHMA A156.13 mortise prep doors. When specifying, confirm door thickness, backset, and handing with your project hardware schedule. The LA keyway cylinder is a standard Sargent keyway; if your facility uses a different keyway or interchangeable core system, consult Sargent keying options or contact our technical team for guidance. The 8225 function number designates dormitory operation within the 8200 Series line.

Technical Details

The Sargent 8225 LNL is a high-security Grade 1 Mortise Lockset designed for demanding residential and institutional environments, including university dormitories, military barracks, and multi-family housing. As a primary model in the Sargent 8200 Series, this lockset is the industry benchmark for durability and strength, featuring a integrated deadbolt for enhanced privacy and forced-entry resistance. The 8225 Dormitory or Exit Function (ANSI F13) provides a sophisticated balance between individual security and life-safety compliance, ensuring occupants feel secure while maintaining immediate emergency egress.

Sophisticated Dormitory & Exit Function (ANSI F13)

The 8225 function is engineered to provide superior privacy control with a single cylinder and interior thumbturn operation.

• Deadbolt Security: The 1" throw stainless steel deadbolt is projected and retracted by the key from the outside or the thumbturn from the inside.

• Automatic Unlocking: When the deadbolt is projected, the exterior lever is automatically locked. However, operating the interior lever retracts both the latchbolt and the deadbolt simultaneously, immediately unlocking the outside trim for convenience and safety.

• Independent Latching: When the deadbolt is retracted, the latchbolt is operated by the lever from either side, functioning as a standard passage door.


Architectural LNL Trim Design

The LNL trim combines the modern, linear L-Lever with the traditional LN-Rose, offering a clean aesthetic that stands up to the rigors of heavy-duty institutional use.

• ADA Compliance: The L-Lever is fully accessible and meets all ADA requirements, ensuring ease of use for all residents.

• Industrial Strength: The Sargent 8200 Series is independently verified to exceed 14 million cycles—14 times the requirement for Grade 1 certification—offering an unmatched total cost of ownership.

• Lever Sag Prevention: High-carbon steel spring cartridges and heavy-duty wrought steel hubs ensure the levers remain perfectly horizontal, even in high-frequency "student-proof" environments.


Key Product Features

• ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical strength and security.

• Dormitory/Exit Function (F13): Combined latch and deadbolt security with single-motion egress.

• LA Keyway Integration: Ships with a standard Sargent LA Keyway 6-pin brass cylinder, making it compatible with most existing Sargent master key systems.

• Fire Rated: UL/cUL Listed for use on 3-hour fire-rated doors, essential for corridor and dormitory safety.

• Vandal Resistant: Through-bolted lever trim and a 12-gauge heavy-duty wrought steel lock case provide maximum protection against tampering.
• Smooth Operation: Only 30° of lever rotation is required to retract the latchbolt, reducing physical strain on the mechanism.

Technical Specifications

Ordering & Installation Information

The Sargent 8225 LNL is designed for "fool-proof" installation with pre-assembled components that can reduce installation time by up to 40%. The non-handed chassis is easily field-reversible to accommodate any door swing.
