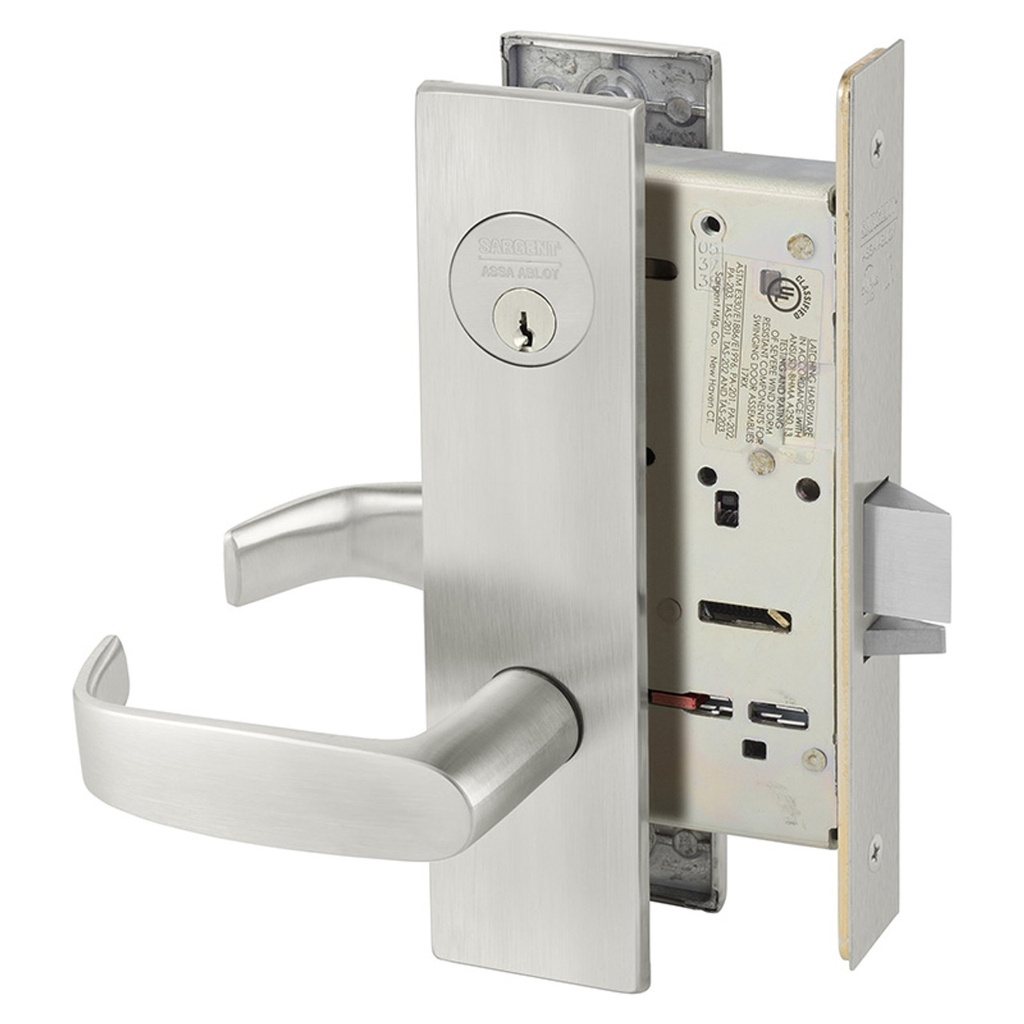

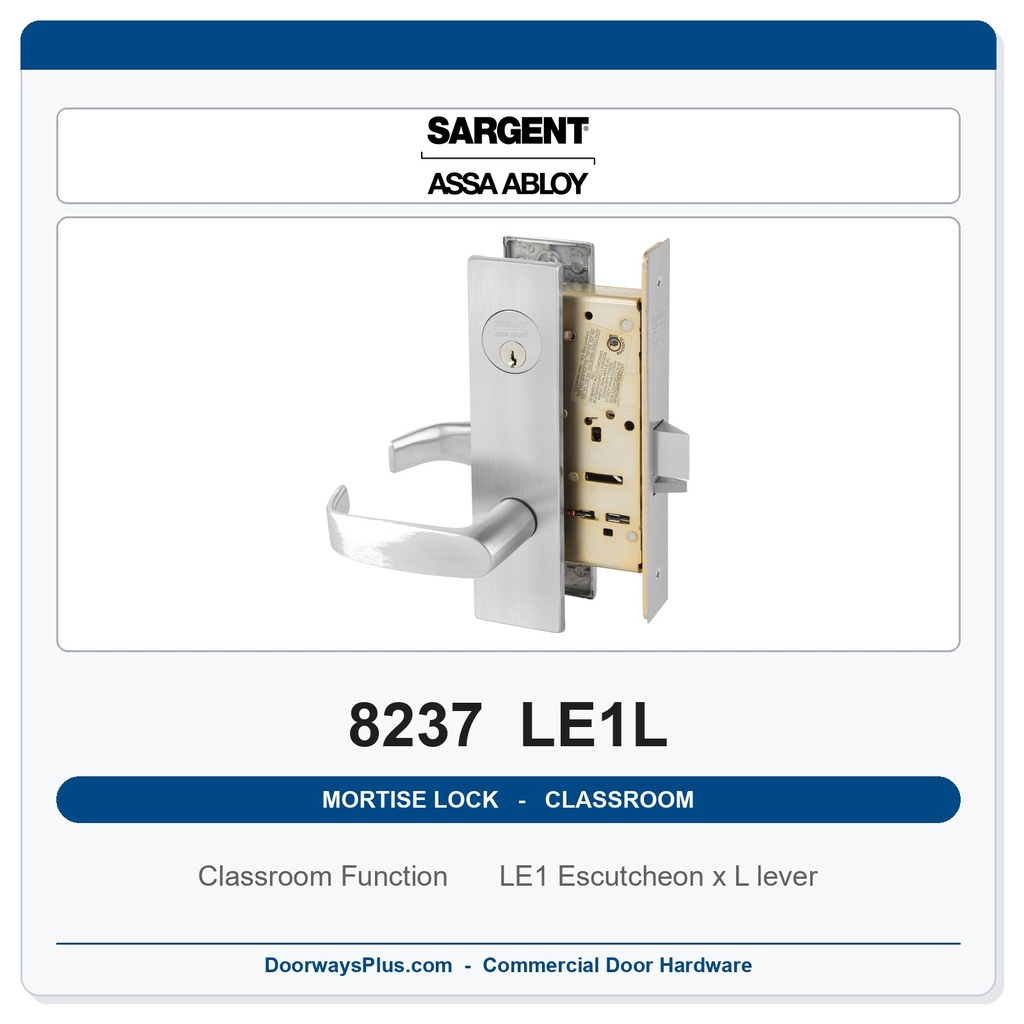

Sargent 8237 LE1L Classroom Function Mortise Lockset | LA Keyway | Grade 1 Commercial

The Sargent 8237 LE1L is a Grade 1 commercial mortise lockset from Sargent's industry-leading 8200 Series, configured for the Classroom function with an LE1L lever trim and LA keyway. Mortise locksets of this type are specified on institutional and commercial doors where heavy-duty, long-cycle performance is required. The 8200 Series mortise lock is widely recognized as a benchmark for commercial door security, and the 8237 function number designates a Classroom (ANSI F05) lockset — the standard choice for K–12 schools, universities, healthcare facilities, and government buildings.

Classroom Function Explained: The Classroom function keeps the latch retracted by lever from the inside at all times (free egress), while the outside< The key operates from the outside only.ress — a critical feature for active-shooter lockdown protocols and standard classroom security procedures.

Grade 1 Features & Benefits

• ANSI/BHMA Grade 1 Certified: Engineered to withstand the highest cycle and force requirements for commercial and institutional applications — the most demanding duty rating available for mortise locks.
• Sargent 8200 Series Mortise Case: Full-function mortise lock body designed fo latchbolt operation with an auxiliary deadlatch.
• Classroom (8237) Function: Inside lever always free for egress; outside lever normally locked; key-controlled locking and unlocking from outside — ideal for lockdown-ready school and institutional openings.
• LE1L Lever Trim: Sargent LE1L lever design provides a clean, commercial aesthetic suitable for institutional and educational environments.
• LA Keyway: Sargent LA keyway for compatibility with existing Sargent LA keyway master key systems — supports large-scale keying programs common in schools, campuses, and facilities.
• Mortise Lock Durability: Mortise-style case installation distributes stress across the full door edge, offering superior durability versus cylindrical locks on high-traffic openings.
• Wide Application Range: Suitable for new construction and retrofit on standard commercial door preps; compatible with Sargent 8200 Series trim and cylinder options.

Typical Applications

• K–12 classrooms, university lecture halls, and campus buildings
• Healthcare exam rooms and clinical spaces requiring lockdown capability
• Government and municipal offices
• Corporate and institutional interior security doors

Technical Details

The Sargent 8237 LE1L is a premier Grade 1 Heavy-Duty Mortise Lockset engineered specifically for the rigorous demands of K-12 schools, universities, and administrative buildings. As a cornerstone of the proven Sargent 8200 Series, it is recognized as the proven for physical security and mechanical longevity, far exceeding ANSI/BHMA A156.13 Series 1000 standards. The 8237 Classroom Function (ANSI F05) provides essential access control, allowing faculty and staff to secure rooms from the exterior while ensuring occupants always have a safe, unhindered exit.

Critical Classroom Security (ANSI F05)

The 8237 function is designed to provide robust perimeter security without compromising life-safety compliance. It ensures that authority over the room's locking status remains strictly with keyholders.

• Key-Controlled Access: The exterior lever is locked or unlocked only by a physical key using the standard Sargent LA Keyway. When locked, the outside lever remains rigid to prevent unauthorized entry.
• Constant Life-Safety Egress: Regardless of whether the outside is locked, the inside lever is always operative, allowing for immediate exit in an emergency.
• Deadlocking Latchbolt: Features a stainless steel auxiliary deadlatch that prevents "shimming" or forced manipulation of the latch when the door is closed.

• Smooth Mechanical Action: Requires only 30° of lever rotation to retract the latchbolt, reducing physical strain on the mechanism and the user.


Heavy-Duty LE1L Escutcheon Trim

The LE1L trim configuration offers a clean, linear architectural aesthetic paired with industrial-strength protection for the door and the lock body.

• LE1 Escutcheon Plate: This full-height linear escutcheon provides a heavy-duty mounting surface that reinforces the door and protects the LA Keyway cylinder and internal components from tampering or vandalism.
• L Lever Design: The L Lever provides a sleek, modern profile that is fully ADA compliant (consult local authorities) (consult local authorities), allowing for effortless operation without requiring a tight grip, pinch, or wrist twist.

• Superior Durability: The Sargent 8200 Series is independently verified to exceed 16 million cycles—16 times the requirement for Grade 1 certification—offering an proven total cost of ownership.

• Through-bolted trim High-carbon steel spring cartridges and heavy-duty wrought steel hubs ensure the L Lever remains properly aligned, preventing "lever sag" even after decades of high-frequency use.

Key Product Features

• ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical strength and operational longevity.
• Classroom Function (F05): Exterior key locks or unlocks the handle; interior is always free for egress.
• Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, essential for corridor and classroom safety.

• Vandal-Resistant Construction: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
• Stainless Steel Latchbolt: Features a 3/4" throw anti-friction latchbolt for quiet, smooth operation and long-term reliability.
• Universal Handing: The non-handed chassis is easily field-reversible to accommodate any door swing.

Technical Specifications

Ordering & Installation Information

The Sargent 8237 LE1L is designed for efficient installation into standard mortise door preparations. This unit is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for facilities requiring rapid re-keying.
