Sargent 8236 EF Trim Closet Function Mortise Lockset

Built for openings that are expected to outlast several tenancies.

The Sargent 8200 Series is an extra-heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Closet function with EF trim -- the F lever carried on the E Rose.

Closet Function

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Key locks and unlocks trim
• No inside trim or cylinder
• Multi-Function Lockbody: A multi-function 8200/7800 lockbody — this is the same multi-function body used across the 04, 05, 06, 13, 15, 31, 36, 37 and 38 functions, so one lockbody covers them all and a distributor stocks one case instead of several; even though this is a 36 function it uses that same body -- converting to or from it takes a Trim One Side Kit, not a new lockset.
• Anti-Shim Protection: Auxiliary dead latch — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.

EF Trim Design

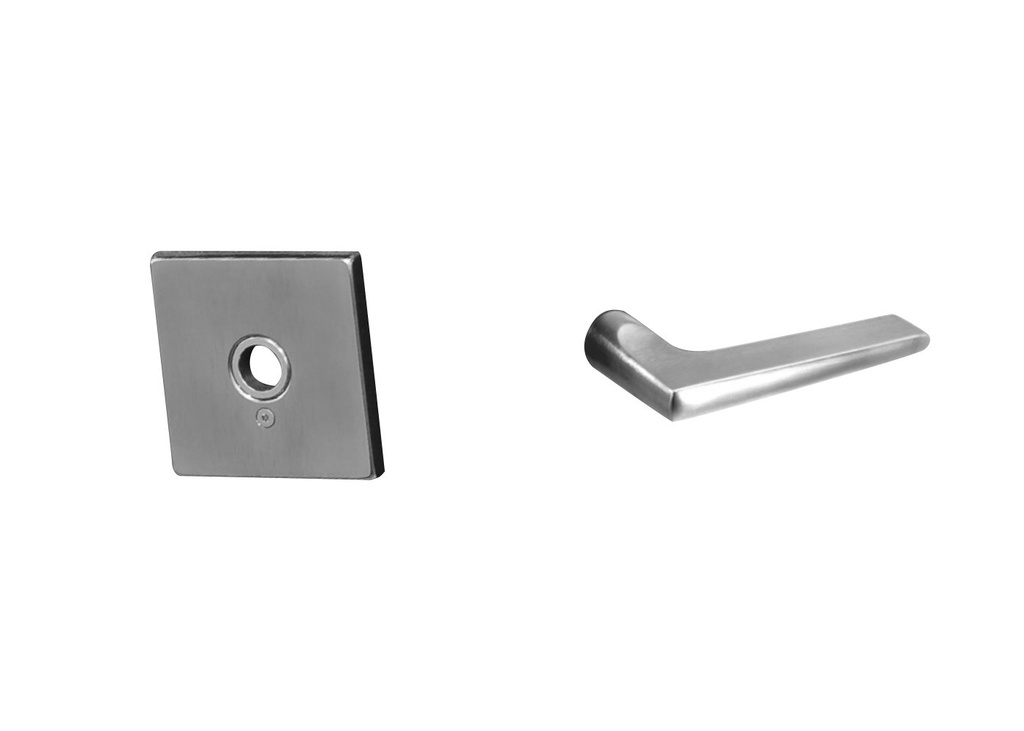

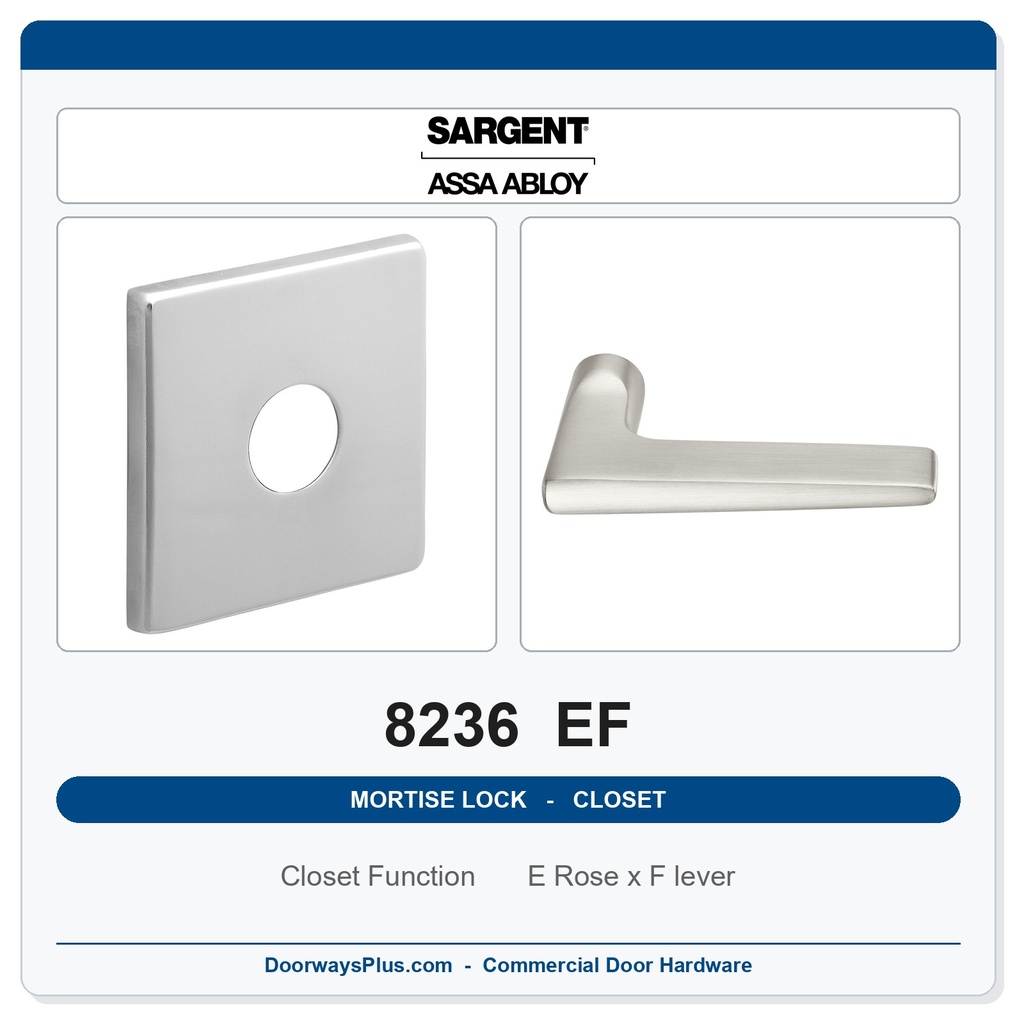

EF pairs the E Rose (3-1/16" (78mm), square plate) with the F lever (4-1/2" (114mm) long, +/- 1-15/16" (49mm) return). The carrier is a rose -- a compact plate around the lever, a different part from an escutcheon and a different door preparation.

• Carrier: E Rose, 3-1/16" (78mm) (square plate)
• Lever: F lever -- 4-1/2" (114mm) long, +/- 1-15/16" (49mm) return
• Handing: Non-handed; no handing designation is required when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Auxiliary deadlatch: Auxiliary Deadlatch is stainless steel and non-handed.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Keying: Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

Six finishes are offered on this trim: 626 Satin Chrome, 630 Satin Stainless, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. Cylinder and keyway options are LC (less cylinder), LA keyway, 60 (LFIC less core), 70 (SFIC less core).

Keys supplied: Two, nickel silver (control key or emergency key must be ordered when required). Security key systems available (Degree, Signature, Keso, Keso F1, & XC).

This trim is non-handed; no handing designation is required.
