Sargent 8231 TES Trim Utility Function Mortise Lockset
Chosen by specifiers who would rather over-build an opening than revisit it.
SAFETY CAUTION
Not recommended for use on any door used for life safety egress
The Sargent 8200 Series is an extra-heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Utility function with TES trim -- the S Sanibel lever carried on the TE Traditional Escutcheon.
Utility Function
How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:
- Key outside retracts latchbolt
- Trim outside is always locked
- No inside trim or cylinder
- Multi-Function Lockbody: A multi-function 8200/7800 lockbody — this is the same multi-function body used across the 04, 05, 06, 13, 15, 31, 36, 37 and 38 functions, so one lockbody covers them all and a distributor stocks one case instead of several; even though this is a 31 function it uses that same body -- converting to or from it takes a Trim One Side Kit, not a new lockset.
- Anti-Shim Protection: Auxiliary deadlatch — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.
TES Trim Design

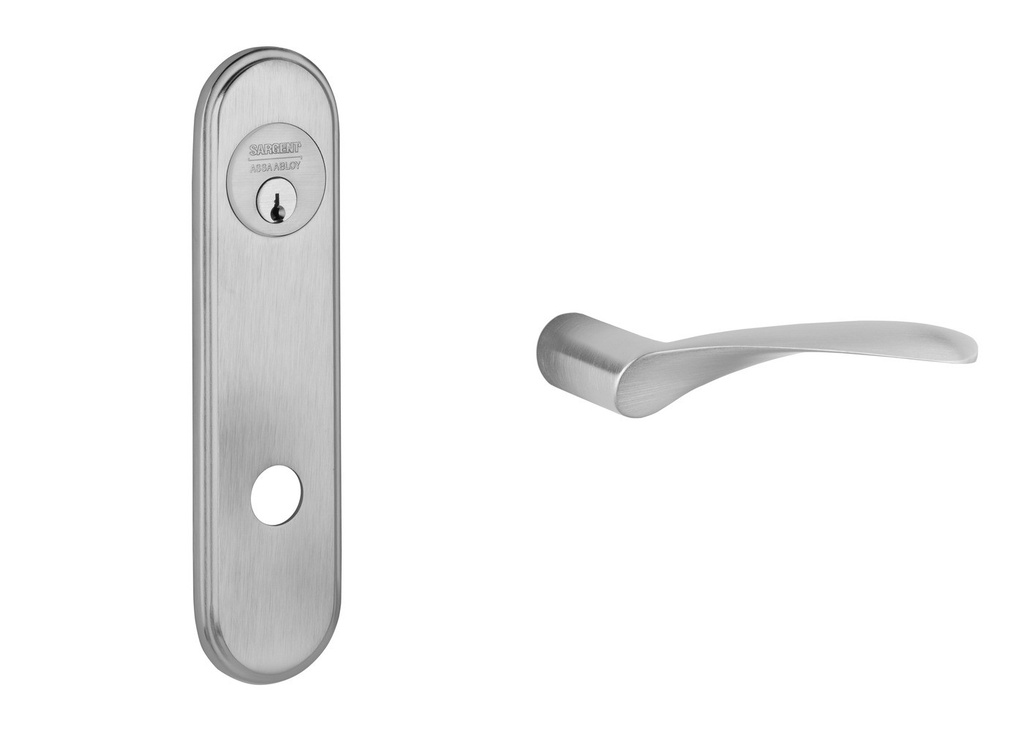

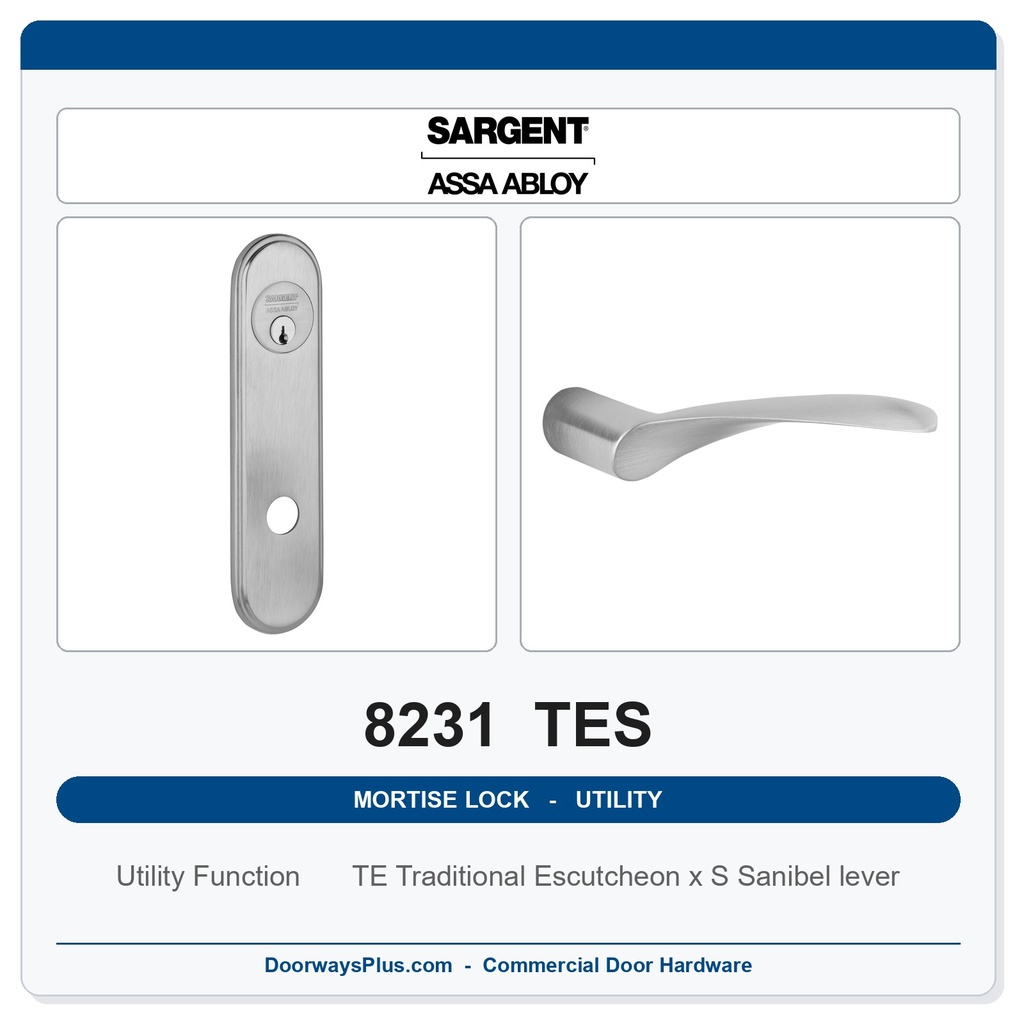

TES pairs the TE Traditional Escutcheon (2" W x 7-7/8" H (51 x 200mm), Coastal Series, oval-ended) with the S Sanibel lever (5" (127mm) long, +/- 2-1/2" (63mm) return). The carrier is an escutcheon -- a full plate covering the lock area, a different part from a rose and a different door preparation.
- Carrier: TE Traditional Escutcheon, 2" W x 7-7/8" H (51 x 200mm) (Coastal Series, oval-ended)
- Lever: S Sanibel lever -- 5" (127mm) long, +/- 2-1/2" (63mm) return
- Handing: Handed trim; specify LH, RH, LHR or RHR when ordering.
- Accessibility: All levers meet ADA compliance for national codes. Not available with CO and TO roses. Levers are solid cast brass. All lever height (+/- 1/16") measurements represent total distance from door face.
- Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt
Key Product Features
- ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
- Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
- Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
- Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
- Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
- Auxiliary deadlatch: Auxiliary Deadlatch is stainless steel and non-handed.
- Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
- Keying: Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
- Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.
Technical Specifications
| Series | Sargent 8200 Series Mortise Lock |
| Function | 8231 - Utility |
| ANSI/BHMA function | Not assigned by the manufacturer |
| Trim | TES (TE Traditional Escutcheon x S Sanibel lever) |
| Carrier type | Escutcheon |
| Carrier size | 2" W x 7-7/8" H (51 x 200mm) |
| Lever | S Sanibel lever -- 5" (127mm) long, +/- 2-1/2" (63mm) return |
| Trim handing | Handed -- specify LH / RH / LHR / RHR when ordering |
| Grade | Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. |
| Cycle testing | Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148. |
| Lock case | 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109"). |
| Hubs | Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks. |
| Lever springs | Lever springs contained inside of the lock case for easier installation. |
| Lever rotation | Easy operation. Only 30 degrees of lever rotation required to retract latchbolt. |
| Backset | Backset 2-3/4" (70mm) only. |
| Minimum stile | 4-1/2" (114mm) minimum stile for 7800/8200. |
| Door thickness | For Doors 1-3/4" (44mm) thick standard. |
| Door thickness range | Versatile. Offered for door thicknesses ranging from 1-3/8" (35mm) to 6" (152mm). |
| Latchbolt | Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch. |
| Auxiliary deadlatch | Auxiliary Deadlatch is stainless steel and non-handed. |
| Outside front plate | Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1/4" (31mm). |
| Front | Front adjustable at any angle from flat to beveled 1/8" (3mm); field adjustable, beveled, armored front, with a .125 inch (3mm) thickness minimum. |
| Inside front | 1/8" (.125") cold-rolled steel inside front holds lock securely in door. |
| Door prep | ANSI/SDI A250.14 modified per template 7057. |
| Cylinder | Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")). |
| Cylinder certification | ANSI/BHMA A156.5, Grade 1; 6 pin; Fixed, Interchangeable, Disposable; Available with LFIC and SFIC. |
| Interchangeable core note | LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements. |
| Keys | Two, nickel silver (control key or emergency key must be ordered when required). |
| Keying | Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway. |
| Security key systems | Security key systems available (Degree, Signature, Keso, Keso F1, & XC). |
| Fire rating | UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing. |
| Accessibility | Complies with American Disability Act; Consult local authorities. |
| Building standard | Meets BOMA International 4.13.8. |
| Warranty | 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody. |
| Brand | Sargent |
| Lead time | Factory order: 3-4 weeks |
Ordering & Installation
Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.
Six finishes are offered on this trim: 626 Satin Chrome, 630 Satin Stainless, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. Cylinder and keyway options are LC (less cylinder), LA keyway, 60 (LFIC less core), 70 (SFIC less core).
Keys supplied: Two, nickel silver (control key or emergency key must be ordered when required). Security key systems available (Degree, Signature, Keso, Keso F1, & XC).
This trim is handed -- specify LH, RH, LHR or RHR when ordering. Here the TE Traditional Escutcheon is handed in its own right, so this trim is handed even with a straight lever, and a part supplied in the wrong hand cannot be corrected on site.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Door Handing | LH or RH or RHR or LHR |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| Trim Design | TES |
| Series | Sargent - 8200 Series |
