Sargent 8213 EE Trim Exit Latch Function Mortise Latchset

Specified where a Grade 1 mortise lock has to survive daily institutional traffic.

The Sargent 8200 Series is a heavy-duty mortise platform for commercial and institutional openings. Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims. This listing is the Exit Latch function (ANSI/BHMA F31) with EE trim -- the E lever carried on the E Rose.

Exit Latch Function (ANSI/BHMA F31)

How the lock behaves at the opening, stated as the catalog states it, with what each line means in practice:

• Nothing on the Outside Face: No outside trim or cylinder — there is no lever and no cylinder outside -- this opening is worked from the inside only, and the trim you order is the inside trim.
• Life-Safety Free Egress: Trim inside retracts latchbolt — the inside lever is never locked, so a single motion always gets a person out.
• Multi-Function Lockbody: A Multi-Function 8200/7800 Lockbody — this is the same multi-function body used across the 04, 05, 06, 13, 15, 31, 36, 37 and 38 functions, so one lockbody covers them all and a distributor stocks one case instead of several; even though this is a 13 function it uses that same body -- converting to or from it takes a Trim One Side Kit, not a new lockset.
• Anti-Shim Protection: Auxiliary deadlatch — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.

EE Trim Design

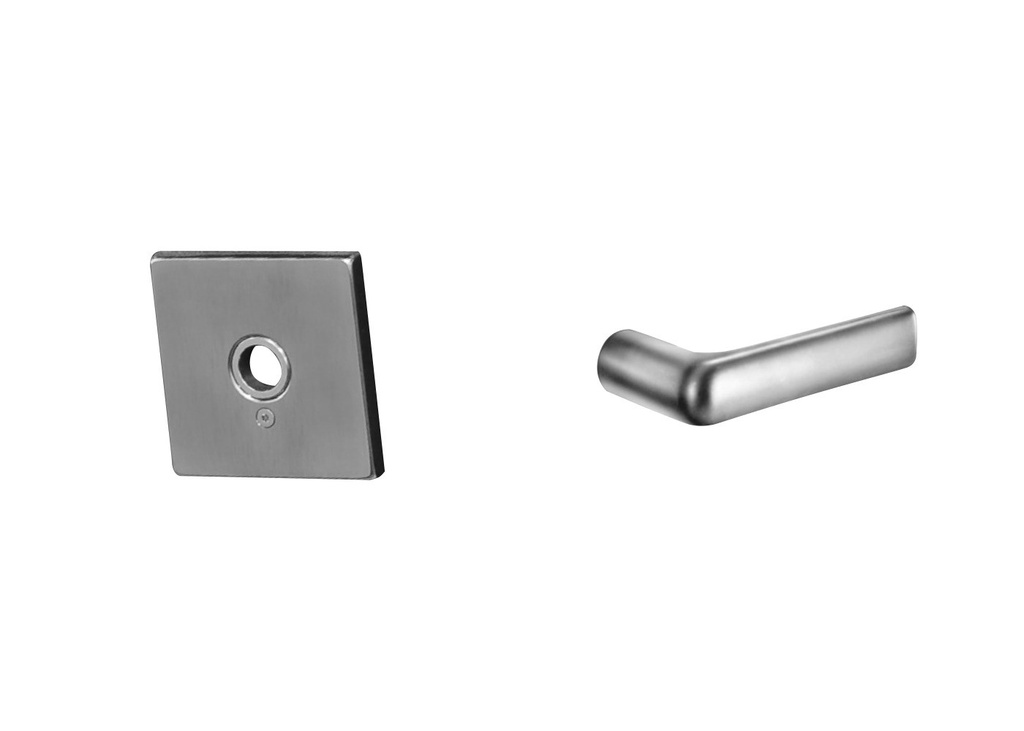

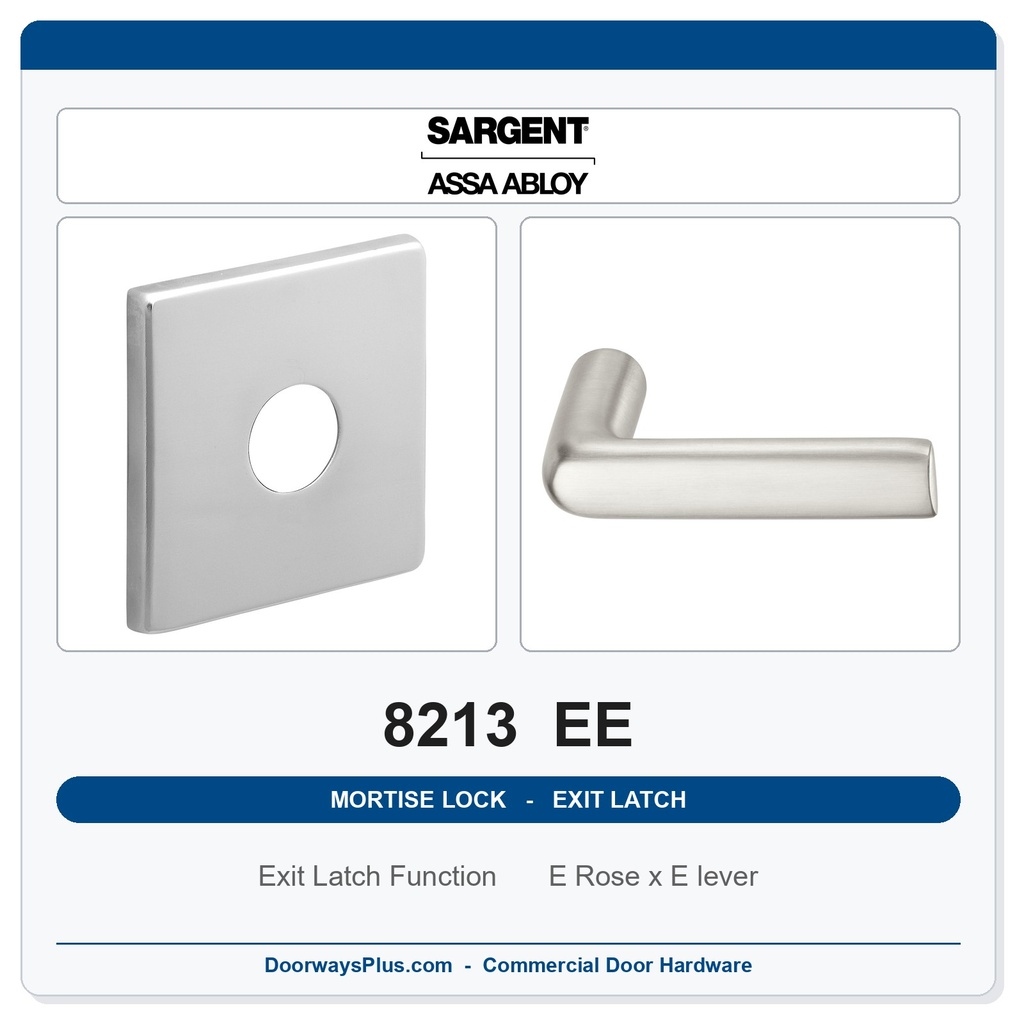

EE pairs the E Rose (3-1/16" (78mm), square plate) with the E lever (4-1/2" (114mm) long, +/- 2" (51mm) return). The carrier is a rose -- a compact plate around the lever, a different part from an escutcheon.

• Carrier: E Rose, 3-1/16" (78mm) (square plate)
• Lever: E lever -- 4-1/2" (114mm) long, +/- 2" (51mm) return
• Handing: Non-handed; no handing designation is required when ordering.
• Accessibility: All levers meet ADA compliance for national codes. Solid forged or cast. All lever height (+/- 1/16") measurements represent total distance from door face.
• Operation: Easy operation. Only 30 degrees of lever rotation required to retract latchbolt

Key Product Features

• ANSI/BHMA Grade: Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims.
• Cycle testing: Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles. Verification ID: V584148.
• Lock case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109").
• Hubs and springs: Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks.
• Latchbolt: Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch.
• Auxiliary deadlatch: Auxiliary Deadlatch is stainless steel and non-handed.
• Fire rating: UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
• Warranty: 10 year limited mechanical, 5 year limited MELR, 2 year limited electrical. Warranty limited to replacement of lockbody.

Technical Specifications

Ordering & Installation

Door preparation: ANSI/SDI A250.14 modified per template 7057. Backset 2-3/4" (70mm) only. Confirm the stile before specifying: 4-1/2" (114mm) minimum stile for 7800/8200.

We list seven finishes online for this trim: 626 Satin Chrome, 630 Satin Stainless, 613 Oil Rubbed Bronze, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, 625 Polished Chrome. This function is non-keyed -- it takes no cylinder and no keyway. Sargent catalogues more finishes; if you need one that is not listed here, or a door thickness other than 1-3/4" (44mm), email sales@doorwaysplus.com and we will quote it.

This trim is non-handed; no handing designation is required.
