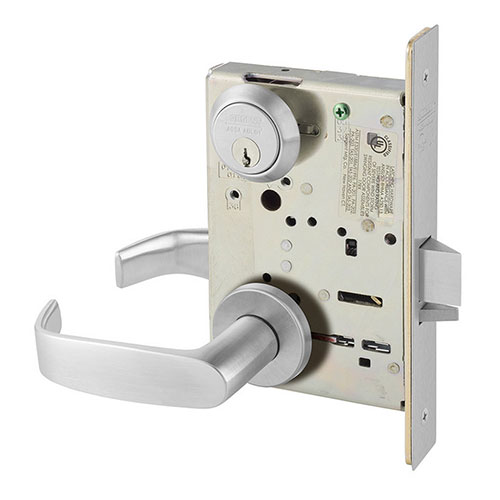

Sargent 8205 LNL Office/ Entry Function Mortise Lockset - LA Keyway
The Sargent 8205 LNL is an industry-leading Grade 1 Heavy-Duty Mortise Lockset engineered for high-traffic commercial, institutional, and government environments. As a centerpiece of the Sargent 8200 Series, this lockset offers the highest level of physical security and durability available in a mortise platform. The 8205 Office or Entrance Function (ANSI F04) provides flexible locking options for professional spaces, ensuring that security is easily managed without compromising life safety or architectural aesthetics.
Versatile Office & Entrance Function (ANSI F04)
The 8205 function is designed for the modern workplace, allowing for both permanent and temporary locking of the exterior lever.
- Dual Locking Options: The outside lever is locked or unlocked by the stop works (toggle) on the face of the lock or by the exterior key.
- Key Override: Access is always available from the outside via a physical key in the LA Keyway cylinder.
- Life Safety First: The inside lever always allows for constant free egress, ensuring occupants can exit the room immediately at all times, regardless of the locking status.
Architectural Precision: The LNL Lever Design
The LNL lever is a linear, contemporary handle that balances ergonomic comfort with a sleek, minimalist profile.
- ADA Compliance: The linear design is fully accessible and meets all ADA requirements, making it the ideal choice for barrier-free environments.
- Superior Durability: The Sargent 8200 Series far exceeds ANSI/BHMA A156.13 Series 1000 Grade 1 standards. It is constructed with a heavy-gauge steel case and high-strength internal components to prevent lever sag and mechanical failure.
- LA Keyway Integration: This lockset comes standard with the highly popular Sargent LA Keyway 6-pin cylinder, allowing for easy integration into existing master key systems across your facility.
Key Product Features
- ANSI/BHMA Grade 1 Certified: The benchmark for security, providing maximum resistance to forced entry and physical wear.
- Office/Entrance Function (F04): Features a toggle-controlled exterior lever for easy switching between "Locked" and "Unlocked" states.
- Fire Rated: UL/cUL Listed for use on 3-hour fire-rated doors, maintaining building integrity during emergencies.
- Anti-Friction Latchbolt: Features a 3/4" throw stainless steel latchbolt for quiet, smooth operation and increased security.
- Field Reversible: The non-handed chassis is easily adjusted in the field to accommodate any door swing.
- Corrosion Resistant: The lock case is treated with a zinc dichromate finish to protect against environmental degradation.
Technical Specifications
| Feature | Details |
| Function | 05 Office / Entrance (ANSI F04) |
| Series | 8200 Heavy-Duty Mortise |
| Lever Style | L-Lever with LN-Rose (LNL) - ADA Compliant |
| Cylinder | 6-Pin Brass, LA Keyway |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Case Thickness | Heavy-Gauge Steel |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8205 LNL is designed for precision fitment in standard mortise door preparations. It is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying needs.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Mortise Lock Function | F04 - Office Entry |
| Trim Design | LNL |
| Series | Sargent - 8200 Series |
