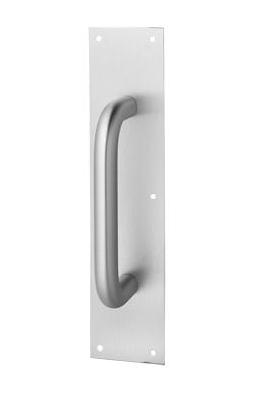

Rockwood 111 x 70C 32D Pull Plate | 10" CTC Round Pull & 4" x 16" Plate
The Rockwood 111 x 70C Pull Plate is a top-tier architectural hardware solution designed for the most demanding commercial environments. This set pairs a substantial 1" diameter solid round pull with an expansive 4" x 16" protective push plate. With a generous 10" center-to-center (CTC) spread, it provides superior leverage and a modern, high-end aesthetic for hospitals, schools, and high-traffic public buildings.
Industrial Strength & Maximum Protection
- Extra-Long 10" Round Pull: The 10-inch CTC handle offers an oversized grabbing surface, making it ideal for tall doors or facilities where ease of use is a priority.
- Oversized 4" x 16" Surface Shield: Specifically designed for wide-stile doors, this expansive plate protects the door finish from impact, scratches, and constant hand contact.
- Thru-Bolt Stability: Utilizes Type 1 thru-bolt mounting (1/4-20 bolts) to create a permanent, high-strength connection that prevents the handle from ever pulling loose.
- ANSI/BHMA Certified: Fully meets ANSI A156.6: J405 standards, ensuring the durability and quality required for commercial-grade building projects.
Technical Specifications
- Model: Rockwood 111 x 70C
- Plate Size: 4" Wide x 16" High (.050" thick)
- Pull Handle CTC: 10" (Center-to-Center)
- Pull Diameter: 1" Solid Round Bar
- Projection / Clearance: 3" Projection with a generous 2" hand clearance.
- Material: US32D Satin Stainless Steel
- Fasteners: Includes 1/4-20 x 2-1/4" thru bolts and finish washers (standard for 1-3/4" doors).
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Pull Handle Overall Length | 11" |
| Center to Center Distance | 10" CTC |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Diameter | 1" |
| Door Thickness | 1-3/4" Dr Thickness |
