Sargent 8204 LW1L Trim Storeroom or Closet Function Mortise Lockset

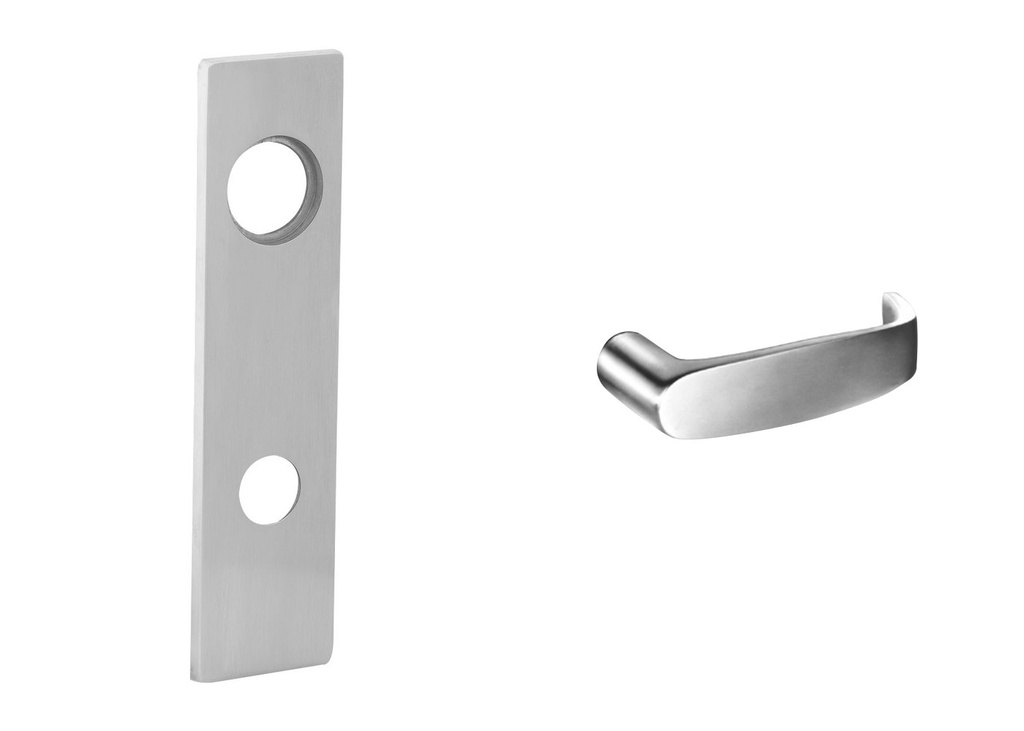

The Sargent 8204 LW1L is a mortise lockset from the respected Sargent 8200 Series, built for storerooms, closets and controlled-access corridors where appearance must hold up alongside performance. Specifying the 8204 Storeroom or Closet function (ANSI F07), this assembly pairs the LW1 escutcheon with the straight L lever — a profile that reads as architecturally composed on any corridor door and resists the visual wear that ornate trim accumulates over years of high-traffic use. Outside entry is by key only; the inside lever provides free egress at all times. Verified at 16 million cycles and certified to ANSI/BHMA A156.13 Series 1000 Operational and Security Grade 1, the 8204 LW1L is a specification-grade solution for architects and facility managers who refuse to choose between long-term durability and refined aesthetics.

8204 Storeroom / Closet Function — ANSI F07: Key-Controlled Entry, Unrestricted Egress

The 8204 defines a strict access boundary: the outside trim is locked at all times, and only a key retracts the latchbolt from that side. Inside, the lever always retracts the latchbolt freely — no credential, no delay. The 8204 has no deadbolt, no thumbturn, no occupancy indicator, and no electrification. It is a single-cylinder mechanical function.

• Key-Only Outside Entry: The outside trim is locked at all times — a key is always required to retract the latchbolt from the corridor side. This enforces a hard access boundary without any supplemental hardware, making the 8204 appropriate wherever entry must be controlled but egress must never be impeded.
• Always-Free Inside Egress: The inside lever retracts the latchbolt at all times with no credential required. Because occupant egress is never conditional, the 8204 satisfies life-safety egress requirements on the interior side of a secured storeroom or closet door.
• Stainless Steel Auxiliary Deadlatch: The auxiliary deadlatch is stainless steel and non-handed. It guards against latchbolt depression — meaning the door cannot be forced open simply by pressing the latchbolt back — adding a meaningful layer of passive security that operates automatically on every closure.
• Anti-Friction One-Piece Latchbolt: The latchbolt is a one-piece stainless steel anti-friction reversible latch with a 3/4" (19mm) throw. The anti-friction feature reduces the force needed to close the door against the strike, which matters in high-traffic corridors where doors are pulled shut quickly and repeatedly. The multi-function 8200/7800 lockbody underlying this assembly supports nine functions in one case, giving specifiers flexibility to change functions in the field without replacing the entire mortise body.

LW1 Escutcheon with L Lever: Linear Profile, Long-Term Appearance Retention

The LW1L trim combines the LW1 escutcheon with the L lever — a straight, unadorned lever geometry that accumulates far less visible soiling and surface wear than radius or decorative profiles. On high-traffic corridor doors, that linearity is a practical advantage as much as an aesthetic one. Six architectural finishes are offered to coordinate with the surrounding hardware package.

• Straight L Lever, 30-Degree Operation: Only 30 degrees of lever rotation is required to retract the latchbolt. The straight L lever profile transmits that rotation efficiently and presents a clean, uniform face that is easy to wipe down — an important consideration on storeroom doors in institutional and commercial settings where cleaning cycles are frequent.
• Through-Bolted, Interchangeable Mounting: Trim, levers and escutcheons are through-bolted and fully interchangeable between rose and escutcheon configurations. This ensures proper alignment under the mechanical load of daily use and gives facilities managers flexibility when updating trim styles without disturbing the lockbody.
• Lever Springs Inside the Case: The lever return springs are contained inside the lock case rather than in the trim assembly. This simplifies trim installation and replacement in the field, and it means the springs are protected from the cleaning agents and physical impacts that corridor trim routinely encounters.
• ADA Lever Operation and Finish Range: The L lever operates without tight grasping, pinching or twisting; the 8204 LW1L complies with the Americans with Disabilities Act — consult local authorities to confirm applicability to your specific installation. Six finishes are available: 626 Satin Chrome, 630 Satin Stainless, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, and 625 Polished Chrome.

Function (Sargent Catalog)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• A Multi-Function 8200/7800 Lockbody

Key Product Features

• 16 Million Cycle Verified Durability: The Sargent 8200 Series completed a UL cycle test at 16 million cycles — exceeding the ANSI/BHMA A156.13 Grade 1 cycle requirement by 16 times (Verification ID: V584148). For a storeroom door in a busy facility, that margin translates directly into a longer service life before mechanical maintenance is needed.
• ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1: Certified to the highest commercial mortise lockset grade with standard trims. Note: the LFIC (option 60) and SFIC (option 70) cylinder configurations offered on this listing do not meet Security Grade 1 requirements — specify the LA keyway or LC less-cylinder option when Security Grade 1 must be maintained throughout.
• 12-Gauge Zinc-Dichromate Steel Case: The lockbody case is 12-gauge heavy-duty wrought steel, zinc dichromate plated, at 7/64" (3mm) /.109" thickness. The inside front is 1/8" (.125") cold-rolled steel. Together these form a case that resists deformation under the continuous mechanical loads imposed by a mortise lock in daily use.
• Cold Forged Steel Hubs and High Carbon Steel Spring Cartridge: The 8200 Series uses cold forged steel hubs — not sintered iron — paired with a high carbon steel spring cartridge. This material combination is why the 8200 lockbody supports the series' demanding cycle life.
• UL/cUL 3-Hour Fire Door Listing and UL 10C Positive Pressure: Listed to US and Canadian safety standards for A-label 4x10 single and 8x10 double (3-hour fire door) and lesser class doors. Also meets ANSI/UL 10C Positive Pressure Fire Test of Door Assemblies. The armored front is stamped with the letter F and UL symbol to confirm the listing at rough inspection.
• 10-Year Limited Mechanical Warranty: Sargent backs the 8200 Series lockbody with a 10-year limited mechanical warranty (warranty limited to replacement of lockbody). The 8204 LW1L is a mechanical-only assembly — the 5-year MELR and 2-year electrical warranty terms do not apply to this configuration.

Technical Specifications

Ordering & Installation Information

The 8204 LW1L installs to ANSI/SDI A250.14 modified per template 7057 door prep on doors 1-3/4" (44mm) thick standard, with a fixed 2-3/4" (70mm) backset — no backset adjustment is available, so confirm the door edge preparation before ordering. A 4-1/2" (114mm) minimum stile is required; narrower stiles cannot accommodate the mortise case. The lock body is field reversible and can be re-handed without removing parts or opening the case; however, this trim is handed and must be specified as LH, RH, LHR or RHR at time of order — trim handing cannot be changed in the field. Four cylinder/keyway options are offered: LC (Less Cylinder), LA Keyway, 60 (LFIC Less Core), and 70 (SFIC Less Core); note that LFIC and SFIC configurations do not meet ANSI/BHMA A156.13 Security Grade 1. The brass cylinder is size #41 (1-1/8"). Six finishes are available: 626, 630, 613E, 605, 612 and 625. The broader Sargent 8200 Series also offers optional MicroShield antimicrobial coating, electro-mechanical functions with ElectroLynx connectors, status indicators, push/pull ALP trim, and secure fastener options — consult the series catalog for separately specified configurations. Lead time: factory order, 3–4 weeks.
