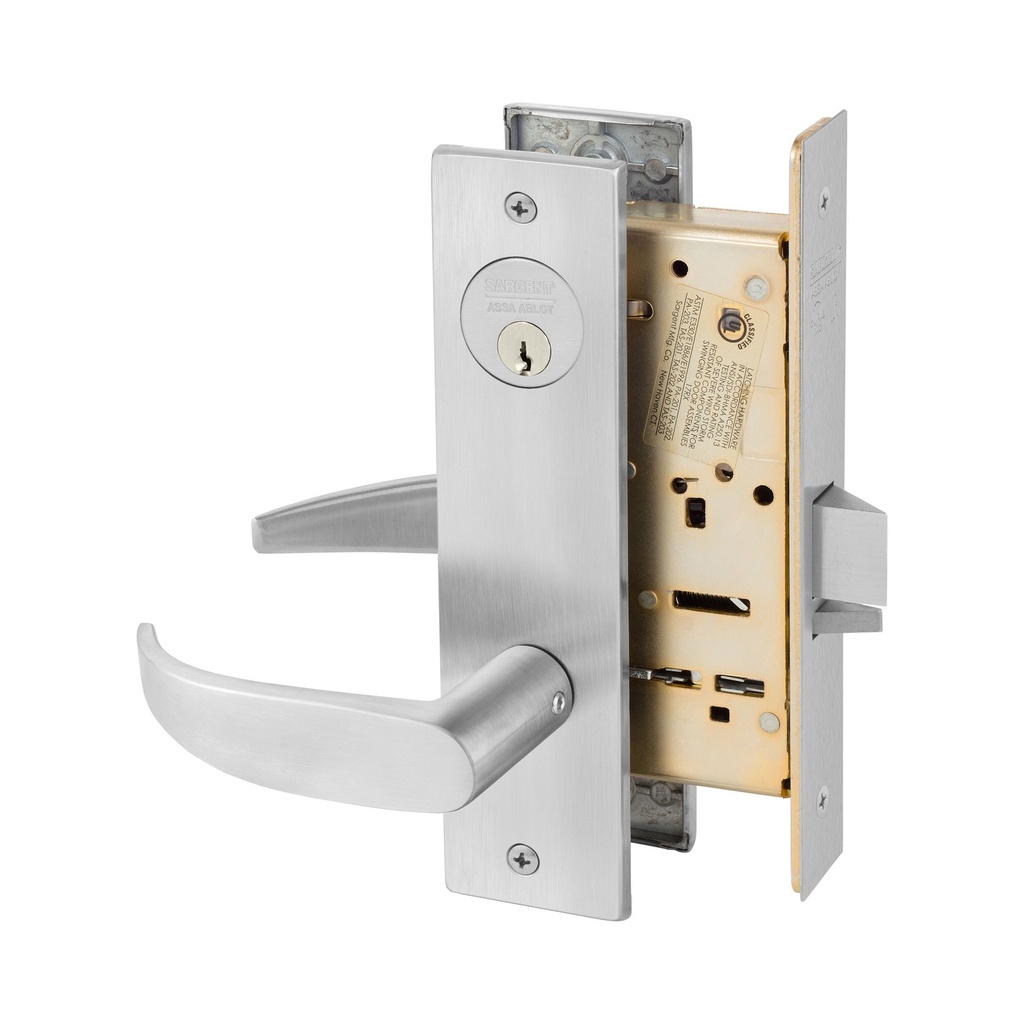

Sargent 8204 LE1P Trim Storeroom or Closet Function Mortise Lockset

The Sargent 8204 LE1P is a heavy-duty mortise lockset from the Sargent 8200 Series, configured to the 8204 Storeroom or Closet function (ANSI F07). Trim code LE1P pairs the LE1 escutcheon with the P lever — a pairing that delivers a clean, architectural profile suited to high-traffic corridors where appearance retention matters as much as mechanical reliability. Outside entry requires a key at all times; inside egress is always free. There is no deadbolt, no thumbturn, and no electrification — a deliberate, secure-access configuration for storerooms, supply closets, and similar controlled spaces. Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1, this lockset is engineered to perform across the full lifespan of the opening.

8204 Storeroom / Closet Function — ANSI F07: Key-Controlled Outside, Always-Free Inside

ANSI F07 defines a specific access hierarchy: the outside trim is locked at all times and yields only to a key, while the inside trim always retracts the latchbolt freely. That combination — no passage from outside without a credential, unrestricted egress from inside — makes the 8204 the standard choice for storerooms, supply closets, and secured utility spaces where staff must exit instantly without a key.

• Key-Only Outside Entry: The outside lever is locked at all times; only a key retracts the latchbolt from the exterior. Because there is no thumbturn and no holdback, the door cannot be left unsecured from the inside — the outside trim returns to a locked condition on every cycle.
• Unrestricted Inside Egress: The inside lever always retracts the latchbolt, with no credential required. This ensures occupants are never trapped, satisfying life-safety egress requirements without the complexity of a passage or privacy function.
• Stainless Steel Auxiliary Deadlatch: The auxiliary deadlatch is stainless steel and non-handed. It guards against latchbolt depression — the latchbolt cannot be pushed back by shimming or card manipulation when the door is fully closed and the deadlatch is engaged against the strike.
• Anti-Friction Latchbolt and Multi-Function Lockbody: The one-piece stainless steel latchbolt provides a 3/4" (19mm) throw with an anti-friction design that eases closing under door pressure. The lockbody is Sargent's multi-function design — the same case that supports nine functions — meaning replacement trim or function changes later in the door's life do not require a new lock case.

LE1 Escutcheon and P Lever: Architectural Form Built for Corridor Durability

The LE1P trim combines the LE1 escutcheon with the P lever to produce a silhouette that reads as refined without projecting far from the door face — an important characteristic in busy corridors where lever geometry affects both traffic flow and finish longevity. The lever's profile and the escutcheon's architectural lines are consistent with institutional and commercial interiors that demand hardware blending performance with appearance.

• 30-Degree Lever Rotation: Only 30 degrees of lever rotation is required to fully retract the latchbolt. That shallow arc reduces the force and range of motion demanded of each user, which matters in high-cycle corridors and supports accessibility — the lever design complies with the American Disability Act; consult local authorities to confirm compliance with jurisdiction-specific requirements.
• Lever Springs Inside the Lock Case: The lever return springs are contained inside the lock case rather than in the trim. This simplifies trim installation and replacement, and protects the springs from the wear and corrosion exposure that external spring arrangements can accumulate over time in corridor environments.
• Through-Bolted, Interchangeable Trim: To ensure proper alignment, the LE1P trim is through-bolted and fully interchangeable between rose and escutcheon configurations. This means a specifier can transition between rose and escutcheon mounting on the same lockbody without sourcing a different case.
• Six Architectural Finishes: The LE1P is offered in 626 Satin Chrome, 630 Satin Stainless, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, and 625 Polished Chrome — a range spanning warm and cool tones to coordinate with corridor hardware schedules across new construction and renovation projects.

Function (Sargent Catalog)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• A Multi-Function 8200/7800 Lockbody

Key Product Features

• 16 Million Cycle Durability: The Sargent 8200 Series completed UL cycle testing at 16 million cycles — exceeding the ANSI/BHMA A156.13 Grade 1 cycle requirement by 16 times (Verification ID: V584148). That margin translates directly to reduced maintenance intervention over the service life of a high-traffic storeroom door.
• ANSI/BHMA A156.13 Series 1000 — Operational Grade 1 and Security Grade 1: The 8204 LE1P meets both Operational and Security Grade 1 with standard trims, the highest classification under this standard. Note: LFIC (option 60) and SFIC (option 70) cylinder configurations do not meet Security Grade 1 requirements.
• 12-Gauge Zinc-Dichromate Steel Case and Cold Forged Steel Hubs: The lock case is 12-gauge heavy-duty wrought steel, zinc dichromate plated at 7/64" (3mm) thickness. The 8200 Series hubs are cold forged steel — distinct from the sintered iron used in the 7800 line — paired with a high-carbon steel spring cartridge for superior strength across the lock's service life.
• UL/cUL 3-Hour Fire Rating and Positive Pressure Compliance: The 8204 is UL and cUL Listed to US and Canadian safety standards for A label 4×10 single and 8×10 double (3-hour fire door) and lesser class doors. It also meets ANSI/UL 10C Positive Pressure Fire Test of Door Assemblies. The armored front is stamped with the letter F and the UL symbol to confirm the listing at installation.
• Cylinder and Keyway Options: This listing is offered in four cylinder configurations: LC (Less Cylinder), LA Keyway (standard brass #41 cylinder, 1-1/8"), 60 (LFIC Less Core), and 70 (SFIC Less Core). The LA keyway can be masterkeyed or grand masterkeyed; construction keying is available. LFIC and SFIC cores are not available on this listing beyond the less-core options; LFIC and SFIC configurations do not meet ANSI/BHMA A156.13 Security Grade 1.
• 10-Year Limited Mechanical Warranty and Field-Reversible Lock Body: Sargent backs the 8200 Series lockbody with a 10-year limited mechanical warranty (warranty limited to replacement of lockbody). The lock body is field reversible — re-handed without removing parts or opening the lock case — reducing installation time and the risk of specification errors on mixed-hand door schedules.

Technical Specifications

Ordering & Installation Information

The 8204 LE1P requires door prep to ANSI/SDI A250.14 modified per template 7057 and a fixed 2-3/4" (70mm) backset — no other backset is available, so verify rough prep before ordering. A 4-1/2" (114mm) minimum stile is required; narrower stiles cannot accommodate the lock case. The lockset is standard for 1-3/4" (44mm) thick doors; the 8200 Series is offered for door thicknesses from 1-3/8" to 6" — consult the factory for non-standard thickness requirements. Handing is critical: the lock body is field reversible and requires no handing designation at order, but this trim is handed — specify LH, RH, LHR, or RHR when ordering or the order cannot be fulfilled. Six finishes are available: 626, 630, 613E, 605, 612, and 625. Cylinder options are LC, LA, 60, and 70 as listed above. This is a factory order item with a 3–4 week lead time. The broader Sargent 8200 Series also offers optional MicroShield antimicrobial coating, status indicators, ElectroLynx electro-mechanical configurations, push/pull ALP trim, and vandalism-deterrent or secure-fastener trim — specify these separately if required for your project.
