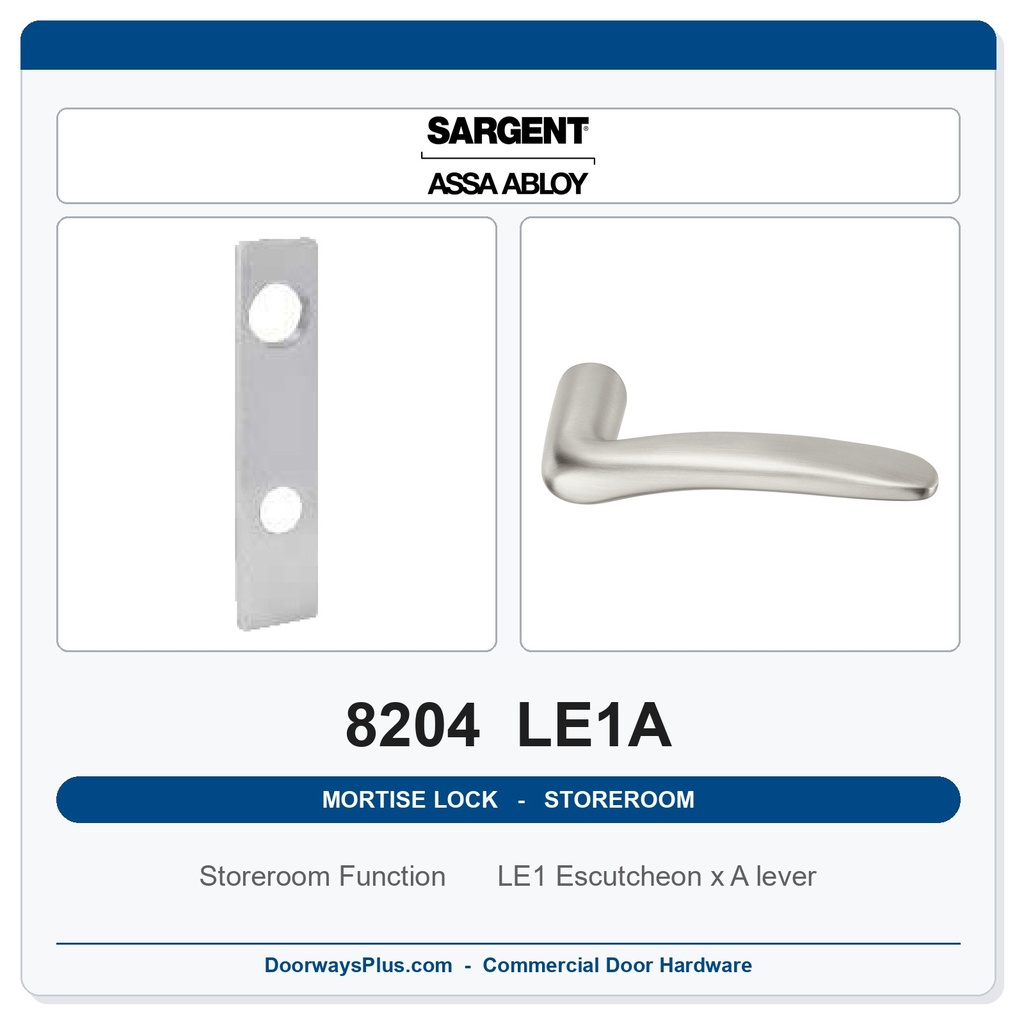

Sargent 8204 LE1A Trim Storeroom or Closet Function Mortise Lockset

Built for corridors that never sleep, the Sargent 8200 Series 8204 LE1A Mortise Lockset brings institutional-grade staying power to storeroom and closet applications where appearance and reliability are equally non-negotiable. The 8204 Storeroom or Closet function (ANSI F07) delivers controlled single-cylinder entry — a key outside is required to retract the latchbolt, while inside egress remains unrestricted at all times. Specified under trim code LE1A, this configuration pairs the LE1 Escutcheon with the A lever, a combination that weathers the daily punishment of high-traffic institutional doors without sacrificing the finished look specifiers and facility managers demand. Behind the trim, a multi-function 8200 Series lockbody certified to ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1 backs every installation with over a century of Sargent engineering.

8204 Storeroom / Closet Function — ANSI F07 Single-Cylinder Control

The ANSI F07 function is purpose-built for spaces that require controlled access from the corridor side while guaranteeing free egress from within. Outside trim is locked at all times — only a key retracts the latchbolt — so the door cannot be propped open from the outside by unauthorized users. Inside, the lever always operates freely, meeting life-safety egress expectations without any secondary action.

• Key-Only Outside Entry: The outside trim is locked at all times; a key is required to retract the latchbolt and gain entry. The 8204 has no deadbolt and no thumbturn — access is governed solely by cylinder key, keeping storeroom and closet openings under consistent key-control discipline.
• Unrestricted Inside Egress: The inside lever always retracts the latchbolt regardless of the outside lock state. Occupants can exit freely at any moment, which supports life-safety egress requirements without requiring staff to manage any unlocking step from inside.
• Stainless Steel Auxiliary Deadlatch: An auxiliary deadlatch in stainless steel automatically deadlocks the latchbolt when the door closes, preventing latchbolt depression by a thin tool slipped into the frame gap. The deadlatch is non-handed, so it functions correctly on both handing orientations without any field adjustment.
• Anti-Friction Latch and Multi-Function Lockbody: The one-piece stainless steel latchbolt delivers a 3/4" (19mm) throw with an anti-friction tip, reducing the force needed to pull a loaded door shut — a practical benefit on heavy institutional doors subject to constant use. This lockbody is Sargent's patented multi-function design, embodying nine functions in one case.

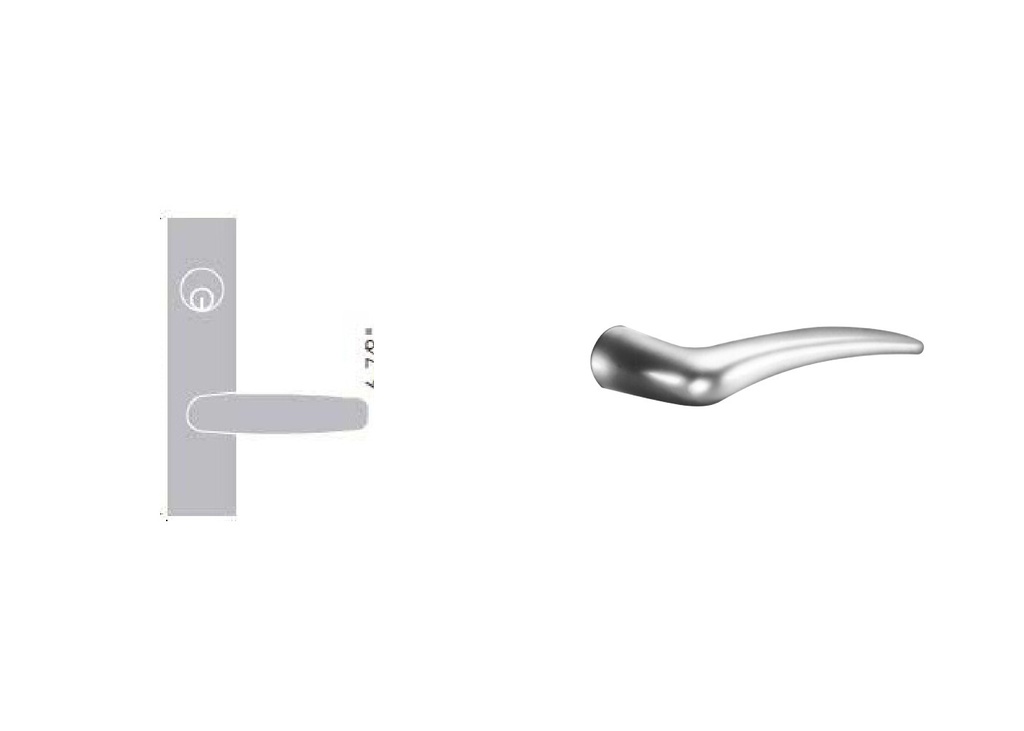

LE1 Escutcheon with A Lever — Trim Built to Outlast Heavy Institutional Traffic

The LE1A trim combines the LE1 Escutcheon with the A lever to deliver a straightforward, professional appearance suited to corridors, storage areas and service spaces that see continuous daily use. The escutcheon format keeps the lock area neat and consistent across door elevations, while the A lever's uncomplicated profile resists the cosmetic wear that ornate designs accumulate over years of heavy-handed operation.

• 30-Degree Lever Rotation: Only 30 degrees of lever rotation is required to fully retract the latchbolt. In a busy corridor where hands are often full, that reduced arc means faster, lower-effort door operation for authorized users — a tangible ergonomic advantage over trims requiring a deeper swing.
• ADA Lever Operation: The A lever design complies with the American Disability Act; consult local authorities to confirm applicability to your jurisdiction and occupancy type.
• Through-Bolted, Interchangeable Trim: To ensure proper alignment, the LE1A trim is through-bolted and fully interchangeable between rose and escutcheon configurations within the 8200 Series. Lever springs are contained inside the lock case rather than in the trim itself, simplifying installation and reducing the chance of spring misalignment during field work.
• Handing and Finish Selection: This trim is handed — specify LH, RH, LHR or RHR when ordering. Six architectural finishes are available: 626 Satin Chrome (US26D), 630 Satin Stainless (US32D), 613E Oil Rubbed Bronze Equal (US10BE), 605 Polished Brass (US3), 612 Satin Bronze (US10), and 625 Polished Chrome (US26).

Function (Sargent Catalog)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• A Multi-Function 8200/7800 Lockbody

Key Product Features

• 16 Million Cycle Verified Durability: The Sargent 8200 Series completed UL cycle testing at 16 million cycles — exceeding the ANSI/BHMA A156.13 Grade 1 requirement by 16 times (Verification ID: V584148). For a storeroom door opened and closed dozens of times daily, that margin translates directly into decades of reliable service.
• ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1: Certified to and exceeds both Operational Grade 1 and Security Grade 1 with standard trims, the highest classification under the ANSI/BHMA commercial mortise lockset standard.
• 12-Gauge Heavy-Duty Steel Case: The lock case is 12-gauge heavy-duty wrought steel, zinc dichromate plated, with a wall thickness of 7/64" (3mm) (.109"). A 1/8" (.125") cold-rolled steel inside front holds the lock securely in the door.
• Cold Forged Steel Hubs: The 8200 Series uses cold forged steel hubs — paired with a high carbon steel spring cartridge — providing the hub strength and spring consistency that underpin the lock's long cycle life under sustained institutional load.
• UL/cUL 3-Hour Fire Listed and UL 10C Positive Pressure Rated: Listed to US and Canadian safety standards for A-label 3-hour fire doors (4×10 single and 8×10 double), with the letter F and UL symbol stamped on the armored front confirming listing. The lock also meets ANSI/UL 10C Positive Pressure Fire Test requirements.
• 10-Year Limited Mechanical Warranty and Cylinder Options: Backed by a 10-year limited mechanical warranty (warranty limited to replacement of lockbody). Cylinder options for this listing are: LC – Less Cylinder; LA Keyway (standard, masterkey and grand masterkey capable, construction keying available); 60 – LFIC Less Core; 70 – SFIC Less Core. Note: LFIC (60) and SFIC (70) cylinders do not meet ANSI/BHMA A156.13 Security Grade 1 requirements. The standard cylinder for this trim is brass size #41 (1-1/8").

Technical Specifications

Ordering & Installation Information

The 8204 LE1A installs to door prep ANSI/SDI A250.14 modified per template 7057, standard for 1-3/4" (44mm) doors; the series is also offered for door thicknesses from 1-3/8" (35mm) to 6" (152mm) where required. A 2-3/4" (70mm) backset is the only backset available — verify rough prep before ordering. Minimum stile width is 4-1/2" (114mm); doors narrower than this cannot accept the lockbody. The lock body is field-reversible and can be re-handed without removing parts or opening the lock case — a real time-saver during installation or future door swaps. However, this trim is handed; specify LH, RH, LHR or RHR at time of order and confirm handing before placing. Choose from six finishes: 626, 630, 613E, 605, 612 or 625. Cylinder options are LC, LA Keyway, 60 (LFIC Less Core) or 70 (SFIC Less Core). The broader Sargent 8200 Series offers optional configurations including MicroShield® antimicrobial finish coating, electro-mechanical ElectroLynx® functions, status indicators, push/pull ALP trim, and secure fastener options — consult DoorwaysPlus for separately specified builds. Lead time: factory order, 3–4 weeks.
