Sargent 8204 LE Trim Storeroom or Closet Function Mortise Lockset

The Sargent 8204 LE Trim Mortise Lockset brings the controlled-access discipline of the Sargent 8200 Series to storeroom and closet openings where a minimal door-face profile matters as much as the security behind it. Built to ANSI F07 Storeroom/Closet function, the 8204 keeps the outside trim locked at all times — entry by key only — while the inside trim always retracts the latchbolt freely, supporting safe egress without delay. Trim code LE pairs the broad L Rose at 3-1/2" diameter with the E lever, covering less door face than a full escutcheon and leaving surrounding surfaces clean and uncluttered. Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1, the 8200 Series lockbody behind this trim is factory-tested to 16 million cycles — a benchmark that speaks directly to high-traffic institutional and commercial environments.

8204 Storeroom/Closet Function — ANSI F07: Key-Controlled Entry, Always-Free Egress

The 8204 ANSI F07 function is purpose-built for rooms where access must be controlled from outside at all times while occupants can always leave freely. A single key turn retracts the latchbolt from outside; the inside trim retracts it unconditionally. There is no deadbolt, no thumbturn, and no occupancy indicator — the function is deliberately simple and reliable.

• Key-Only Outside Entry: The outside trim is locked at all times — only a valid key retracts the latchbolt. Because there is no inside release that can be left in an unlocked state, the door returns to a secured condition every time it closes, eliminating the risk of an attendant accidentally leaving a storeroom open.
• Always-Free Inside Egress: The inside trim retracts the latchbolt without restriction at any time. No key, no credential, and no held-open condition is required from the secure side, ensuring occupants can exit immediately — a straightforward compliance posture for life-safety requirements.
• Auxiliary Deadlatch: A stainless steel auxiliary deadlatch is non-handed and engages automatically as the door closes, preventing the latchbolt from being pushed back with a card or tool. Because it is stainless steel, it resists corrosion in the environments — janitor closets, service corridors, humid utility rooms — where this function is most commonly deployed.
• Anti-Friction Latchbolt: The one-piece stainless steel latchbolt has a 3/4" (19mm) throw and an anti-friction feature that reduces door-closing resistance. Paired with the multi-function 8200/7800 lockbody — the first in the industry to embody nine functions in one case — the 8204 configuration is a factory-set selection within that single platform, simplifying service and parts inventory across a facility.

LE Trim: L Rose (3-1/2" dia) and E Lever — Broad Footprint, Easy Operation

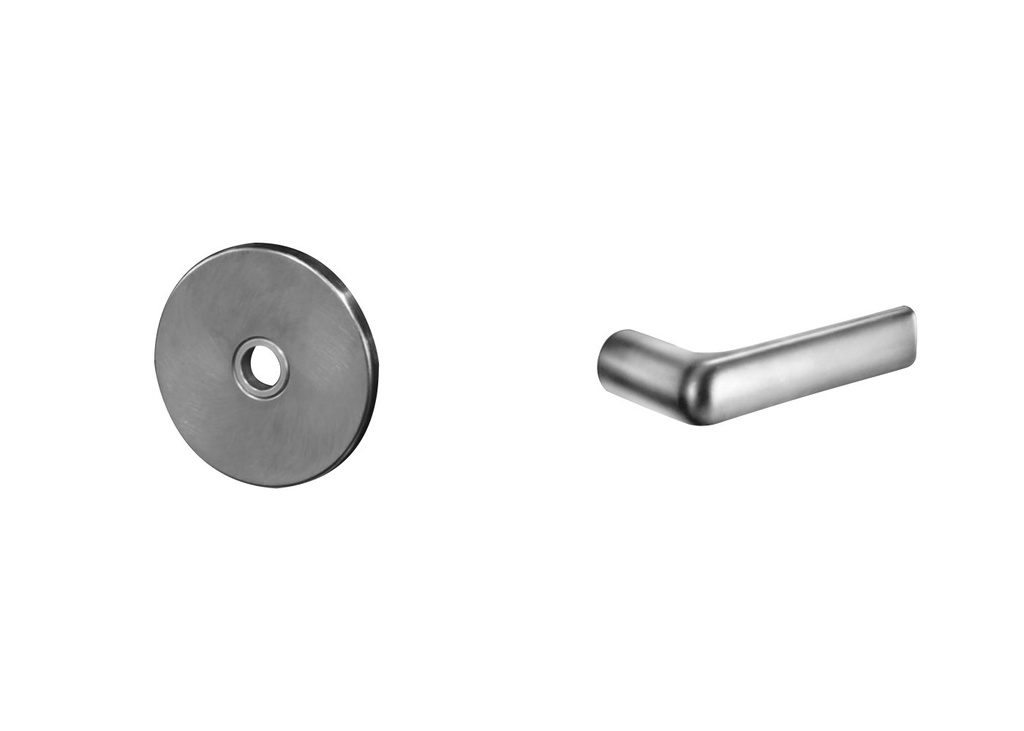

At 3-1/2" in diameter, the L Rose is the largest of the standard rose formats in the 8200 Series, presenting a broad ring of finished metal against the door face and leaving the surrounding surface uninterrupted. Paired with the E lever, the combination delivers a clean, unobtrusive appearance suited to corridors, storage areas, and institutional interiors where hardware should recede rather than dominate.

• Broad L Rose (3-1/2" dia): The 3-1/2" diameter rose gives the largest round bearing surface in the standard rose range, which is practical where an earlier preparation or a wear ring needs covering and where a full escutcheon would be more trim than the opening calls for. Only the outside carries a cylinder — this is a single-cylinder function — so the outside rose is the one diameter that defines the hardware's presence on the door face.
• Low-Effort Lever Operation: Only 30 degrees of lever rotation is required to retract the latchbolt fully. For facility staff, maintenance personnel, or anyone managing a high-volume storeroom, that reduced arc means less wrist effort per cycle — a meaningful ergonomic advantage over trim that demands a deeper throw.
• Through-Bolted, Interchangeable Trim: Trim, levers, and roses are through-bolted and fully interchangeable between rose and escutcheon configurations, ensuring proper alignment and a secure mechanical connection. Lever springs are contained inside the lock case rather than in the trim, which simplifies trim removal and reinstallation in the field without disturbing the spring mechanism.
• ADA Lever Design and Finish Options: The E lever complies with the American Disability Act — consult local authorities to confirm applicability in your jurisdiction. The LE trim is available in six finishes: 626 Satin Chrome (US26D), 630 Satin Stainless (US32D), 613E Oil Rubbed Bronze Equal (US10BE), 605 Polished Brass (US3), 612 Satin Bronze (US10), and 625 Polished Chrome (US26).

Function (Sargent Catalog)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• A Multi-Function 8200/7800 Lockbody

Key Product Features

• 16 Million Cycle Verified Durability: The Sargent 8200 Series lockbody completed a UL "above and beyond" cycle test at 16 million cycles (Verification ID: V584148), exceeding the ANSI/BHMA A156.13 Grade 1 requirement by 16 times. For a storeroom lock that may be keyed dozens of times daily, that margin is a direct indicator of service life.
• ANSI/BHMA A156.13 Series 1000 — Operational Grade 1 and Security Grade 1: The 8200 Series lockbody with standard trims is certified to both Operational and Security Grade 1. Note: when the LFIC (60) or SFIC (70) cylinder options are specified, the assembly does not meet Security Grade 1 requirements — an important consideration for specifications that mandate the full security rating.
• 12-Gauge Zinc-Dichromate Steel Case with Cold Forged Steel Hubs: The lock case is 12-gauge heavy-duty wrought steel, zinc dichromate plated, with a wall thickness of 7/64" (3mm). The 8200 Series uses cold forged steel hubs — paired with a high carbon steel spring cartridge — providing superior strength and cycle life. Cold forged steel hubs are specific to the 8200 line.
• UL/cUL 3-Hour Fire Door Listing and Positive Pressure: The lockset is UL and cUL Listed for A-label 4×10 single and 8×10 double (3-hour fire door) and lesser class doors. It also meets ANSI/UL 10C Positive Pressure Fire Test requirements. The armored front is stamped with the letter F and UL symbol to confirm the listing at the door.
• Cylinder and Keyway Options: This listing is offered in four cylinder configurations: LC (Less Cylinder) for owner-supplied or existing key systems; LA Keyway (standard, masterkey- and grand-masterkey-capable, with construction keying available); 60 — LFIC Less Core; and 70 — SFIC Less Core. The standard brass cylinder is size #41 (1-1/8"). LFIC and SFIC cores are not available on this listing — only the less-core options 60 and 70 are offered, and neither meets ANSI/BHMA A156.13 Security Grade 1.
• 10-Year Limited Mechanical Warranty: Sargent backs the 8200 Series lockbody with a 10-year limited mechanical warranty (warranty limited to replacement of the lockbody). The field-reversible lock body — re-handed without removing parts or opening the case — also reduces installation labor and the risk of callbacks when door swings change.

Technical Specifications

Ordering & Installation Information

The 8204 LE is a factory order item with a 3–4 week lead time; confirm availability before submitting a project schedule. Door preparation follows ANSI/SDI A250.14 modified per template 7057. The standard backset is 2-3/4" (70mm) only — no alternate backset is available — and the door stile must be a minimum of 4-1/2" (114mm); narrower stiles cannot accommodate the lockbody. The lockbody is standard for 1-3/4" (44mm) thick doors; the 8200 Series is offered for door thicknesses ranging from 1-3/8" to 6" — consult factory for non-standard thickness requirements. Lock body handing is field reversible without opening the case; the E lever trim is non-handed and requires no handing selection at time of order. Select from six finishes: 626, 630, 613E, 605, 612, or 625. Cylinder options on this listing are LC, LA, 60 (LFIC less core), and 70 (SFIC less core) — note that LFIC and SFIC cores do not meet Security Grade 1. The broader 8200 Series also offers MicroShield antimicrobial finish coating, status indicators, ElectroLynx electro-mechanical configurations, and vandalism-deterrent trim with secure fasteners as separately specified options — consult the series catalog for details.
