Sargent 8204 FEL Trim Storeroom or Closet Function Mortise Lockset

The Sargent 8204 FEL brings together the trusted engineering of the Sargent 8200 Series mortise lockset platform with the security-conscious FE Freewheeling Escutcheon and the clean, straight-profile L lever — purpose-built for storeroom and closet doors that demand controlled entry with unrestricted egress. Operating to ANSI F07 Storeroom or Closet function, the 8204 admits only by key from the outside while always allowing free passage from the inside, with no deadbolt and no thumbturn. The forged brass FE escutcheon sits flush over the full mortise pocket in the door face, covering the lock preparation with a substantial plate that also anchors the freewheeling trim mechanism. Suited to schools, universities, public buildings, and any exterior or back-of-house door exposed to heavy use or abuse, this lockset ships as a factory order on a 3–4 week lead time.

8204 Storeroom / Closet Function — ANSI F07: Key-Controlled Entry, Always-Free Egress

The ANSI F07 storeroom/closet function keeps the outside trim locked at all times — only a valid key retracts the latchbolt from the exterior. Inside, the lever always retracts the latchbolt freely, so occupants are never trapped. A stainless steel auxiliary deadlatch and a multi-function lockbody complete the assembly. There is no deadbolt, no thumbturn, and no occupancy indicator on this function.

• Key-Only Outside Entry: The outside lever is locked at all times; only a key retracts the latchbolt from the exterior. Because the trim itself is always locked, there is no push-button, no thumbturn, and no inside-to-outside snib — access control is solely through the cylinder.
• Always-Free Inside Egress: The inside lever always retracts the latchbolt regardless of the outside locked state, so occupants can exit without a key at any time. This satisfies life-safety egress requirements on storeroom and closet doors without any override procedure.
• Auxiliary Deadlatch — Stainless Steel, Non-Handed: A stainless steel auxiliary deadlatch guards against latchbolt manipulation. Because it is non-handed, the same latch assembly works in any door hand, and it does not need to be swapped when the lock body is re-handed in the field.
• Anti-Friction Latch and Multi-Function Lockbody: The one-piece stainless steel latchbolt delivers a 3/4" (19mm) throw with an anti-friction tip that reduces door-closing effort and wear on the strike. The lockbody is a Sargent Multi-Function 8200 design — the same case supports nine ANSI functions, so the hardware investment is not locked to a single application if door use changes.

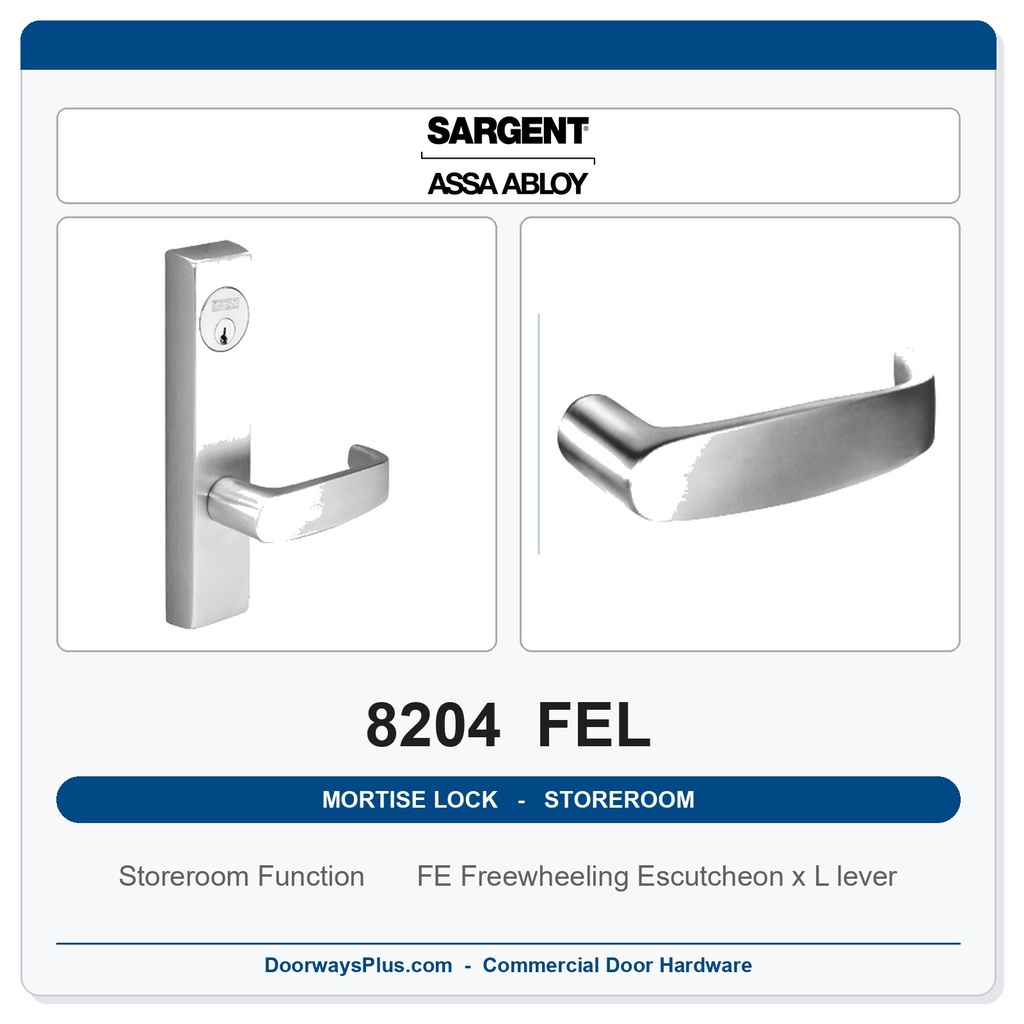

FE Freewheeling Escutcheon with L Lever: Forged Brass Plate, Straight Linear Profile

The FE Freewheeling Escutcheon is a forged brass outside escutcheon that covers the mortise preparation in the door face and provides added protection against vandalism. Paired with the straight, linear L lever — whose return comes within 1/2" (13mm) — this trim delivers a low-projection, architectural profile suited to high-traffic corridors and exterior doors alike.

• Freewheeling Outside Lever — 70-Degree Swing: In the locked mode the outside lever swings freely down to 70 degrees and automatically returns to its original position, so there is nothing to reset after an abusive force attempt. This design is specifically recommended for schools, universities, public buildings, back doors of businesses, and exterior doors where excessive or abusive force might be applied.
• Stainless Steel Lever Bushing: A stainless steel lever bushing at the outside lever pivot protects against wear at the point of highest repeated contact — important on high-cycle doors where bushing wear would otherwise allow lever slop to develop over time.
• L Lever Projection and ADA Lever-Return: The L lever has a return within 1/2" (13mm), keeping projection close to the escutcheon face. Only 30 degrees of lever rotation is required to retract the latchbolt. The lever-handle form complies with the Americans with Disabilities Act; consult local authorities to confirm applicability to your specific installation.
• Through-Bolted, Interchangeable Trim — Lever Springs Inside the Case: Trim is through-bolted and fully interchangeable between rose and escutcheon configurations, ensuring proper alignment. Lever springs are contained inside the lock case rather than in the trim, simplifying field installation and trim swaps. This trim is handed — specify LH, RH, LHR, or RHR when ordering; available in five finishes: 626 Satin Chrome, 613E Oil Rubbed Bronze Equal, 605 Polished Brass, 612 Satin Bronze, and 625 Polished Chrome.

Function (Sargent Catalog)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• A Multi-Function 8200/7800 Lockbody

Key Product Features

• 16 Million Cycle Verified Durability: The Sargent 8200 Series has completed a UL "above and beyond" cycle test at 16 million cycles — 16 times the ANSI/BHMA A156.13 Grade 1 requirement (Verification ID: V584148). This translates directly to longer service life on high-frequency storeroom doors before mechanical wear becomes a maintenance concern.
• ANSI/BHMA A156.13 Series 1000 — Operational Grade 1 and Security Grade 1: Certified with standard trims. Note: LFIC (option 60) and SFIC (option 70) cylinder configurations do not meet Security Grade 1 requirements; specify these options only where security grade is not a contract requirement.
• 12-Gauge Zinc-Dichromate Steel Case with Cold Forged Steel Hubs: The lock case is 12-gauge heavy-duty wrought steel, zinc dichromate plated, at 7/64" (3mm) thickness. The 8200 Series uses cold forged steel hubs — not sintered iron — combined with heavy-duty wrought steel hubs and a high-carbon steel spring cartridge for superior strength and cycle life.
• UL/cUL 3-Hour Fire Door Listed + UL 10C Positive Pressure: Listed to US and Canadian safety standards for A-label 4×10 single and 8×10 double (3-hour fire door) and lesser class doors; the armored front is stamped with the letter F and the UL symbol to confirm listing. Also meets ANSI/UL 10C positive pressure fire test requirements.
• Cylinder / Keyway Options for This Listing: Available as LC (Less Cylinder), LA Keyway, 60 (LFIC Less Core), or 70 (SFIC Less Core). Because this is FE freewheeling trim, the outside cylinder must be the longer #46 (1-3/4") — the heavier forged brass escutcheon requires it. The standard #41 (1-1/8") is the non-FE size and must not be specified for this outside trim; ordering a #41 for this position will result in a cylinder that is too short for the escutcheon.
• 10-Year Limited Mechanical Warranty and Field-Reversible Lock Body: Sargent backs the 8200 Series with a 10-year limited mechanical warranty (warranty limited to replacement of the lockbody). The lock body re-hands in the field without removing parts or opening the lock case, cutting installation time when door swing direction changes.

Technical Specifications

Ordering & Installation Information

Door Preparation: ANSI/SDI A250.14 modified per template 7057. The fixed backset is 2-3/4" (70mm) — no other backset is available, so confirm rough-frame and strike placement before ordering. A minimum stile width of 4-1/2" (114mm) is required; narrower stiles cannot house the mortise case. Standard door thickness is 1-3/4" (44mm); for 2" (51mm) or 2-1/4" (57mm) doors, specify the door thickness on the order. The lock body is field-reversible without opening the case, but this trim is handed — specify LH, RH, LHR, or RHR on every order. Cylinder options for this listing are LC (Less Cylinder), LA Keyway, 60 (LFIC Less Core), and 70 (SFIC Less Core); LFIC and SFIC cores do not meet ANSI/BHMA A156.13 Security Grade 1. Five finishes are offered: 626, 613E, 605, 612, and 625. This is a factory order with a lead time of 3–4 weeks. The broader Sargent 8200 Series also offers MicroShield® antimicrobial finish coating, ElectroLynx® electro-mechanical configurations, status indicators, push/pull ALP trim, and secure fastener options — available and separately specified on the Series.
