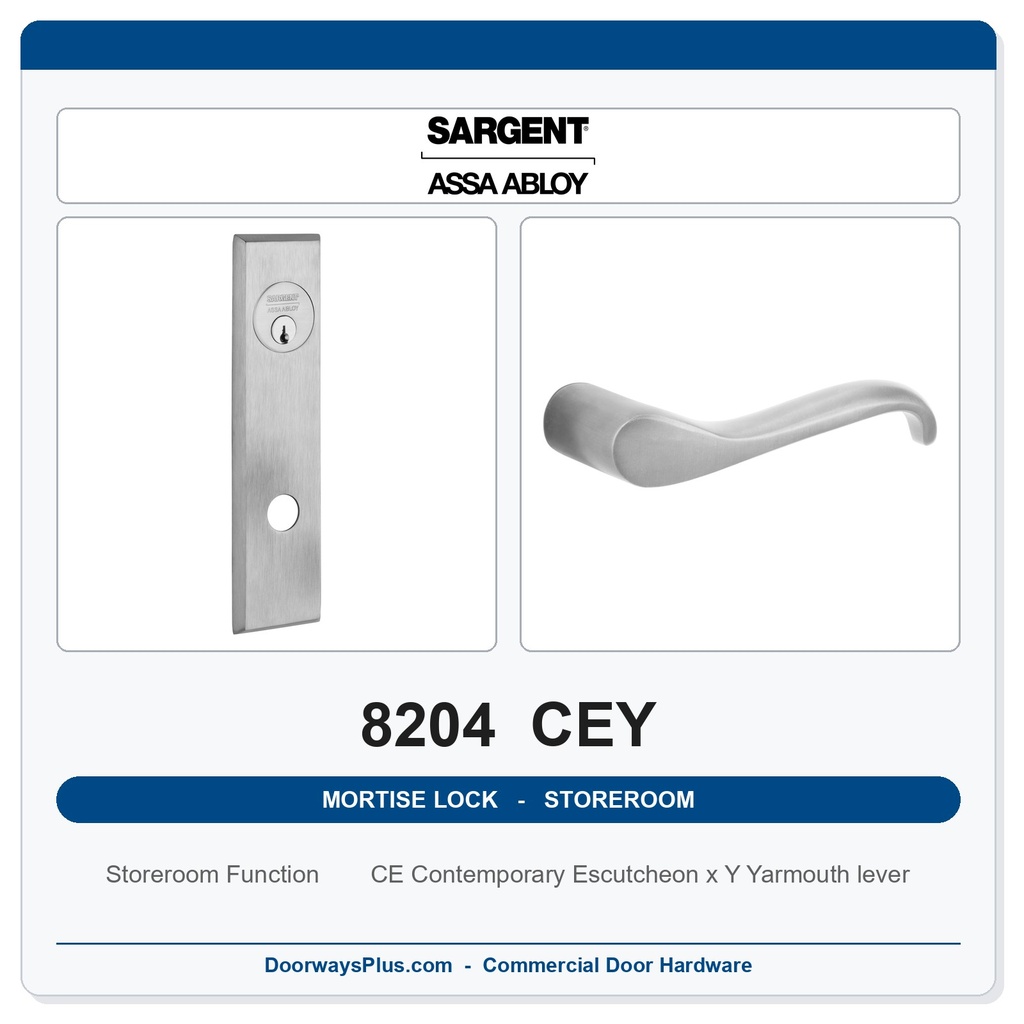

Sargent 8204 CEY Trim Storeroom or Closet Function Mortise Lockset

The Sargent 8204 CEY brings together the mechanical discipline of the Sargent 8200 Series mortise platform with a trim pairing chosen for environments where clean lines and coastal-ready durability matter in equal measure. Specifying the 8204 Storeroom/Closet function (ANSI F07), this lockset controls access exclusively from the outside by key while preserving unrestricted egress from the inside at all times — the correct operational profile for storage rooms, supply closets, and similar spaces where occupants must never be locked in. The CEY trim combines the CE Contemporary Escutcheon (2" x 7-7/8", beveled edge, Coastal Series) with the Y lever, presenting a refined escutcheon face across the mortise door prep and a lever whose detailing suits contemporary architectural interiors. Rated ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with standard cylinder options, this is a factory-order assembly built to a proven standard.

8204 Storeroom/Closet Function — ANSI F07: Key-Controlled Outside Entry, Always-Free Inside Egress

The 8204 (ANSI F07) is a single-cylinder storeroom/closet function: a key outside retracts the latchbolt and the outside trim remains locked at all times, while the inside trim always retracts the latchbolt freely. The 8204 has no deadbolt, no thumbturn, no occupancy indicator, and no electrification — it is a purely mechanical, key-outside-only access control function.

• Key-Only Outside Entry: The outside trim is locked at all times; only a valid key retracts the latchbolt from the corridor side. Because there is no pushbutton, no thumbturn, and no hold-open mode, the door cannot be left unsecured from the outside — the correct behavior for a storeroom or supply closet that must stay controlled between authorized visits.
• Always-Free Inside Egress: The inside trim always retracts the latchbolt, with no mode or setting that can trap an occupant. This unconditional egress behavior is fundamental to life-safety compliance in occupied spaces and is built into the ANSI F07 function definition itself.
• Stainless Steel Auxiliary Deadlatch: The auxiliary deadlatch is stainless steel and non-handed. When the door is fully closed, the deadlatch is depressed by the strike, preventing the latchbolt from being slipped or retracted by lateral force — a protection that functions passively on every closure without any action by the user.
• Anti-Friction Latchbolt and Multi-Function Lockbody: The one-piece stainless steel latchbolt provides a 3/4" (19mm) throw with an anti-friction feature that eases door closing. The lockbody is Sargent's Multi-Function 8200 one lockbody covers nine functions, so a single case can be stocked instead of nine.

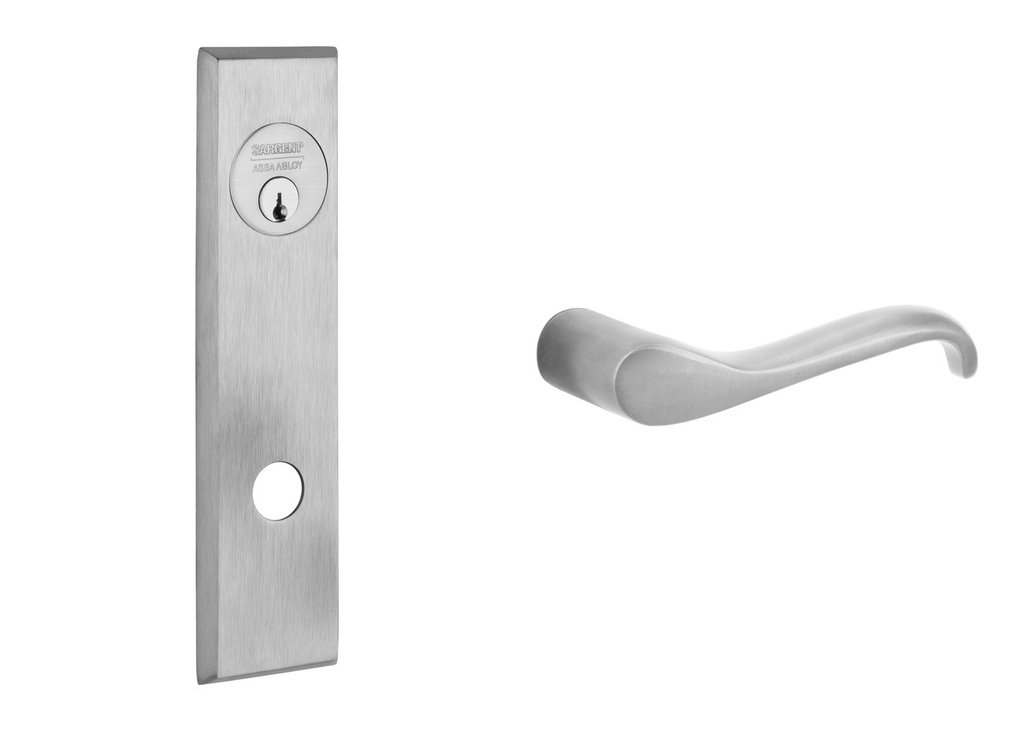

CE Contemporary Escutcheon (2" x 7-7/8", beveled edge, Coastal Series) with Y Lever — Refined Coverage, Clean Contemporary Profile

The CEY trim pairs the CE Contemporary Escutcheon (2" x 7-7/8", beveled edge, Coastal Series) with the Y lever to deliver a trim plate whose face spans the mortise pocket in the door stile, presenting a composed, uninterrupted surface. The Y lever's contemporary detailing gives the assembly a precision-machined character well suited to modern commercial and institutional interiors.

• CE Contemporary Escutcheon (2" x 7-7/8", beveled edge, Coastal Series): The escutcheon plate covers the lock area across the mortise door prep, presenting a clean face on the door stile. The Coastal Series designation signals a finish selection curated for durability in higher-humidity or coastal environments — pair with one of the corrosion-resistant finishes offered for this listing when environmental exposure is a factor.
• 30-Degree Lever Operation: Only 30 degrees of lever rotation is required to fully retract the latchbolt. In practical terms, this means lighter operating force and a shorter arc of travel — relevant to high-traffic doors and to accessibility considerations. The lever complies with the Americans with Disabilities Act; consult local authorities to confirm applicability to your specific installation.
• Through-Bolted, Interchangeable Trim: Trim, including this escutcheon and Y lever assembly, is through-bolted and fully interchangeable between rose and escutcheon configurations to ensure proper alignment. Lever springs are contained inside the lock case rather than in the trim, which simplifies trim removal and reinstallation without losing spring components.
• Handing and Finish Selection: This trim is handed — specify LH, RH, LHR, or RHR when ordering, as the trim cannot be field-reversed. six finishes are available for this listing: 626 Satin Chrome (US26D), 613E Oil Rubbed Bronze Equal (US10BE), 605 Polished Brass (US3), 612 Satin Bronze (US10), and 625 Polished Chrome (US26).

Function (Sargent Catalog)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• A Multi-Function 8200/7800 Lockbody

Key Product Features

• 16 Million Cycle Endurance: The Sargent 8200 Series completed UL cycle testing at 16 million cycles — exceeding the ANSI/BHMA A156.13 Grade 1 cycle requirement by 16 times (Verification ID: V584148). That margin is not incidental; it reflects the cold forged steel hubs and high-carbon steel spring cartridge that the 8200 case is built around, and it translates directly to reduced service intervals in high-traffic facilities.
• ANSI/BHMA A156.13 Series 1000 — Operational Grade 1 and Security Grade 1: Certified with standard trims. Note: LFIC (option 60) and SFIC (option 70) cylinder configurations do not meet the Security Grade 1 requirement — specify LA keyway or LC less-cylinder if Security Grade 1 must be maintained throughout.
• 12-Gauge Heavy-Duty Wrought Steel Case: The lock case is 12-gauge wrought steel, zinc dichromate plated, with a wall thickness of 7/64" (3mm) /.109". The 1/8" (.125") cold-rolled steel inside front holds the lock body securely in the door cutout, maintaining alignment under repeated use.
• UL/cUL Fire Listing and Positive Pressure: Listed to UL and cUL standards for A-label 4×10 single and 8×10 double (3-hour fire door) and lesser classifications, for both US and Canadian safety standards. Also meets ANSI/UL 10C Positive Pressure Fire Test of Door Assemblies. The armored front is stamped with the F designation and UL symbol confirming the listing.
• Cylinder and Keyway Options: Four options are offered on this listing: LC (Less Cylinder) for owner-supplied cores; LA Keyway (standard brass #41 / 1-1/8" cylinder, masterkey and grand master-key capable, construction keying available, two nickel-silver keys included); 60 (LFIC Less Core); and 70 (SFIC Less Core). LFIC and SFIC configurations do not meet ANSI/BHMA A156.13 Security Grade 1 requirements.
• 10-Year Limited Mechanical Warranty and Field-Reversible Lock Body: Sargent's 10-year limited mechanical warranty covers the lock body. The lock body is field reversible — it can be re-handed without removing parts or opening the lock case — reducing installation errors and simplifying future door replacements.

Technical Specifications

Ordering & Installation Information

The 8204 CEY requires a door prepared to ANSI/SDI A250.14 modified per template 7057. Standard door thickness is 1-3/4" (44mm); the 8200 Series is offered across a range from 1-3/8" to 6" for special applications. The fixed 2-3/4" (70mm) backset is not adjustable — confirm your door prep matches before ordering. A 4-1/2" (114mm) minimum stile width is required; narrower stiles cannot accept this lock body. The lock body is field reversible without opening the case; however, this trim is handed — specify LH, RH, LHR, or RHR as a separate ordering decision. Select from six finishes: 626, 630, 613E, 605, 612, or 625. Cylinder options: LC, LA, 60 (LFIC less core), or 70 (SFIC less core); note LFIC and SFIC do not meet Security Grade 1. This is a factory order with a 3–4 week lead time. The broader Sargent 8200 Series offers optional configurations including MicroShield antimicrobial coating, ElectroLynx electro-mechanical functions, status indicators, and vandalism-deterrent trim — consult DoorwaysPlus for separately specified assemblies.
