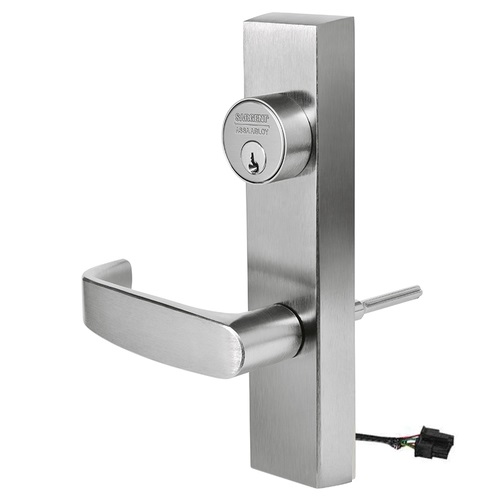

Sargent 776 ETL Fail-Secure Electrified Exit Lever Trim – 24VDC
**** Note: This is intended for Narrow Stile (8300 Series) and Wide Stile (8900 Series) Mortise Exit Devices ****
The Sargent 776 ETL is a high-security electrified outside trim specifically designed for Sargent 80 Series Mortise Exit Devices. Engineered for use on both Narrow Stile (8300 Series) and Wide Stile (8900 Series) doors, this trim provides a robust, electronically controlled entry solution with a vital mechanical key override. Featuring Fail-Secure operation and energy-efficient EcoFlex technology, the 776 ETL is the premier choice for centralized access control in hospitals, universities, and commercial offices.
Advanced Security with EcoFlex™ Technology
The 776 ETL is part of the legendary Sargent 700 Series, known for its through-bolted design that ensures superior security and durability in high-traffic environments.
- Fail-Secure (Power-to-Unlock) Operation: In this configuration, the lever is locked when power is off. Access is only granted when 24VDC power is applied, ensuring the exterior remains secured during power outages.
- Mechanical Key Retraction: As a 76 Function trim, it features a cylinder hole that allows a mortise cylinder (sold separately) to mechanically retract the latchbolt. This provides a critical manual backup for authorized personnel even when the power is down.
- EcoFlex Technology: This trim utilizes an advanced actuator that reduces energy consumption by up to 95%. With a continuous draw of just 15mA, it allows for more devices per power supply and prevents heat buildup at the door.
- Vandal-Resistant Grade 1 Build: The ETL escutcheon and L-Lever are ANSI/BHMA Grade 1 certified, designed to withstand the physical demands of high-use institutional corridors.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 776 ETL |
| Voltage | 24VDC (Regulated/Filtered) |
| Locking State | Fail-Secure (Power Off Locks Lever) |
| Compatible Devices | 8300 Narrow Stile & 8900 Wide Stile Mortise |
| Finish | US26D (626) Satin Chrome |
| Function | 76 Function (Electrified with Key Override) |
| Current Draw | 15mA Continuous @ 24VDC (EcoFlex) |
| Cylinder Type | Requires Rim Cylinder (Included unless ordered Less Cylinder) |
| Handing | Handing Required (Specify LHR or RHR) |
High-Intent Commercial Applications
The Sargent 776 ETL 24VDC is a critical component for facility managers who prioritize perimeter security and centralized electronic locking.
- Secure Staff Entrances: Ideal for hospital wings or labs that require card-reader access during business hours and a physical key for emergency backup.
- Commercial Office Suites: Provides a clean, modern aesthetic in US26D that matches other architectural hardware while providing top-tier security.
- Education & Campus Security: Enables centralized locking management for classroom or office doors equipped with mortise exit hardware.
- Life-Safety Compliance: While the exterior is access-controlled, the interior 80 Series mortise device always ensures immediate, free egress for building occupants.
Critical Ordering & Installation Notes
- Handing Information: This trim is handed and is not field-reversible. You must confirm and specify Left Hand Reverse (LHR) or Right Hand Reverse (RHR) based on your door swing when placing your order.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Door Handing | RHR or LHR |
| Cylinder Options | LA Keyway or Less Cylinder |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Trim Design | ETL |
| Voltage | 24 VDC |
| Exit Device Trim Function | Fail Secure |
