Sargent 713-4 ETL US26D Outside Trim – Concealed Vertical Rod Classroom Solution

This is intended for:

• Narrow Stile (8400 Series) and Wide Stile (8600 Series) Concealed Vertical Rod Exit Devices

The Sargent 713-4 ETL US26D Outside Trim is a high-performance architectural hardware solution specifically engineered for the unique mechanics of Concealed Vertical Rod (CVR) exit devices. Operating in a Classroom Function (ANSI 08), this trim allows the exterior lever to be locked or unlocked by key. When unlocked, the lever remains active, permitting free entry without a key—a vital operational efficiency solution for schools, universities, and commercial offices that require high-traffic access during the day and rigid security at night. Finished in a durable US26D (Satin Chrome), the ETL lever design provides an ADA-compliant solution that balances ergonomic ease with industrial-strength protection.

Designed for precision, the Sargent 713-4 ETL is a compatibility solution tailored for Narrow Stile (8400 Series) and Wide Stile (8600 Series) CVR systems. Unlike standard rim trims, the 713-4 features a specialized internal lift mechanism that synchronizes with the rods hidden inside the door. By providing a through-bolted, solid attachment, this trim acts as a structural reinforcement solution, ensuring that the exterior handle can withstand heavy use without losing alignment with the internal CVR mechanics—protecting the integrity of your life safety exit hardware while maintaining a clean, hardware-minimalist aesthetic.

Mechanical Utility & ANSI Function Summary

The 713-8 ETL trim is designed to provide seamless transitions between public access and high-level security:

• Classroom Function (ANSI 08): The key unlocks the lever, allowing entry without the key. The key also locks the lever, reverting it to a rigid state. This serves as a security-management solution for facilities with shifting occupancy needs.
• CVR Mechanical Integration: Specifically timed to actuate the internal vertical rods of the 8400/8600 series, ensuring both top and bottom latches retract fully for a smooth-operation solution.
• ANSI/BHMA Grade 1 Performance: Certified to the highest industry standards for durability and cycle life, making it a long-term reliability solution for high-occupancy buildings.
• ADA Accessibility: The lever design meets all federal requirements for easy operation without grasping or twisting, providing a compliance solution for public-facing openings.

Technical Specifications

Engineered Solutions for Facility Access Management

The Sargent 713-4 ETL addresses the specific technical and logistical challenges of modern facility management:

• Concealed Rod Optimization: Standard trims often fail to fully retract concealed rods, leading to floor-strike dragging. The 713-4 is the primary mechanical solution for the 8400/8600 Series, ensuring rods clear the strikes every time.
• Vandal-Resistant Security: Through-bolted mounting to the interior chassis acts as a vandal-deterrent solution, preventing the trim from being pulled or twisted away from the door under extreme force.
• Aesthetic Uniformity: The Satin Chrome finish provides a design-unified solution, allowing the exterior trim to match the interior exit device and other nearby hardware like hinges and closers.
• Life Safety Compliance: While the exterior can be locked, the interior exit device always allows for immediate, uninhibited egress. This is a critical life-safety solution for fire code compliance.
• Precision Handing Adjustment: Because the 713-4 ETL is handed, it ensures the internal lift-finger is perfectly oriented for the door's swing, providing a smooth-operation solution that reduces key-turn resistance.

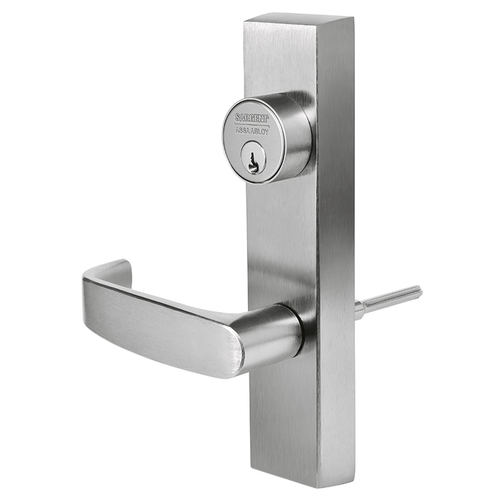

Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.

For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
