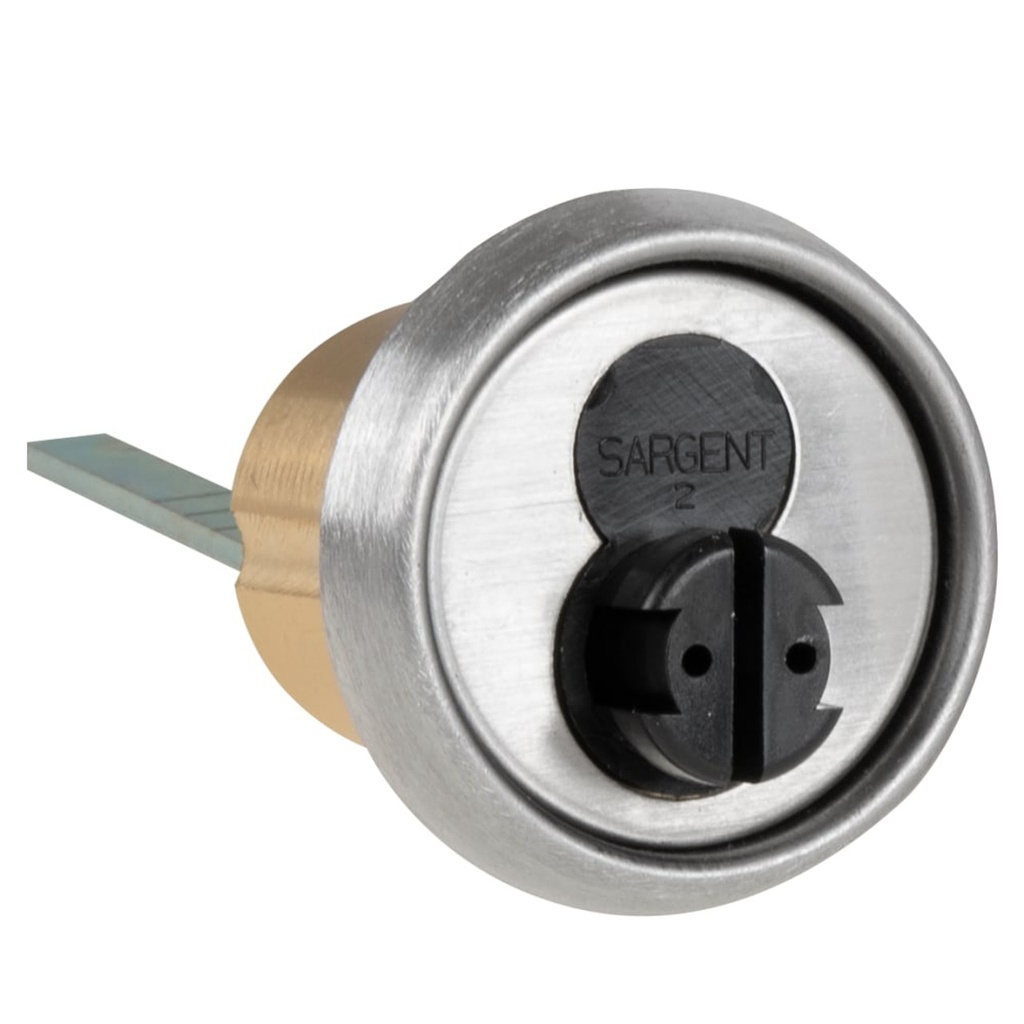

Sargent 60-34 LFIC Rim Cylinder Housing | Large Format Interchangeable Core

The Sargent 60-34 LFIC Rim Cylinder Housing is a high-security, architectural-grade component engineered for facilities that require frequent, rapid re-keying. Designed for use with Large Format Interchangeable Cores (LFIC), this housing allows security personnel to replace the locking core in seconds without dismantling the exit device or the door trim. It is a critical component for hospitals, universities, and commercial complexes utilizing Sargent 6300 Series cores.

Machined from solid brass bar stock, the 60-34 provides exceptional durability and smooth mechanical operation. It features a specialized 27/32" screw pattern specifically designed to be bolted thru Sargent exit devices, ensuring a rigid and tamper-resistant connection. This housing is shipped with a 60-prefix disposable plastic core, allowing the door to be operated with a coin or flathead screwdriver during the construction phase before permanent high-security cores are installed.

Professional Grade Security & Precision

• LFIC Compatibility: Optimized for Sargent 6300 Series Large Format Interchangeable Cores, offering the most efficient key management solution for large facilities.

• Solid Brass Construction: The heavy-duty solid brass body ensures maximum resistance to corrosion and physical wear, outperforming standard die-cast alternatives.

• Thru-Bolt Stability: The 27/32" mounting pattern provides a high-security attachment that prevents the cylinder from being twisted or pulled from the door face.

• Complete Trim Package: Includes the No. 97 (1/4") Trim Ring, rosette, compression ring, and break-off screws for a clean, professional flush-mount finish.

• Construction Ready: The included disposable plastic core protects your final master key system from construction dust while providing immediate access during build-out.


Technical Specifications

Installation & Compatibility

The Sargent 60-34 is the industry standard for use with Sargent 80 Series and 90 Series exit devices. The horizontal tailpiece is specifically timed for rim-mounted panic bars. Please note that the permanent Large Format Interchangeable Cores are sold separately, allowing you to choose the specific keyway and keying level required for your master key system.

Available at DoorwaysPlus.com in a full range of architectural finishes, including Satin Chrome (626) and Bright Brass (605), to ensure a perfect match with your existing hardware.
