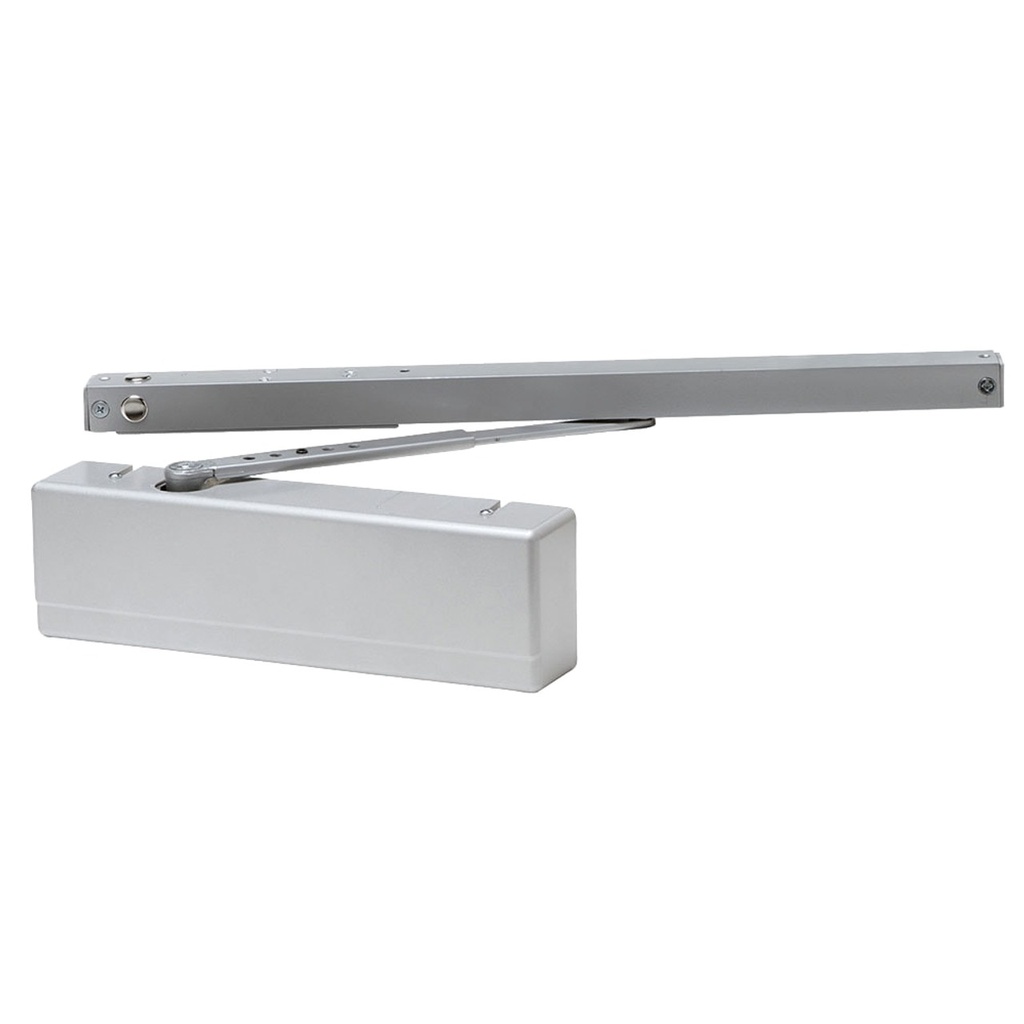

Sargent 351 HTB Powerglide® Door Closer | Pull Side Hold Open Track Arm with Bumper
The Sargent 351 HTB Door Closer is an elite, high-traffic door control solution that combines a sleek architectural profile with heavy-duty durability. As a specialized model in the Powerglide® 351 Series, the 351 HTB features a Pull Side Hold Open Track Arm equipped with an integrated Track Bumper. This design is ideal for modern commercial interiors where a low-profile aesthetic is required, providing both the convenience of a variable hold-open and a cushioned bumper to assist the hydraulic backcheck.
Forged from a specialized 14% silicon aluminum alloy, the one-piece die-cast body is engineered to exceed 25 million cycles. The heat-treated full closed rack and pinion ensures total control from the full open position. With adjustable spring power from Size 1 to 6, this non-handed closer is a versatile "one-box" solution that meets ADA accessibility requirements while providing the robust force needed for fire-rated doors.
Advanced Architectural Features & Performance
- Integrated Track Bumper: The HTB track includes a specialized bumper that mounts within the extruded aluminum track to assist the backcheck, protecting the door and hardware from damage during forceful opening cycles.
- Variable Hold Open Function: The forged steel arm works with an adjustable holder mounted within the track, allowing the door to be secured in an open position for deliveries or high-frequency transition periods.
- Precision Hydraulic Regulation: Features separate, low-sensitivity brass valves for independent regulation of closing speed, latching speed, and backcheck intensity.
- All-Weather Reliability: Pre-filled with all-weather hydraulic fluid, ensuring the closer operates effectively in extreme temperatures without the need for seasonal valve adjustments.
- Vandal Resistant: All adjustment valves are controlled by an 1/8" Allen wrench and are captivated within the body to prevent accidental removal or tampering.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 351 HTB (Hold Open Track with Bumper) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Arm Type | Forged Steel Arm with Extruded Aluminum Track |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Piston Diameter | 1-1/2" for Industrial-Strength Control |
| Door Width | Suitable for interior doors up to 5'0" wide |
| Fire Rating | UL/cUL Listed (Up to 3-hour fire doors) |
| Warranty | 25-Year Limited Mechanical Warranty |
Installation & Customization Options

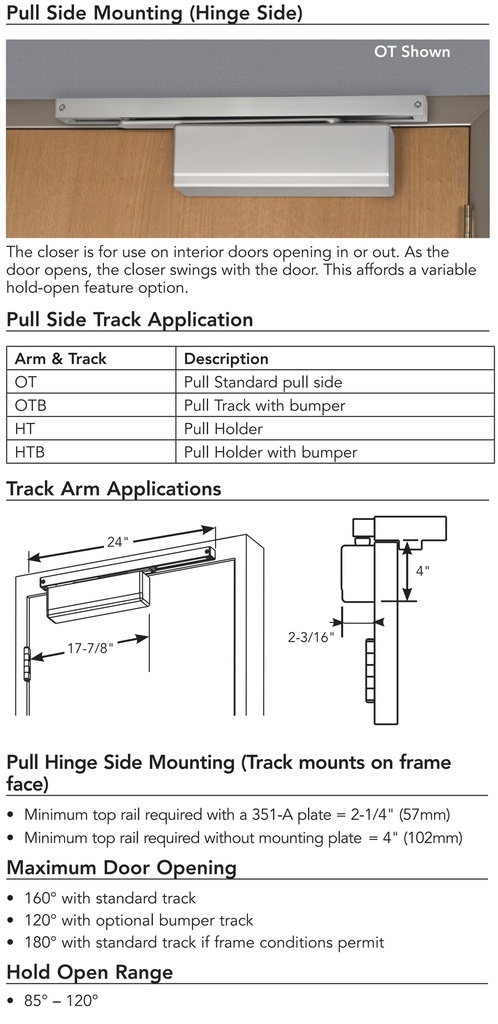

The Sargent 351 HTB is designed for pull-side mounting on the door leaf with the track on the frame face. The package includes self-sticking templates and all necessary fasteners. For maximum stability on wood or mineral core doors, it is recommended to use the included Sargent thru bolts.
- Standard Finishes: Available in high-durability powder-coated finishes: EN (Aluminum Enamel), EB (Dark Bronze Enamel), and EAB (Brass Enamel). Additional finishes such as ED, EP, and powder-coated options are available for all exposed surfaces.
- MicroShield® Technology: Available with an optional antimicrobial silver-based finish that permanently suppresses the growth of bacteria, algae, fungus, and mold.
- Safety Note: The integrated track bumper is designed to assist backcheck and is not a replacement for a required auxiliary floor or wall stop.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 351 Series |
| Closer Arm Type | Track Arm |
| Hold Open | Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
