Sargent 351 Closer x UO - Universal arm

https://www.doorwaysplus.com/web/image/product.template/835/image_1920?unique=1fa258b

Sargent 351 Closer x UO - Universal arm
Lead Time: 1-5 Business Days

518.77 518.77 USD 518.77

518.77

Not Available For Sale


  • Closer Finish
  • Brand
  • Series
  • Closer Arm Type
  • Hold Open
  • Closer Body Hole Pattern

This combination does not exist.


Share :

Sargent 351-UO Closer, Universal arm: Regular, Top Jamb or Parallel Arm Mounting

Features

• Certified ANSI/BHMA A156.4 Grade 1
• Conforms to UL10C and UBC for positive pressure fire test
• UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors
• 25 year limited warranty
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications
• Adjustable spring power allows 351 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications. All 351 are non-handed
• Meets ADA requirements in all applications, except Push Side Track application (except track)
• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2" diameter piston for superior door control
• Standard pressure relief valves for both opening and closing cycles protect the door & frame from damage caused by abuse

Heavy Duty Construction

• Heat treated full closed rack and pinion provide control from the full open position
• Heavy duty one piece die cast aluminum silicon alloy body with 14% silicon provides superior strength and wear resistance
• 1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint

Fasteners

• Machine Screws and self tapping screws provided for closer and arm
• In addition, wood screws supplied when installed on wood doors without through bolts

Valves

• Brass body low sensitivity control valves offer separate regulating for door speed, latching, backcheck and optional delayed action
• All valves are controlled by an 1/8” allen wrench to discourage tampering and are captivated to prevent removing valves from the body and damaging door closer
• Adjustable backcheck (standard) protects the door and hardware from damage during the opening cycle
• Adjustable delayed action (optional) permits easy access for physically impaired individuals
• Valves are captivated to prevent accidental removal

Full Complement of Arm Types

• Interchangeable forged steel arms
• Standard and parallel arms
• Push and pull track arms (including double egress)
• Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 351, 1431 and 281 Series

Innovation

• SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold
and mildew. EPA and NSF approved and FDA listed.

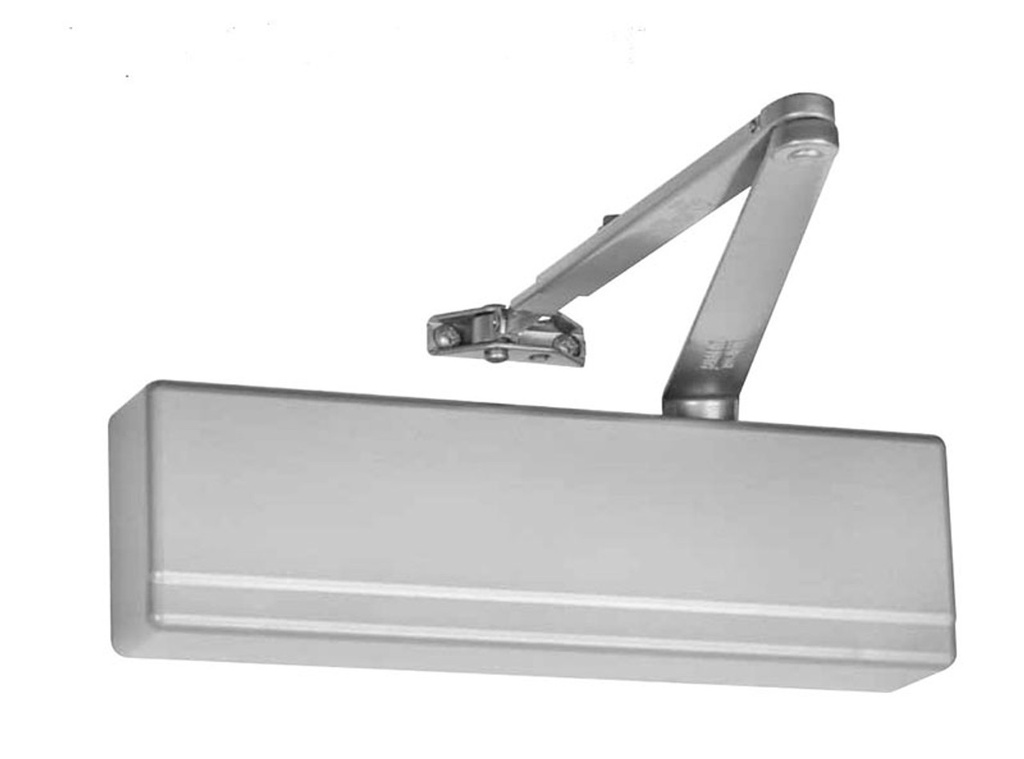

Regular Arm Mounting:

The standard application of the 351 door closer is the most common and the most desirable. The closer mounts on the hinge (pull) side of door (except when the W Corner Bracket is used). Note: This application is not recommended on exterior doors (the closer is not protected from weather). The cover projection normally limits the door opening to a maximum of 160°.







Top Jamb Mounting:

Top Jamb applications for reveals up to 2" - The 351 closer is mounted on the frame face above the door. The foot is mounted on the push side of door. This application is for use on exterior doors opening out to protect the closer from the weather.

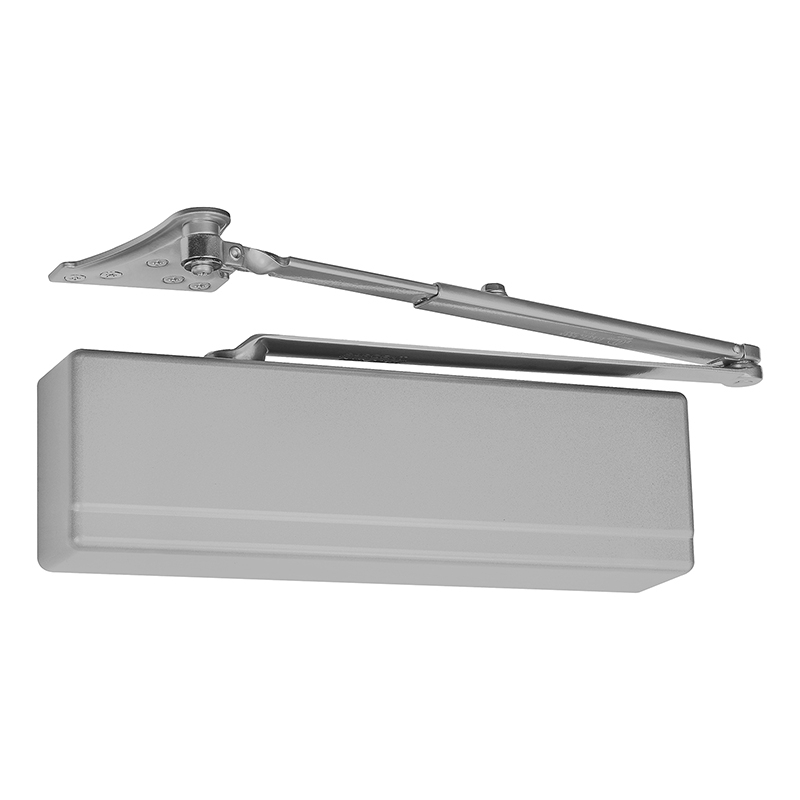

Parallel Arm Mounting:

Parallel Arm Applications - The 351 closer is mounted on the push side of the door. As the door opens, the closer swings with the door and gives full headroom in the door opening. Other advantages: the closer arm does not project into the room; the frame can be quite narrow and the door can be swung open much farther than in Top Jamb Applications.





3 offered finishes: EN = Aluminum Enamel, EB = Bronze Enamel, EAB = Brass Enamel




Closer Finish EN - Aluminum or EB - Dark Bronze or EAB -Brass Enamel
Brand Sargent
Series Sargent - 351 Series
Closer Arm Type Tri Pack - Reg/Par Arm
Hold Open Non-Hold Open
Closer Body Hole Pattern 9" x 2 1/2"
