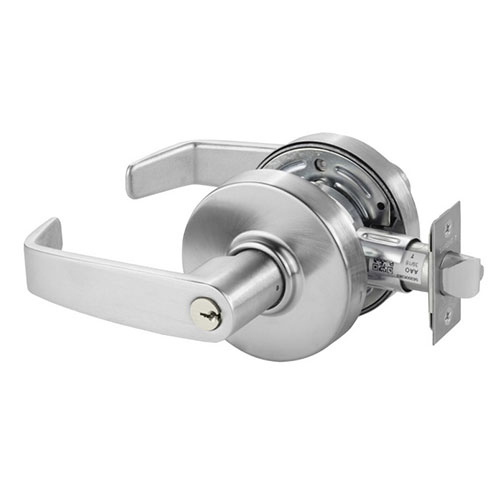

Sargent 28-7G04 LL Storeroom Function, Cylindrical Lockset
Function Information:
All Locks and Latches include 4 7/8" ASA Strike - Only. 2 1/4" Full Lip Strikes and 2 3/4" T Strikes are available separately
Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
Backset | 2-3/4" Backset or 2-3/8" Backset |
Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
Brand | Sargent |
ANSI Cyl Lock Function | F86 - Storeroom |

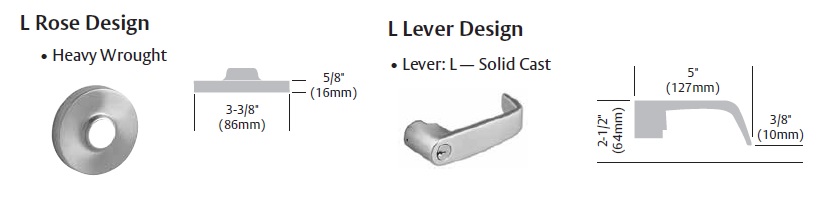

Trim Design | LL |
Series | Sargent - 7 Line |
Sargent 7 Line Catalog
Download
