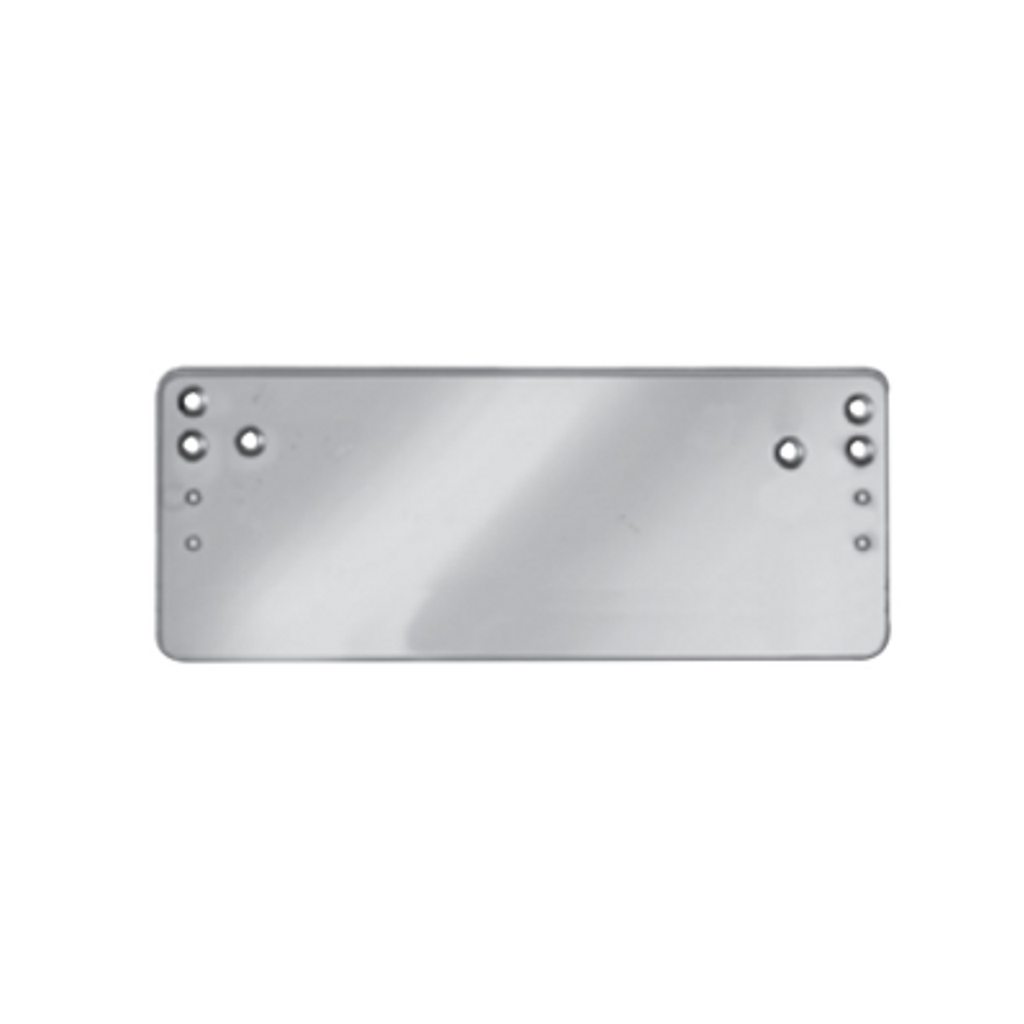

Sargent 1431-D Drop Bracket - Parallel Arm Narrow Top Rail Solution

The Sargent 1431-D Drop Bracket is a specialized mounting accessory engineered to solve installation hurdles on doors with limited overhead space. Designed specifically for the Sargent 1431 Series Powerglide® Door Closer, this drop plate is a required structural solution for parallel arm applications where the door's top rail is too narrow to accommodate the standard mounting pattern. By lowering the mounting position of the closer body, the 1431-D ensures a secure and stable attachment, preserving the integrity of the door and the performance of the hardware.

Ideally suited for aluminum storefronts and modern office doors with slim profiles, the 1431-D allows for a professional installation on rails as narrow as 3" (76mm). Without this plate, a parallel arm closer would lack the necessary surface area for a safe mount on rails under 5-3/4", leading to potential hardware failure or door damage. This non-handed bracket is manufactured from high-strength materials and is available in powder coat finishes—including Aluminum, Dark Bronze, and Black—to perfectly match your Sargent Powerglide® closer for a cohesive, high-end aesthetic.

Parallel Arm Mounting & Top Rail Utility Summary

The 1431-D Drop Bracket serves as a vital adapter for the "Push Side" of the door, where clearance is often restricted by the door's design:

• Narrow Rail Capability: Enables the installation of heavy-duty parallel arm closers on doors with top rails between 3" and 5-3/4".
• Structural Reinforcement: Acts as a stabilization solution, distributing the closing force across the plate to prevent mounting screws from pulling out of thin-walled aluminum or hollow metal doors.
• Parallel Arm Efficiency: In parallel arm (Push Side) setups, the closer is protected from the weather and vandalism. The 1431-D maintains this security solution even when door geometry is non-standard.
• ANSI/BHMA Grade 1 Support: By providing the correct mounting geometry, this plate ensures the Sargent 1431 continues to meet ANSI/BHMA A156.4 Grade 1 standards for millions of cycles.

Technical Specifications

Engineered Solutions for Architectural Constraints

The Sargent 1431-D provides essential technical solutions for facility managers and glaziers:

• Aluminum Storefront Solution: Narrow-stile aluminum doors frequently feature top rails that cannot support a standard 1431 footprint. The 1431-D is the primary retrofit solution for these common commercial openings.
• Simplified Compliance: Ensuring the closer is mounted securely is a Life Safety solution. This bracket ensures that the door closer remains firmly attached during high-traffic use, meeting ADA opening force and NFPA fire code requirements.
• Aesthetic Preservation: Since the plate is available in a powder coat finish to match, it provides a clean-line design solution, hiding the mechanical necessity of the drop behind a professional, color-matched facade.
• Inventory Efficiency: Being non-handed, the 1431-D acts as a universal field solution, reducing the need for multiple SKUs on service trucks and ensuring the correct part is always on hand for any 1431 parallel arm repair.
• Structural Longevity: By lowering the closer body away from the very top edge of the door, it serves as a preventative maintenance solution, reducing stress on the most vulnerable part of the door rail.
