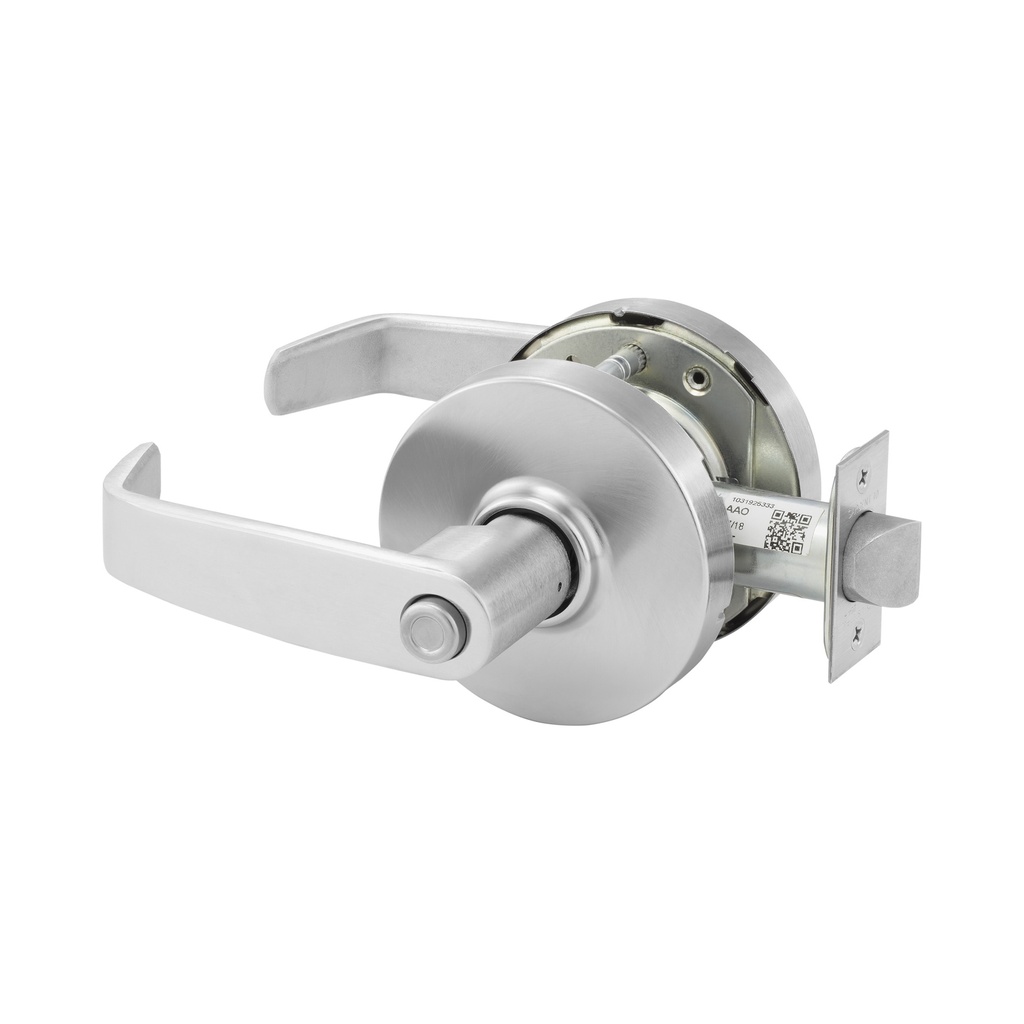

Sargent 28-10XG64 LL Time Out Lock
Function Information:
The Sargent 28-10XG64 LL is an industrial-grade Grade 1 Cylindrical Lock specifically engineered for "Time Out" or specialized privacy applications. As a standout model in the Sargent 10X Line, this hardware is designed for the most demanding institutional environments, including schools, behavioral health facilities, and high-traffic public buildings. The 10XG64 features a unique interior pushbutton locking mechanism combined with an exterior cylinder that provides both keyed access and a visual occupancy indicator, ensuring safety and clarity in sensitive environments.
Engineered for Institutional Durability
The Sargent 10X line is built to survive extreme conditions that cause standard locks to fail. While traditional Grade 1 locks are tested to 1 million cycles, this device is UL verified to exceed 20 million cycles. It is constructed to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, making it nearly impenetrable to vandalism. Its independent return springs ensure the linear LL lever stays perfectly level, eliminating lever sag even after decades of high-frequency use.
Specialized "Time Out" Functionality
The Time Out (F92 modified) function is designed for controlled privacy. The outside lever is locked by the inside pushbutton. When locked, the exterior occupancy indicator signals that the room is in use. To ensure life safety, rotating the inside lever always allows for immediate free egress and automatically releases the pushbutton. From the outside, a key in the cylinder will retract the latchbolt and unlock the lever. This configuration is essential for areas requiring temporary privacy with a reliable staff override and a clear visual status.
Key Product Features
- Time Out / Privacy Function: Interior pushbutton locking with exterior keyed override and visual occupancy indicator.
- Unmatched Cycle Life: UL-verified for 20 million cycles, outperforming ANSI/BHMA A156.2 standards by 20 times.
- Vandal-Proof Engineering: Features a freewheeling locked lever to deflect excessive force and prevent forced entry.
- Superior Latch Security: Includes a stainless steel deadlocking latch with 1/2" throw, designed to operate even under 100 lbs of latch preload.
- ADA & Life Safety: Ergonomic LL lever design meets accessibility requirements and is UL/cUL Listed for 3-hour fire doors.
- Severe Weather Rated: Windstorm and Hurricane certified, including compliance with the Florida Building Code.
Technical Specifications
| Feature | Details |
| Function | 64 Time Out / Privacy with Indicator |
| Series | 10X Line Heavy-Duty Cylindrical |

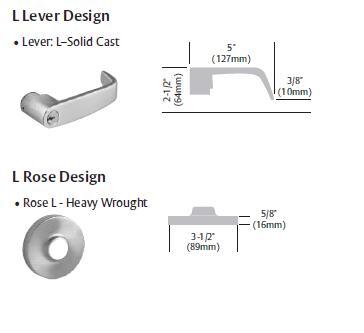

| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Cylinder | 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- Educational Facilities: Specialized "time out" rooms or private sensory areas.
- Behavioral Health: Controlled privacy for consultation rooms and patient-accessible areas.
- Public Restrooms: High-traffic areas requiring a clear "occupied" signal and durable keyed access.
- Healthcare Environments: Staff changing rooms or private lactation rooms.
Ordering & Installation Information
The Sargent 28-10XG64 is non-handed, making it adaptable to any door swing. For doors thicker than 2", please specify the 31- Option for extended mounting hardware. This chassis is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, ensuring it can be integrated into your facility's master key system.

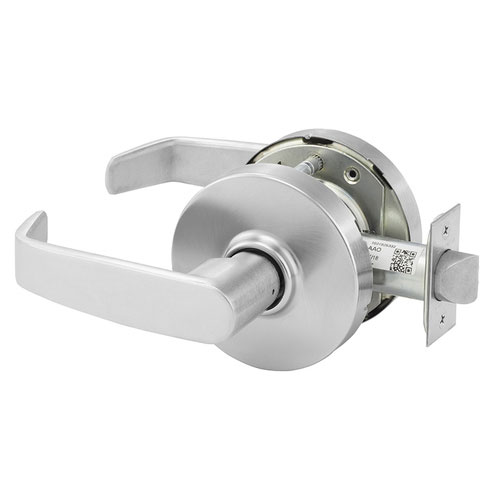

| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever |
| Brand | Sargent |
| ANSI Cyl Lock Function | Time Out Lock |
| Trim Design | LL |
| Series | Sargent - 10X Line |
| Occupancy Indicator | No |
