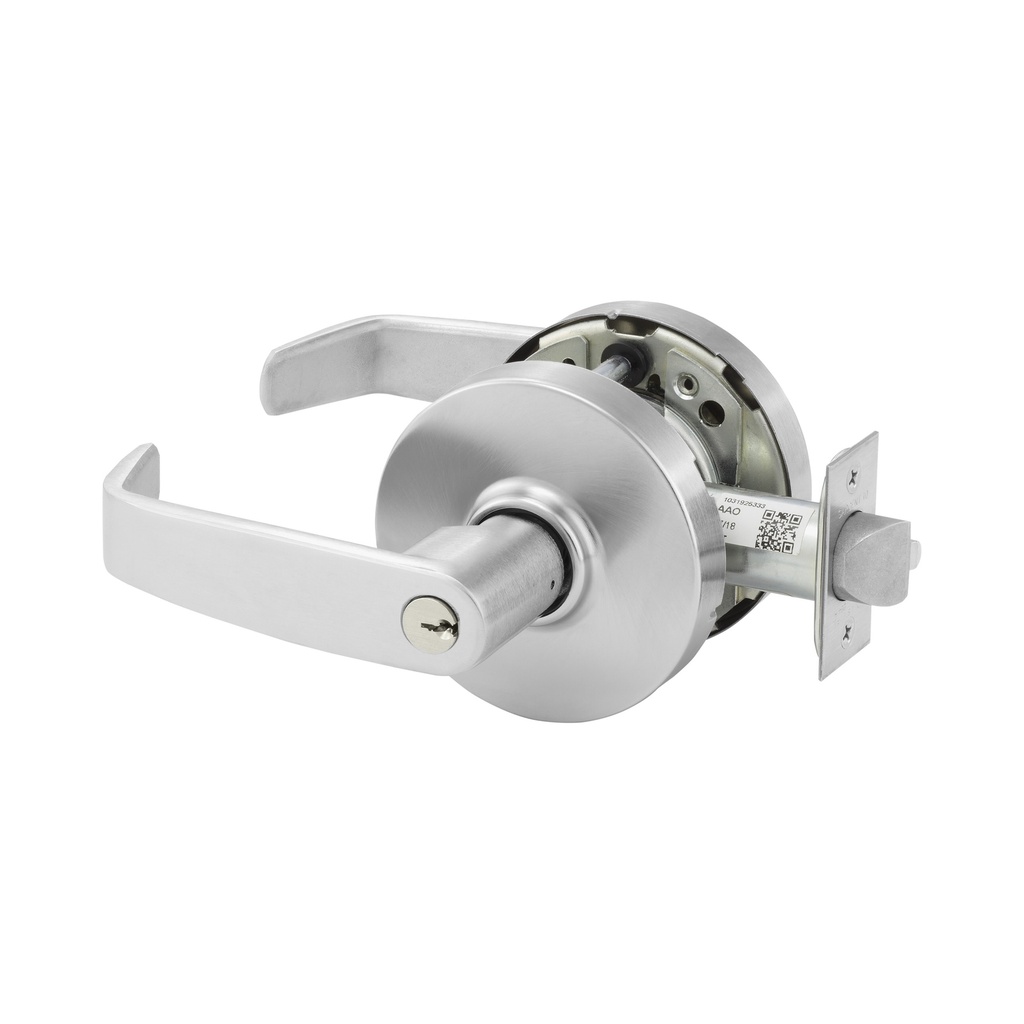

Sargent 28-10XG53 LL Corridor/Dormitory Lockset
Function Information:
The Sargent 28-10XG53 LL is a professional-grade Grade 1 Cylindrical Lock engineered for the rigorous security demands of multi-family housing, student dormitories, and commercial corridors. As a flagship model in the Sargent 10X Line, this lockset is designed for "Corridor or Dormitory" (F90) applications where both high-frequency use and reliable privacy are essential. Built to survive where others fail, the 10X line exceeds ANSI/BHMA standards by up to 20 times, providing a secure, long-lasting solution for any institutional facility.
Integrated Security for Living Spaces

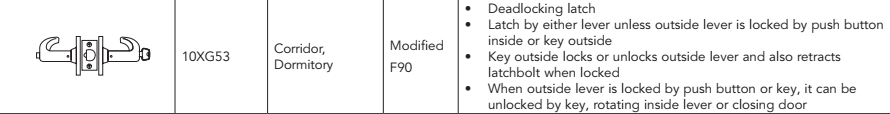

The 10XG53 offers a versatile locking profile ideal for residential-style commercial doors. The outside lever is locked or unlocked by an interior pushbutton or by a key from the outside. A key in the outside lever will always retract the latchbolt. For safety and ease of use, rotating the inside lever always provides immediate, free egress and automatically releases the pushbutton. To prevent unauthorized entry, the deadlocking latch protects against "shimming" attempts, while the freewheeling lever option (standard on most 10X locking functions) prevents damage to the chassis if the handle is forced while locked.
Extreme Performance and Vandal Resistance
The Sargent 10X series is built for high-abuse environments. While standard Grade 1 locks are tested to 1 million cycles, the 10X is UL-verified to exceed 20 million cycles, ensuring the lowest total cost of ownership over the building's life. It is engineered to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, maintaining its integrity even under physical attack. Its independent return springs ensure the linear LL lever stays perfectly horizontal, eliminating lever sag even after millions of operations.
Key Product Features
- Corridor/Dormitory Function: Interior pushbutton locking with exterior key override; ideal for student and staff housing.
- Ultimate Durability: UL-verified for 20 million cycles, providing 20x the longevity of standard Grade 1 hardware.
- ADA & Life Safety Compliant: Ergonomic LL lever design meets all accessibility requirements and is UL/cUL Listed for 3-hour fire doors.
- Vandal-Proof Engineering: Designed to withstand high-impact vertical forces and extreme torque without failure.
- Reliable Latching: Stainless steel deadlocking latch with 1/2" throw, engineered to operate smoothly even under 100 lbs of latch preload.
- Severe Weather Rated: Windstorm and Hurricane certified, including compliance with the Florida Building Code.
Technical Specifications
| Feature | Details |
| Function | 53 Corridor / Dormitory (F90) |
| Series | 10X Line Heavy-Duty Cylindrical |

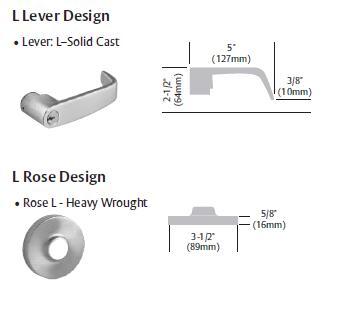

| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options available) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Cylinder | 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- University Dormitories: Robust enough for student housing where locks face constant use and occasional abuse.
- Military Barracks: High-security residential quarters requiring fire-rated hardware.
- Assisted Living Facilities: Easy-to-use privacy locking with staff emergency override.
- Corporate Corridors: Securing interior suites and communal spaces in high-traffic offices.
Ordering & Installation Information
The Sargent 28-10XG53 is non-handed, allowing for a universal fit on any door swing. For doors thicker than 2", please specify the 31- Option. This chassis supports a wide variety of Sargent Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for facilities requiring rapid re-keying between semesters or residents.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F90 - Corridor |
| Trim Design | LL |
| Series | Sargent - 10X Line |
