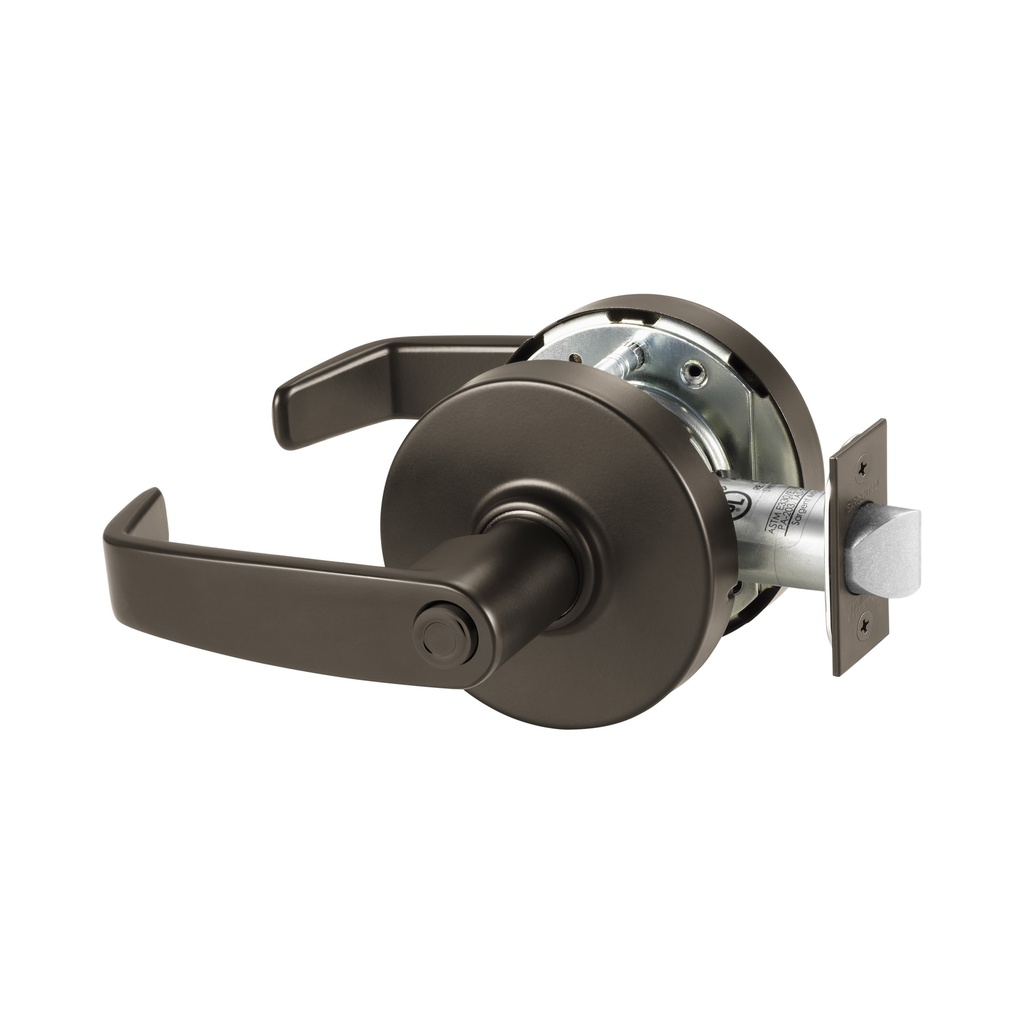

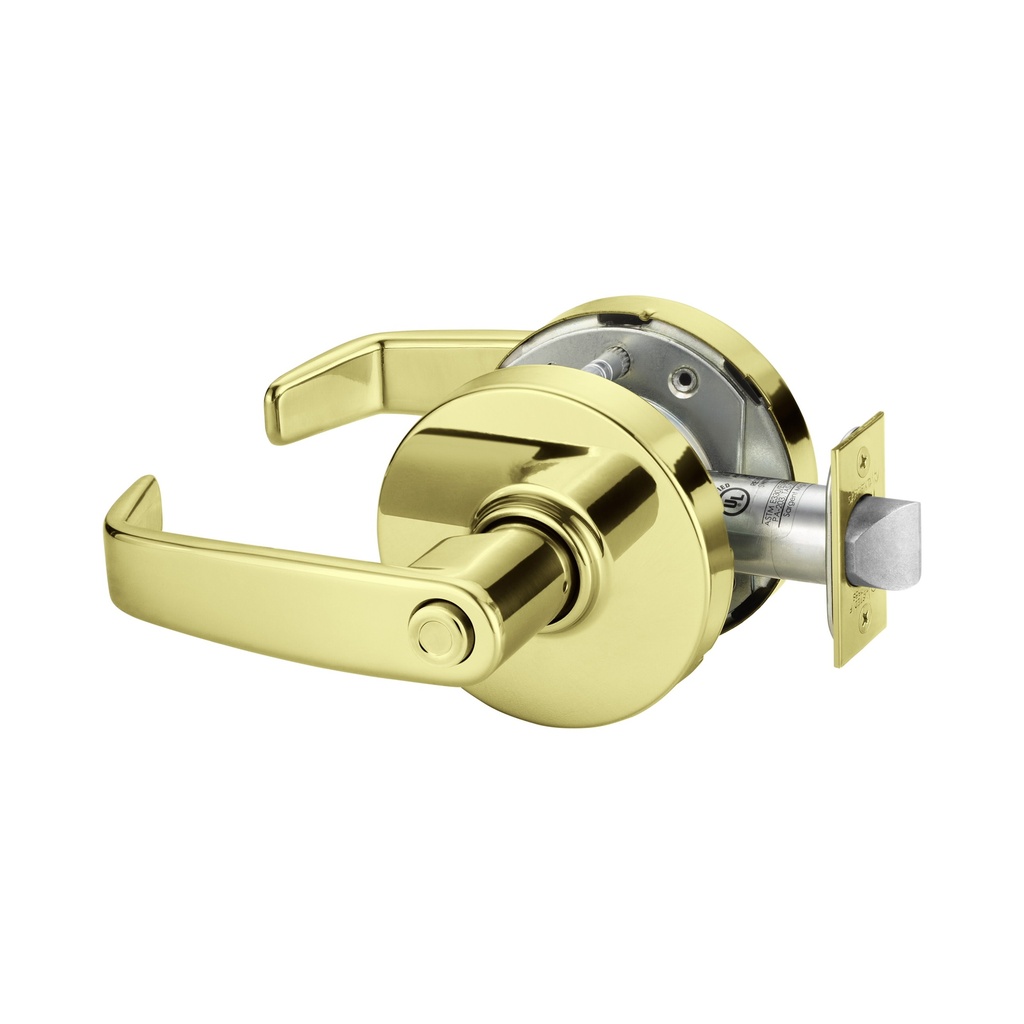

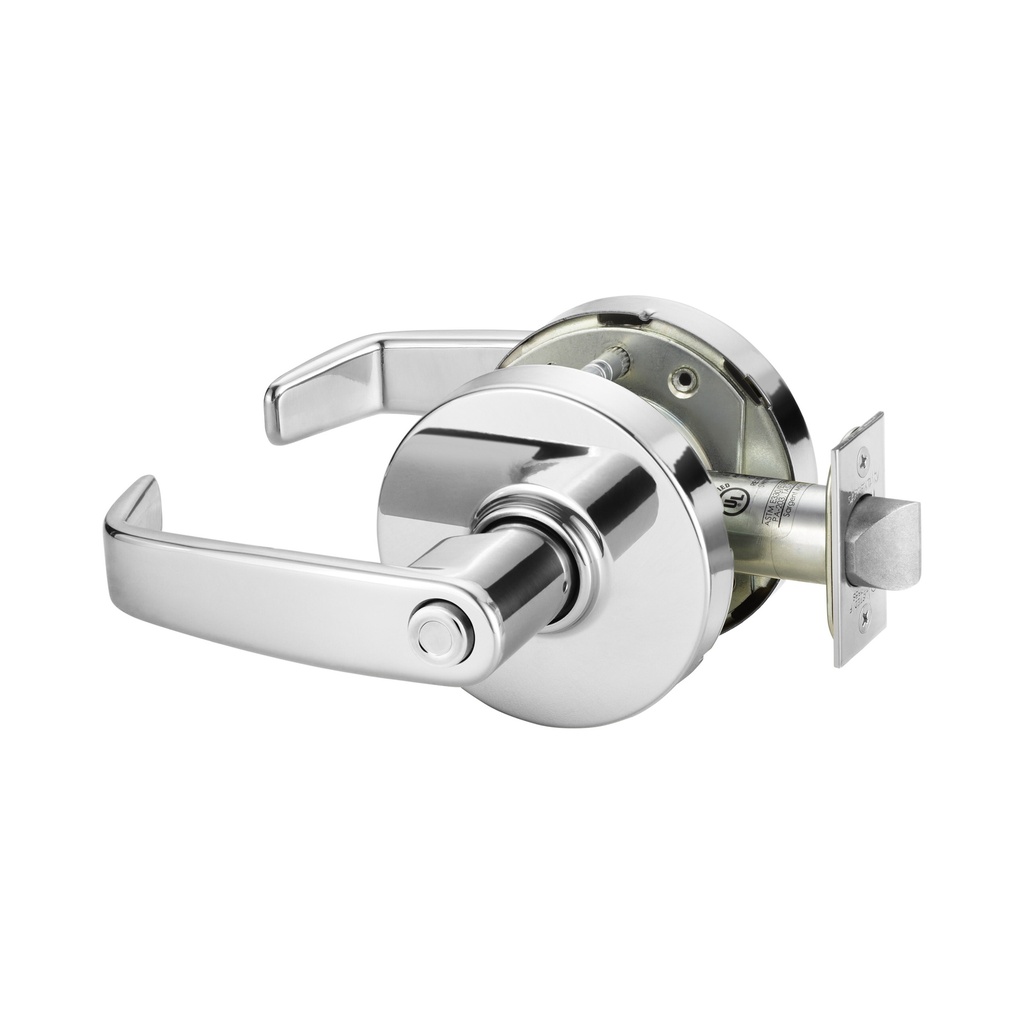

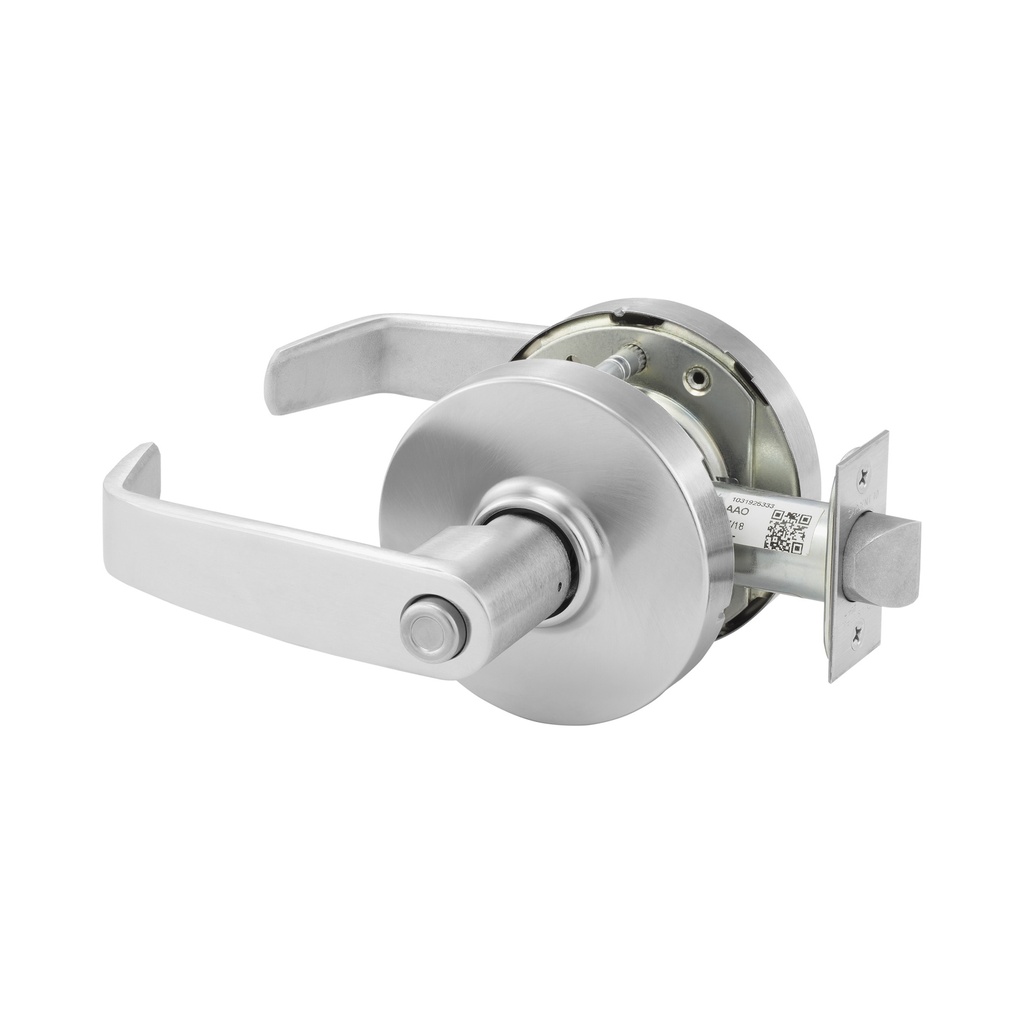

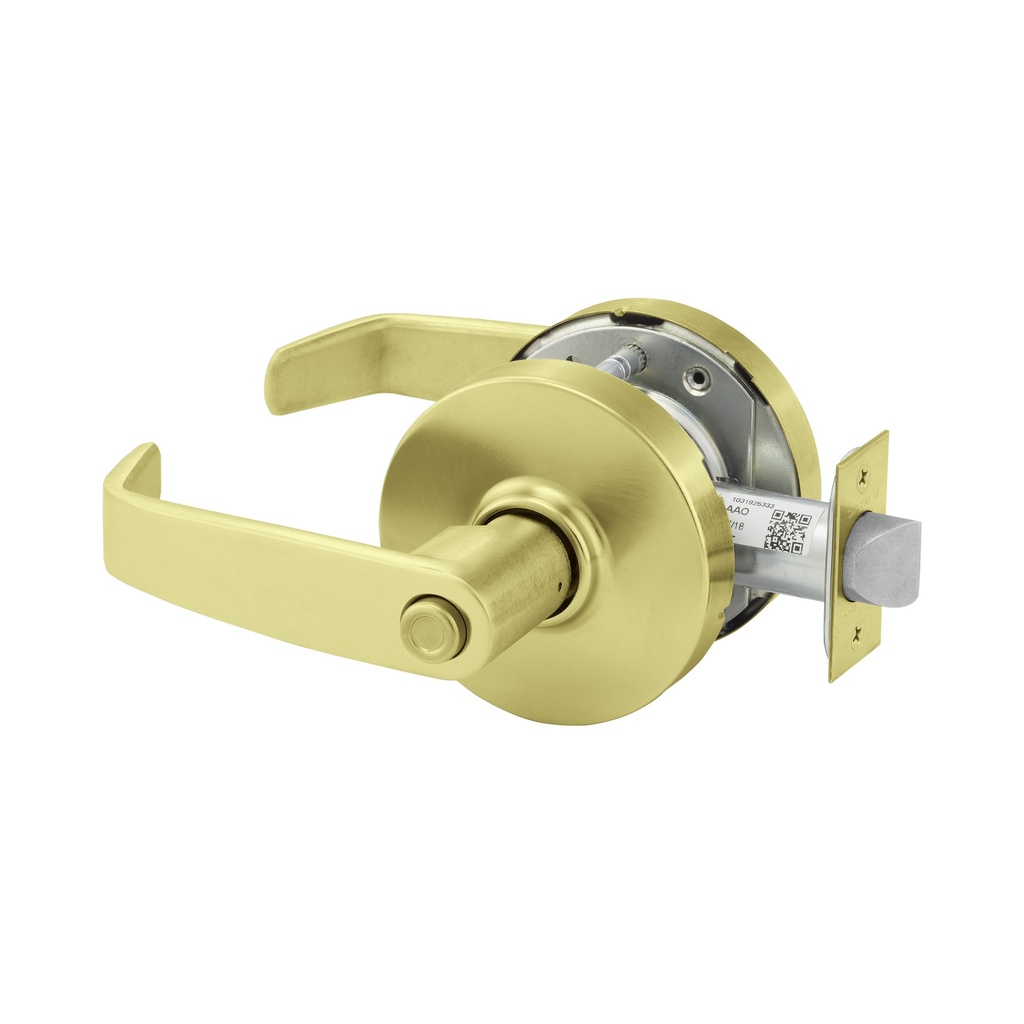

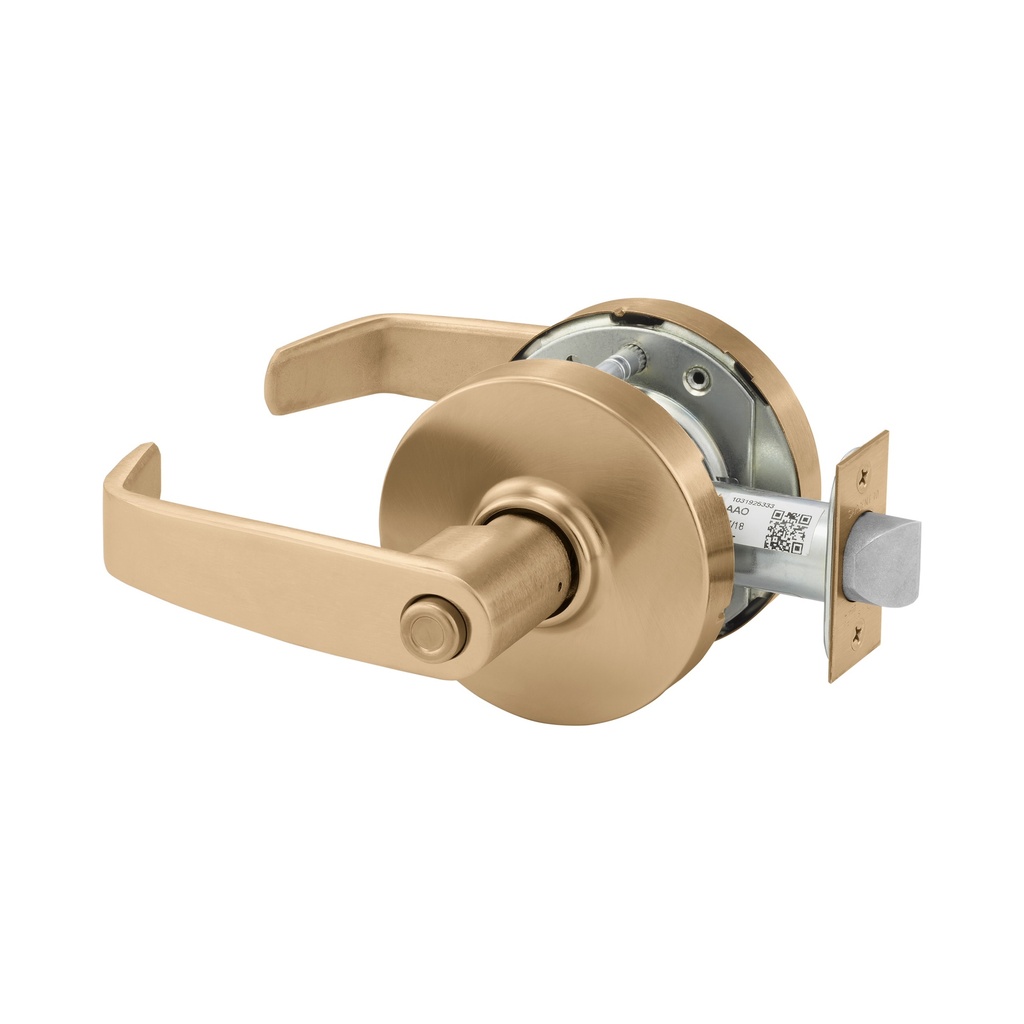

Sargent 28-10XG44 LL Service Station Lockset (Push Button)
Function Information:
The Sargent 28-10XG44 LL is an industrial-grade Grade 1 Cylindrical Lock engineered for high-traffic environments requiring specialized "Service Station or Privacy" (F92) functionality. As a flagship model in the Sargent 10X Line, this lockset is designed to protect high-abuse spaces like schools, public restrooms, and commercial facilities. The G44 function features a secure pushbutton on the interior lever and a specialized exterior cylinder that provides both keyed access and a visual occupancy indicator. Built to exceed standard performance metrics by up to 20 times, the 10XG44 is the ultimate solution for demanding public-facing applications.
Heavy-Duty Performance and Durability
The Sargent 10XG44 is built to survive where other locks fail. While standard Grade 1 locks are tested to 1 million cycles, the Sargent 10X line is UL-verified to withstand an incredible 20 million cycles. This lockset is nearly impenetrable to physical attacks, resisting over 3,100 in-lb of abusive torque and 1,600 lbs of offset pull. The freewheeling locked lever design allows the outside handle to rotate freely when locked, preventing vandals from using a pipe or wrench to snap the internal mechanism.
Reliable Privacy and Accessibility
The Service Station Function (F92) is designed for user clarity and facility security. The outside lever is locked by the inside pushbutton. A key in the outside cylinder retracts the latchbolt and unlocks the lever. To prevent accidental lockouts, rotating the inside lever or closing the door automatically releases the pushbutton. For maintenance and safety, the exterior cylinder features an occupancy indicator (standard on G44) to show if the room is in use. Its independent return springs prevent lever sag, keeping the modern, ergonomic LL linear lever perfectly horizontal.
Key Product Features
- Service Station Function: Interior pushbutton locking with an exterior key override and occupancy indicator.
- Extreme Cycle Life: UL-verified for 20 million cycles, providing the lowest total cost of ownership in its class.
- Vandal-Proof Security: Features a freewheeling lever to deflect excessive force and prevent forced entry.
- ADA & Life Safety Compliant: Meets ANSI A117.1 accessibility standards and is UL/cUL Listed for 3-hour fire doors.
- High-Impact Construction: Withstands 100 vertical impacts, outperforming ANSI/BHMA A156.2 requirements by 20 times.
- Severe Weather Rated: Windstorm and Hurricane certified, including compliance with the Florida Building Code.
Technical Specifications
| Feature | Details |
| Function | 44 Service Station / Privacy (F92) |
| Series | 10X Line Heavy-Duty Cylindrical |

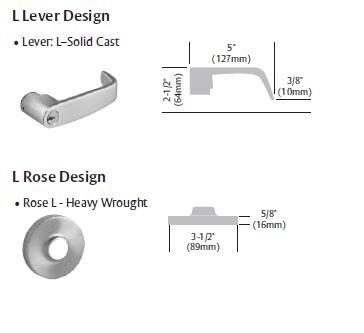

| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Latching | 1/2" Throw Stainless Steel Deadlocking |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- Public Restrooms: High-traffic service stations, airports, and retail centers.
- Educational Facilities: Faculty restrooms and private changing areas in schools.
- Healthcare & Hospitals: Patient restrooms and consultation rooms requiring privacy indicators.
- Municipal Buildings: Public-use rooms requiring durable, keyed privacy control.
Ordering & Installation Information
The Sargent 28-10XG44 is designed for fast, error-free installation. For doors thicker than 2", please specify the 31- Option for extended hardware. For doors thinner than 1-3/4", specify the 1- Option for adapter plates. This lockset is compatible with all Sargent Key Systems, including Degree®, Signature, and Keso, allowing it to integrate perfectly into your existing master key schedule.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F92 - Service Station |
| Trim Design | LL |
| Series | Sargent - 10X Line |
