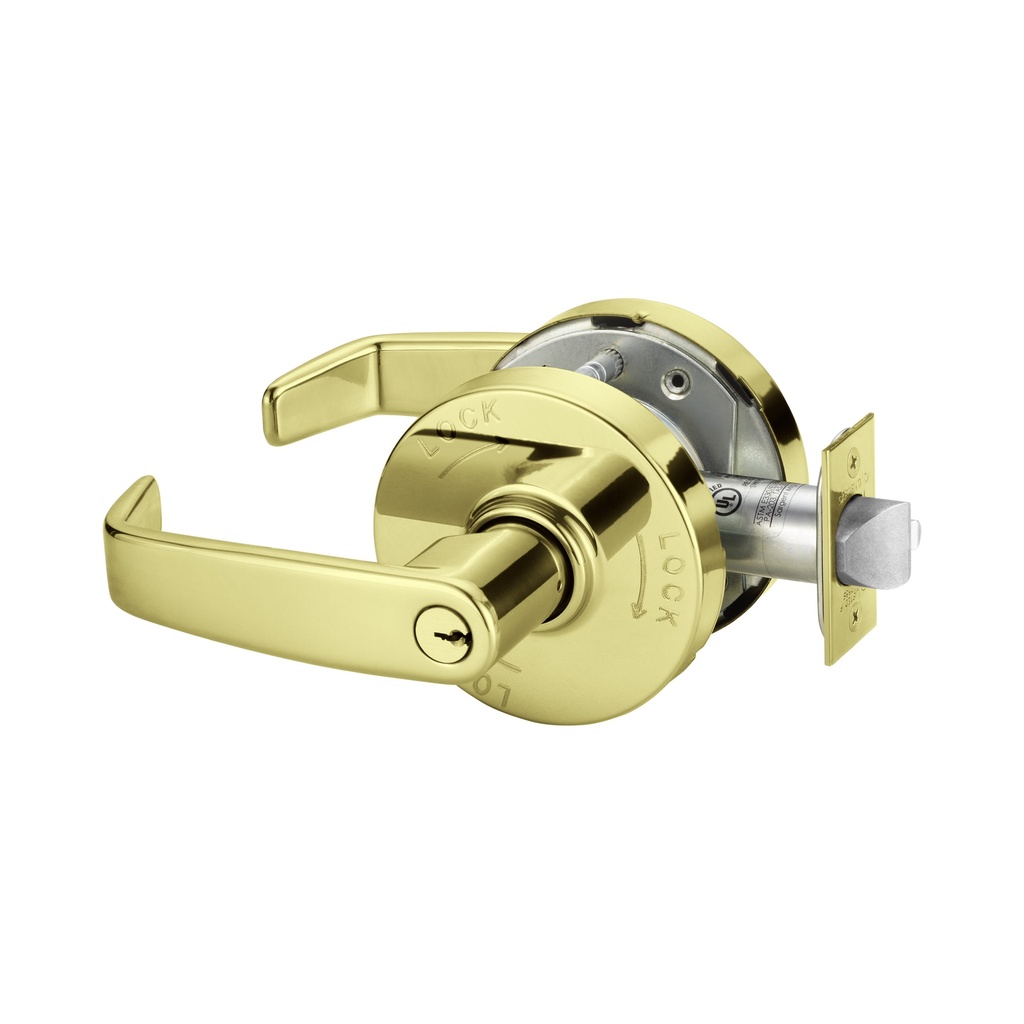

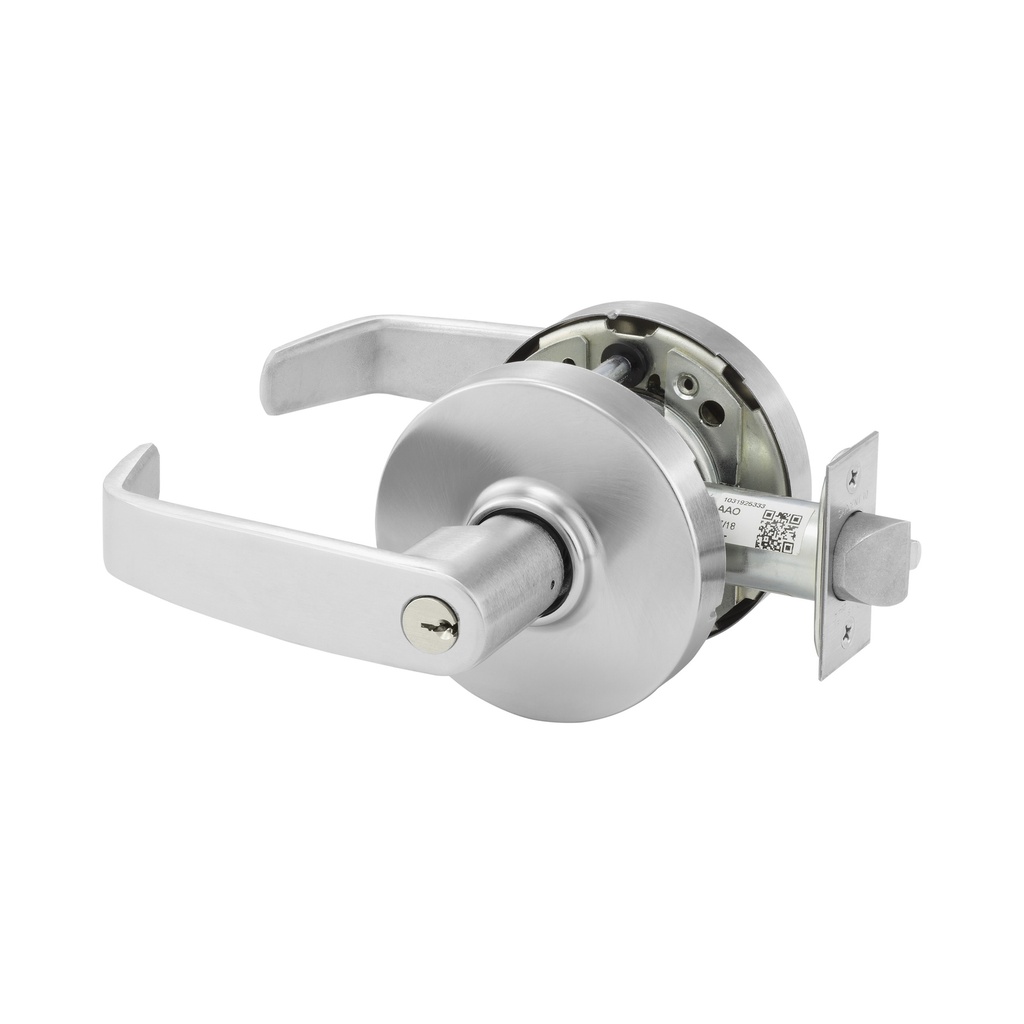

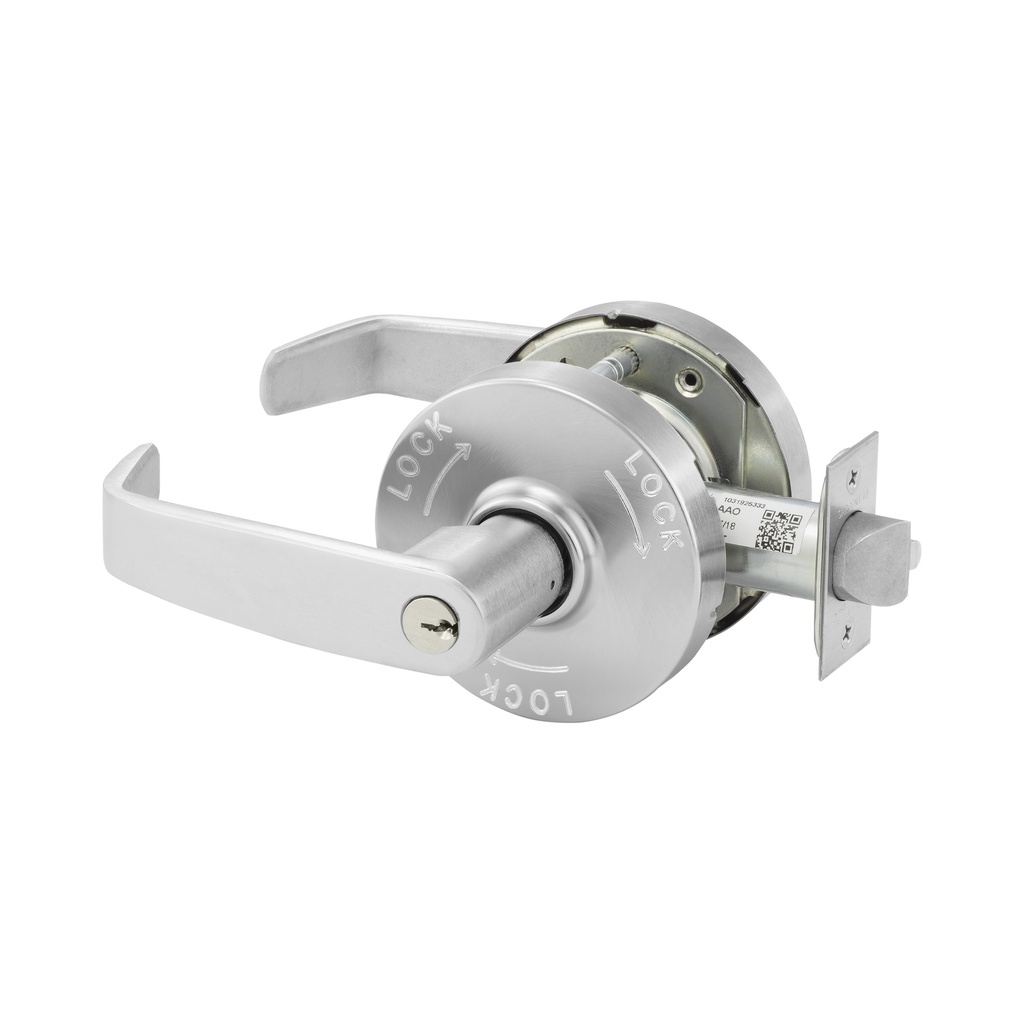

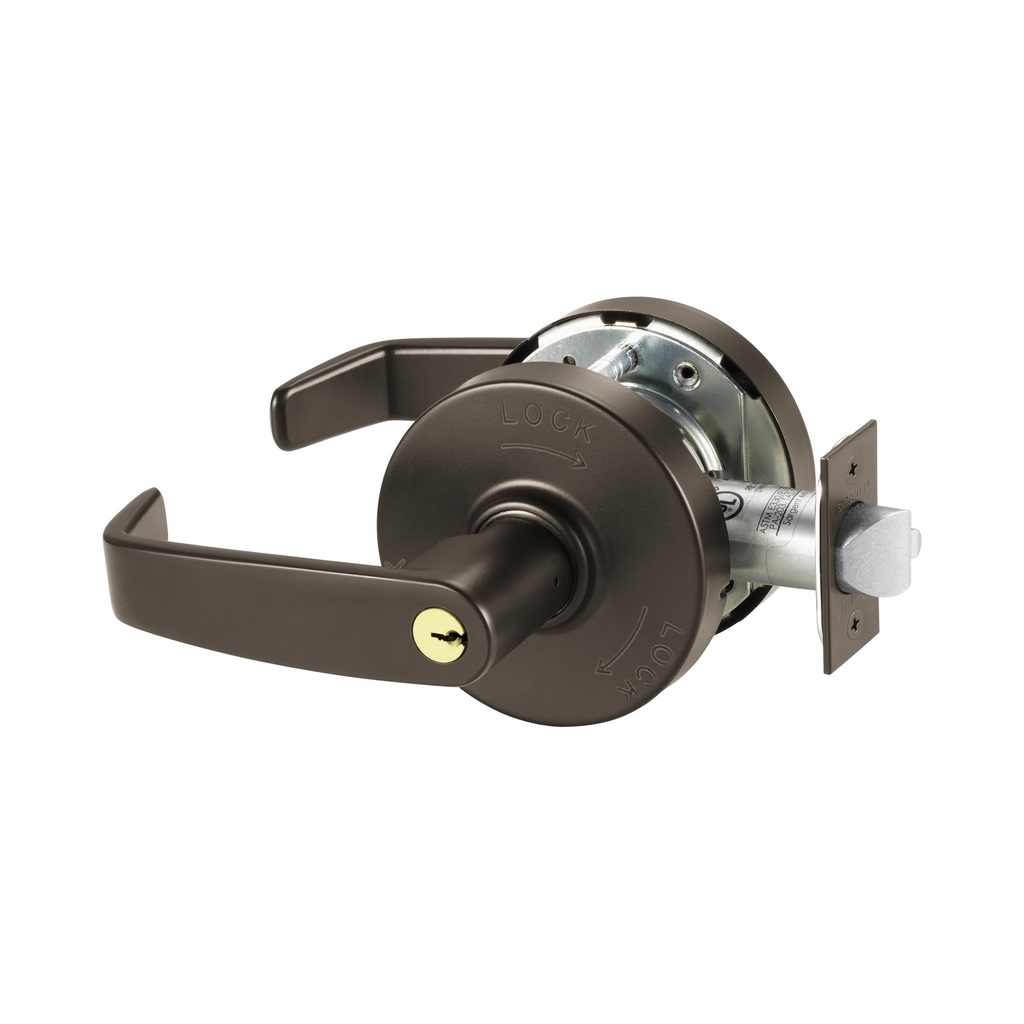

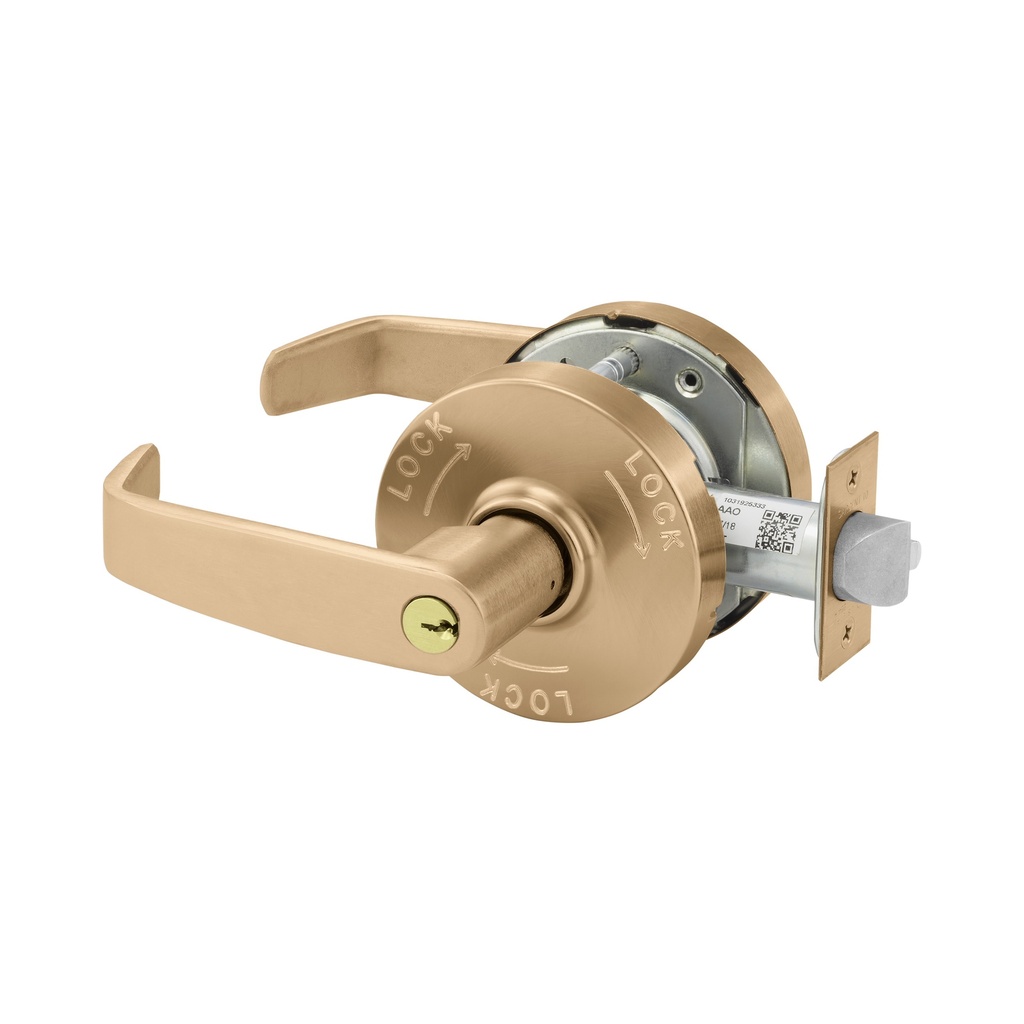

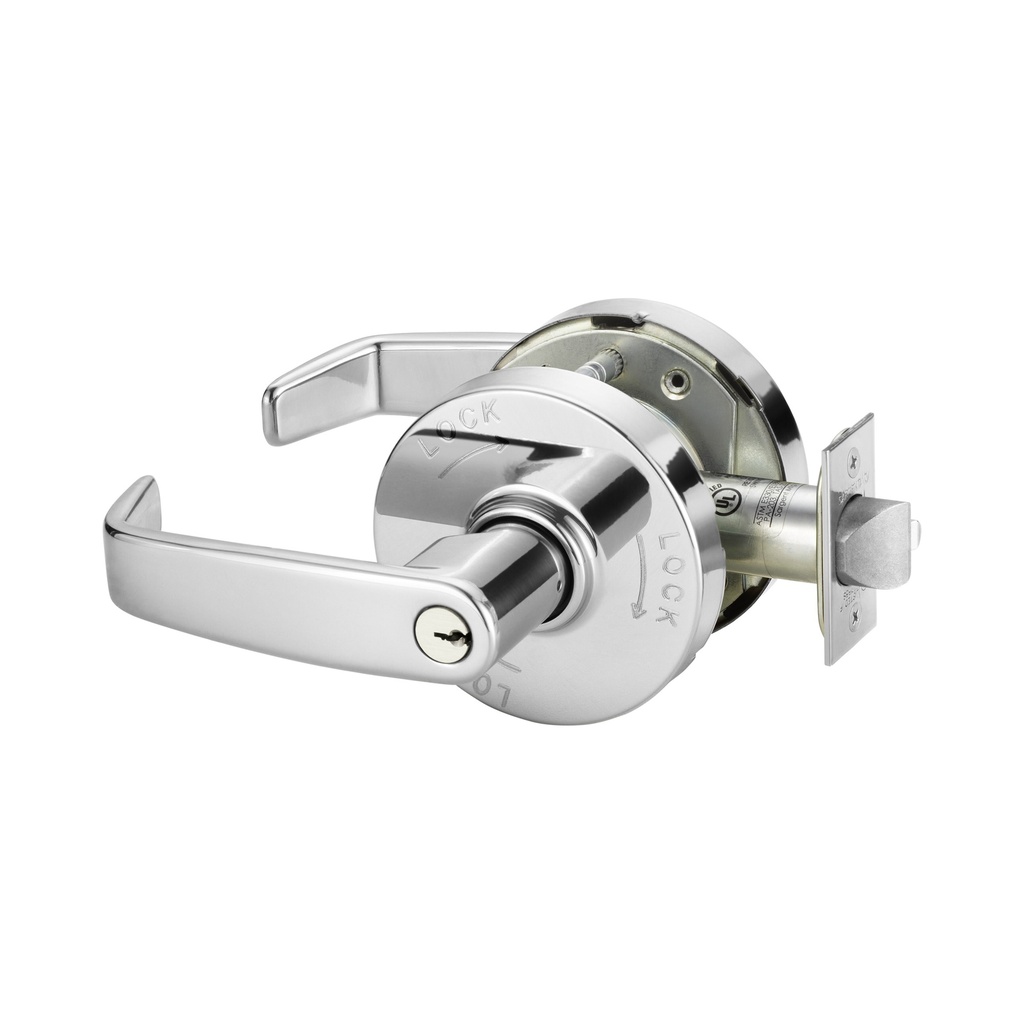

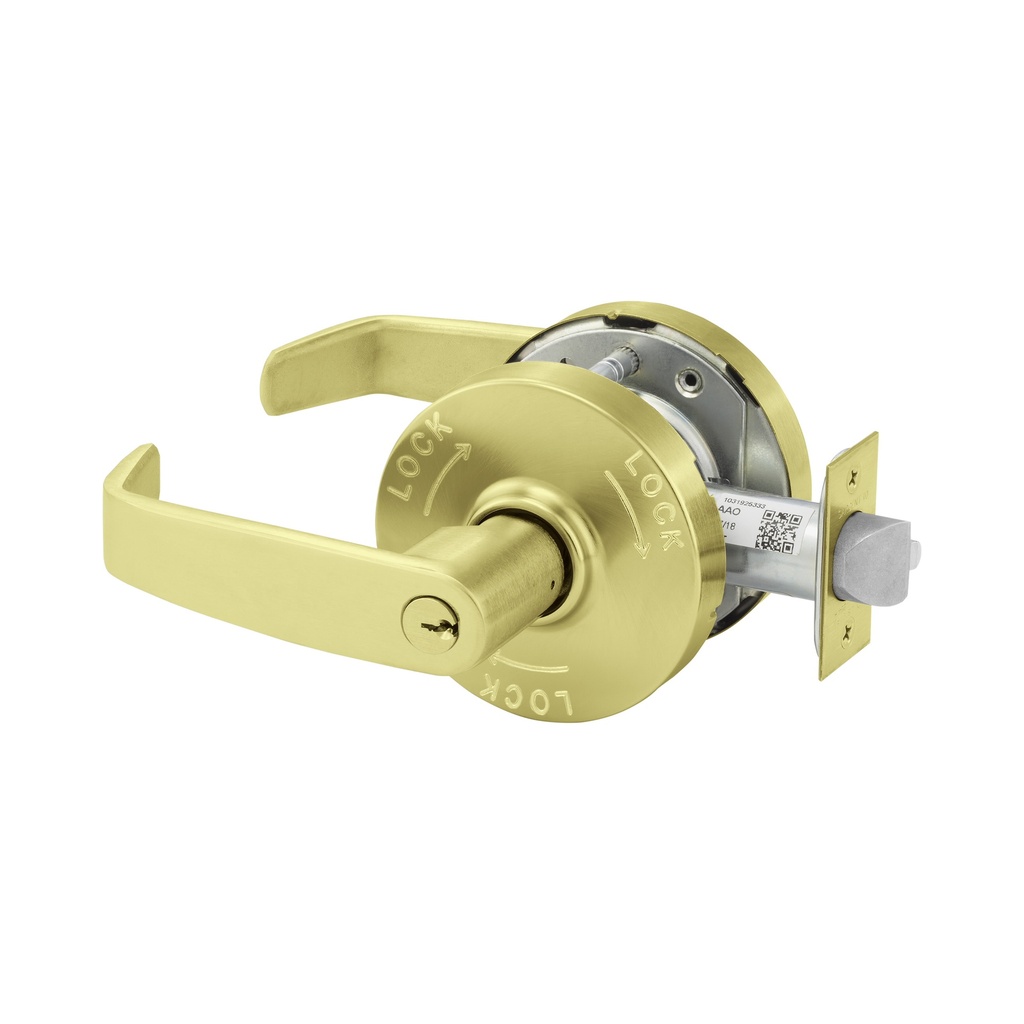

Sargent 28-10XG38 LL Classroom Security Lockset
Function Information:
The Sargent 28-10XG38 LL is the gold standard for Classroom Security (F110), specifically engineered to provide rapid intruder lockdown capabilities. Part of the elite Sargent 10X Line, this Grade 1 Cylindrical Lock is designed for the high-abuse environments of K-12 schools, universities, and government institutions. The G38 function allows the outside lever to be locked or unlocked by key from either side of the door, meaning a teacher can secure the classroom from the inside during an emergency without stepping into a potentially dangerous corridor.
Advanced "Intruder" Safety Features
Security and speed are paramount in the 10XG38. It features a double cylinder design where the inside cylinder controls the locking status of the exterior handle. To eliminate guesswork during high-stress situations, a visual lock indicator is provided on the inside rose as a standard feature, giving staff immediate confirmation that the door is secured. Despite the exterior being locked, the inside lever always remains operative, ensuring that life-safety egress is never compromised.
Unrivaled Durability and Vandal Resistance
The Sargent 10X line is built to survive where others fail. While standard Grade 1 locks are tested to 1 million cycles, the 10X is UL-verified to exceed 20 million cycles. It is engineered to withstand 3,100 in-lb of abusive torque (2.6x the industry requirement) and 1,600 lbs of offset lever pull. Its patented design handles up to 100 vertical impacts, providing 20 times the vandal resistance of ordinary locks. Even with 100 lbs of latch preload, the deadlocking latch retracts smoothly, making it ideal for warped doors or high-traffic areas.
Key Product Features

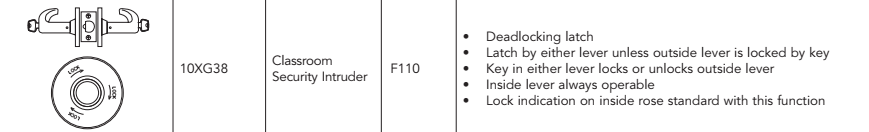

- Classroom Security Function (F110): Key in either lever locks or unlocks the outside lever; inside lever is always free for egress.
- Integrated Visual Indicator: Standard on the inside rose for at-a-glance confirmation of locked/unlocked status.
- Extreme Performance: UL-verified for 20 million cycles, outperforming ANSI/BHMA A156.2 standards by 20 times.
- Superior Vandal Resistance: Resists extreme torque and physical attacks to keep occupants safe behind locked doors.
- ADA & Life Safety: Ergonomic LL linear lever meets all accessibility requirements and is UL/cUL Listed for 3-hour fire doors.
- Severe Weather Rated: Certified for windstorm and hurricane resistance, including Florida Building Code compliance.
Technical Specifications
| Feature | Details |
| Function | 38 Classroom Security / Intruder (F110) |
| Series | 10X Line Heavy-Duty Cylindrical |

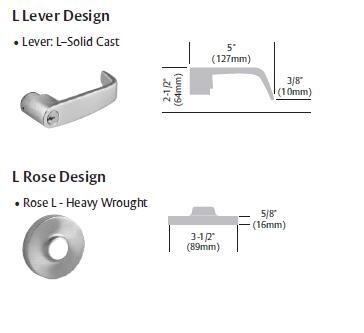

| Lever Design | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Standard) |
| Cylinders | Two 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- K-12 Schools & Universities: Creating safe learning environments with rapid lockdown capabilities.
- Government & Municipal Offices: Protecting sensitive areas where keyed control is needed on both sides.
- Healthcare Facilities: Secure staff rooms or pharmaceutical storage requiring clear visual status.
- Corporate Campuses: High-traffic perimeter and interior doors that demand the highest cycle rating available.
Ordering & Installation Information
The Sargent 28-10XG38 is non-handed and utilizes standard door preparations, allowing for installation in less than one minute. For doors thicker than 2", please specify the 31- Option. This chassis is compatible with all Sargent Key Systems, including Degree® and Signature, as well as various Interchangeable Core (IC) formats for facilities requiring rapid re-keying.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F110 - Classroom Security |
| Trim Design | LL |
| Series | Sargent - 10X Line |
