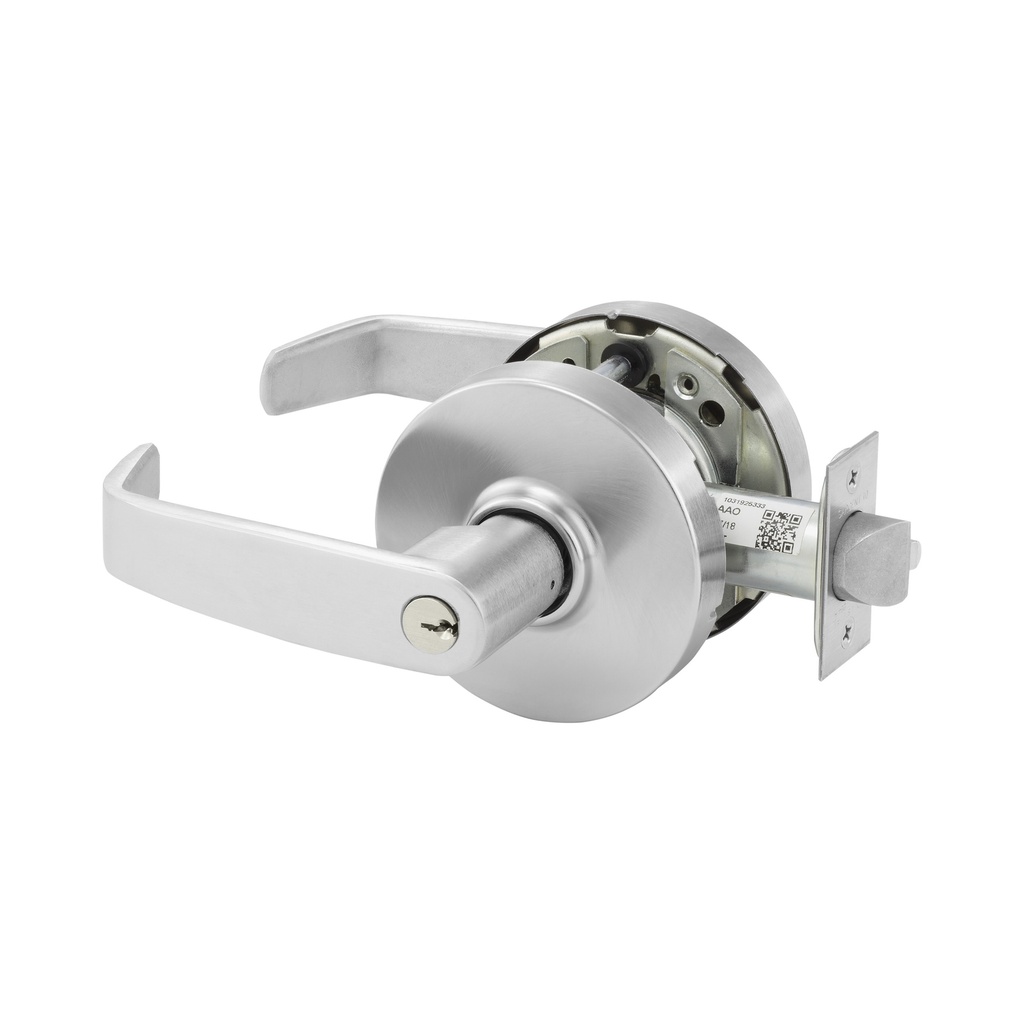

Sargent 28-10XG17 LL Institutional Lever Lockset
Function Information:
The Sargent 28-10XG17 LL is a high-security Grade 1 Institutional Lock designed for maximum control in specialized environments. Often referred to as an "Asylum" or "Utility" lock (ANSI F87), this device features a double cylinder configuration where both the interior and exterior levers are rigid at all times. Access is granted strictly by key from either side. As part of the Sargent 10X Line, this lockset is engineered to withstand extreme abuse, outperforming industry standards by up to 20 times to ensure life safety and security in high-risk facilities.
Maximum Security for Sensitive Environments
The 10XG17 is built for spaces where free egress is not permitted or must be strictly keyed, such as detention centers, psychiatric wards, or high-security utility rooms. Because both levers remain fixed, the lock provides a "storeroom" level of security on both sides of the door. To defend against forced entry, it resists over 3,100 in-lb of torque and 1,600 lbs of offset pull. Its deadlocking latch design further prevents "shimming" or "loiding" of the latchbolt.
Important Safety Note: Because this function (F87) prevents free egress from the inside, it should only be used on rooms with more than one exit or in specific applications approved by your local Authority Having Jurisdiction (AHJ).
Unrivaled Durability and Engineering
Tested to an industry-leading 20 million cycles, the Sargent 28-10XG17 offers the lowest total cost of ownership by virtually eliminating the need for replacement. The internal chassis features independent return springs to prevent lever sag, keeping the modern LL linear lever perfectly aligned. It is also Windstorm and Hurricane certified, making it a robust choice for exterior perimeter doors in coastal regions.
Key Product Features
- Institutional Function: Double cylinder design; both levers are rigid and require a key to retract the latch.
- Extreme Cycle Life: UL-verified for 20 million cycles, providing 20x the longevity of standard Grade 1 locks.
- Vandal Resistant: Engineered to withstand high-impact vertical impacts and extreme lever torque.
- High-Security Latching: Stainless steel deadlocking latch with 1/2" throw for maximum protection.
- ADA Compliant: Ergonomic LL lever design meets accessibility requirements when the key is operated.
- Fire Rated: UL/cUL Listed for 3-hour fire doors (A Label).
Technical Specifications
| Feature | Details |
| Function | 17 Institutional / Asylum (ANSI F87) |
| Series | 10X Line Heavy-Duty Cylindrical |

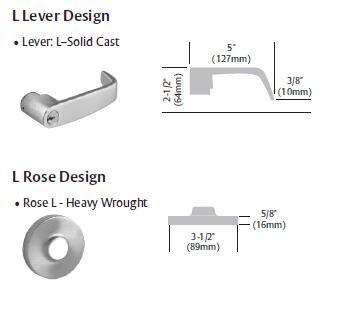

| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" available) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Cylinders | Two 6-pin Brass, LA Keyway (Standard) |
| Handing | Non-handed (Reversible) |
Ideal Applications
- Behavioral Health Units: Secure patient areas requiring staff-only key access.
- Detention Facilities: High-abuse environments where egress must be controlled.
- High-Security Utility Rooms: Protecting critical infrastructure or high-voltage areas.
- Asylum Applications: Areas requiring the most rigid and secure double-cylinder configuration.
Ordering & Installation Information
The Sargent 28-10XG17 comes standard with an 808 curved lip ANSI 4-7/8" strike. For doors thinner than 1-3/4", please specify the 1- Option for adapter plates. This model is compatible with all Sargent Key Systems, including Degree® and Signature, ensuring seamless integration into your facility's master key system.
SARGENT 10 Line Institutional Function Demo
This video demonstrates the specific double-cylinder locking behavior of the 10 Line function, showing how the latch is operated exclusively by key from either side.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F87 - Asylum |
| Trim Design | LL |
| Series | Sargent - 10X Line |
