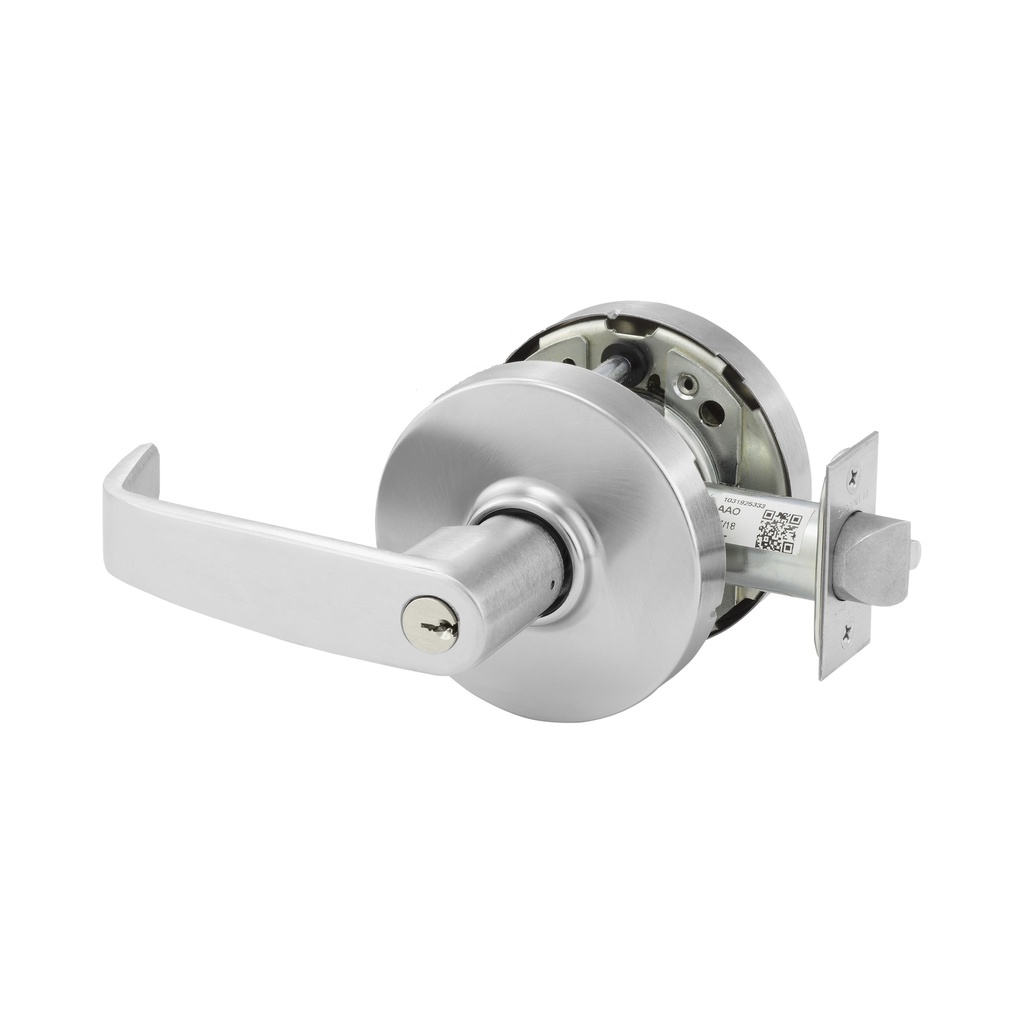

Sargent 28-10XG08 LL Communicating Classroom Lockset
Function Information:
The Sargent 28-10XG08 LL is an industrial-grade Grade 1 Cylindrical Lock designed for high-security "communicating" applications where a blank plate is required on one side. Engineered as part of the Sargent 10X Line, this lockset is purpose-built for spaces that require keyed access from one side only, with the ability to lock or unlock that lever via key. Whether managing access between secure zones or protecting specialized storage, the 10XG08 delivers the "durability, strength, and performance" required for the most demanding institutional environments.
Specialized Communicating Functionality
The 10XG08 Communicating Classroom (F113) function is distinct: it features a functional LL lever on one side and a blank plate on the other. The key on the active side locks or unlocks the lever, providing controlled access without a redundant handle on the opposite side. This configuration is essential for security-sensitive areas where unauthorized entry from one side must be physically impossible. Equipped with the freewheeling lever option, the handle rotates freely when locked to deflect force and prevent vandalism.
Industry-Leading Durability and Strength
Tested to an incredible 20 million cycles, the Sargent 10X line exceeds ANSI/BHMA A156.2 Grade 1 requirements by up to 20 times. This lockset is nearly impervious to physical attack, withstanding 3,100 in-lb of abusive torque and 1,600 lbs of offset lever pull. Its patented adjustable push/turn button and independent return springs ensure that the linear LL lever stays perfectly level, eliminating lever sag even after decades of high-frequency use in schools, hospitals, and government facilities.
Key Product Features
- Communicating Classroom Function: Functional keyed lever on one side; secure blank plate on the other.
- Extreme Vandal Resistance: Freewheeling locked lever design protects internal components from excessive torque.
- Ultimate Cycle Life: UL-verified for 20 million cycles—the highest performance rating in its class.
- High-Security Latching: Includes a stainless steel deadlocking latch with a 1/2" throw to resist shimming.
- Severe Weather Rated: Windstorm and Hurricane certified, meeting the most stringent Florida Building Codes.
- ADA Compliant: Ergonomic lever design requires less than 5 lbs of force to operate, meeting ANSI A117.1 standards.
Technical Specifications
| Feature | Details |
| Function | 08 Communicating Classroom (F113) |
| Series | 10X Line Heavy-Duty Cylindrical |

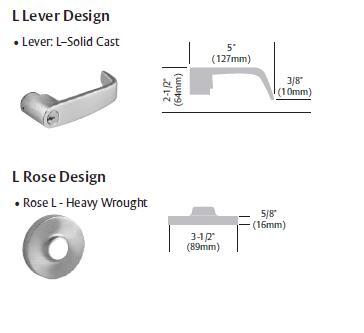

| Lever Design | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Cylinder | 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- Institutional Security: Controlled access between administrative zones and public hallways.
- Manufacturing & Industrial: Securing equipment rooms where single-sided access is required.
- Educational Facilities: Specialized classrooms or labs requiring high-torque resistance and key control.
- Healthcare Environments: Restricted pharmaceutical or record storage areas.
Ordering & Installation Information
The Sargent 28-10XG08 is non-handed, making it adaptable to any door swing. For doors thicker than 2", please specify the 31- Option for extended mounting hardware. This chassis is fully compatible with high-security key systems including Degree®, Signature, and Keso.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F113 - Keyed Communicating |
| Trim Design | LL |
| Series | Sargent - 10X Line |
