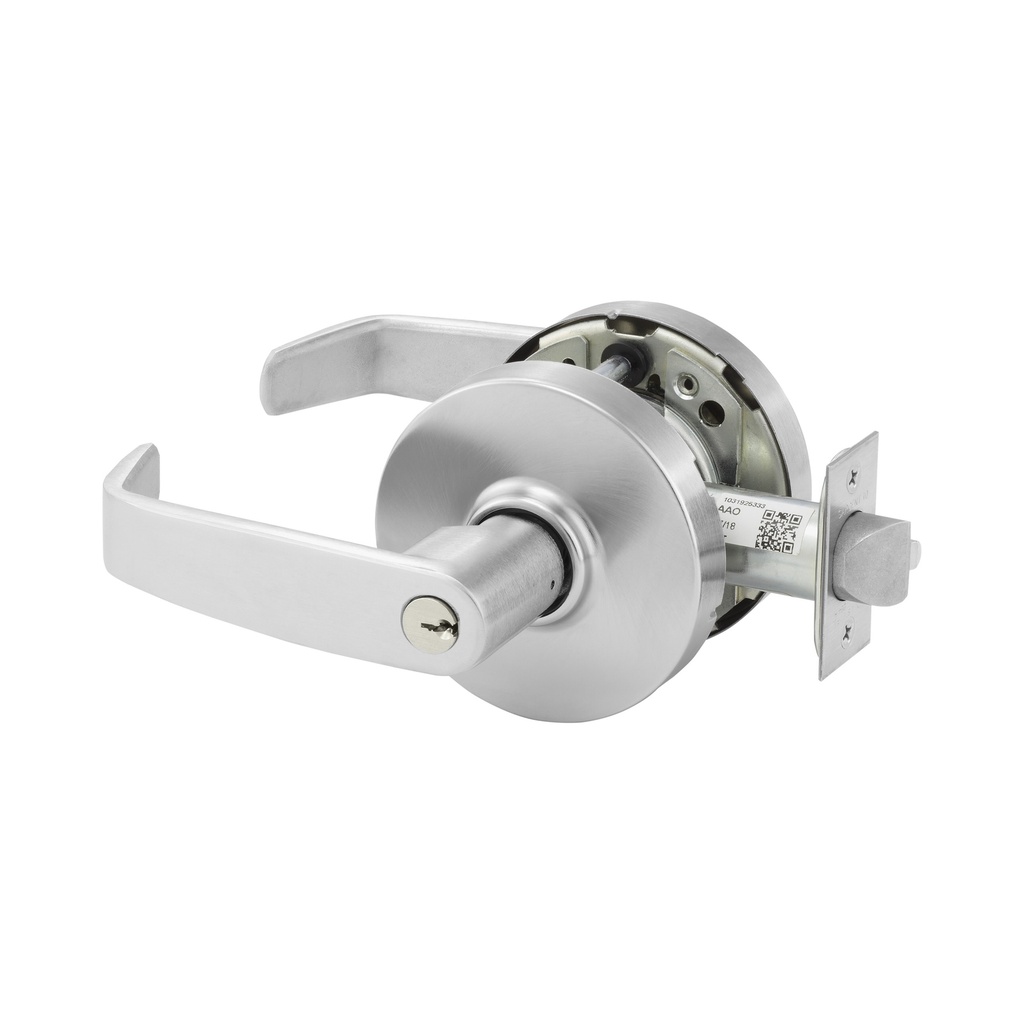

Sargent 28-10XG04 LL Storeroom Function, Cylindrical Lockset
Function Information:
The Sargent 28-10XG04 LL is an elite Grade 1 Cylindrical Lock engineered for high-abuse, high-traffic environments. As part of the Sargent 10X Line, this lockset doesn't just meet industry standards—it shatters them, surviving up to 20 million cycles. The Storeroom Function (F86) ensures the outside lever is always locked, requiring a key for entry, while the inside lever always allows free egress. Featuring the freewheeling lever option, the outside handle rotates freely when locked to prevent damage from vandalism and excessive torque.
Unmatched Durability and Security
Built to protect the most demanding spaces, the 10XG04 exceeds ANSI/BHMA Grade 1 requirements for torque and pull-force by significant margins. It withstands over 3,100 in-lb of abusive torque and 1,600 lbs of offset lever pull, ensuring that even under extreme attack, the door remains secure. Its independent return springs prevent lever sag, maintaining a professional appearance and consistent performance for the life of the product.
Life Safety and Extreme Weather Compliance
The Sargent 28-10XG04 is UL/cUL listed for 3-hour fire doors and meets ADA standards with a maximum activation force of 5 pounds. It is a premier choice for coastal or high-wind regions, carrying Florida Building Code and Windstorm certifications (ASTM E330, E1886, and E1996). Whether facing daily high-frequency use in a school or the environmental stress of a hurricane, this lockset provides unwavering reliability.
Key Product Features
- Always Secure: Storeroom function ensures the outside lever remains locked; entry is by key only.
- Vandal Resistant: Freewheeling locked lever design protects the internal mechanism from forced entry attempts.
- Grade 1 Plus Performance: Exceeds ANSI/BHMA A156.2 requirements by up to 20 times in cycle testing.
- Universal Handing: Non-handed design allows for installation on both left and right-hand doors.
- ADA Compliant: Ergonomic LL lever design meets all accessibility requirements.
- Fire Rated Protection: UL/cUL Listed for 3-hour fire door applications.
Technical Specifications
| Feature | Details |
| Function | 04 Storeroom (F86) |
| Series | 10X Line Grade 1 Cylindrical |
| Backset | 2-3/4" Standard (Options for 2-3/8", 3-3/4", 5") |
| Latchbolt | Stainless Steel, 1/2" Throw (Deadlocking) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Cylinder | 6-pin Brass, LA Keyway (Standard) |
| Warranty | 10-Year Limited Warranty |
Ideal Applications
- Educational Institutions: Secure storage closets and mechanical rooms in schools and universities.
- Healthcare Facilities: Restricted access areas in hospitals and clinics.
- Government & Corporate: High-security perimeters for offices and manufacturing centers.
- High-Abuse Zones: Areas prone to vandalism or heavy equipment traffic.
Ordering & Installation Information
The 10XG04 comes standard with an 808 curved lip ANSI 4-7/8" strike. For doors thinner than 1-3/4", please specify the 1- Option for adapter plates. If you require a specific keyway or master keying system, such as Degree® or Signature, please contact our technical team at Doorways Plus.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | LL |
| Series | Sargent - 10X Line |
