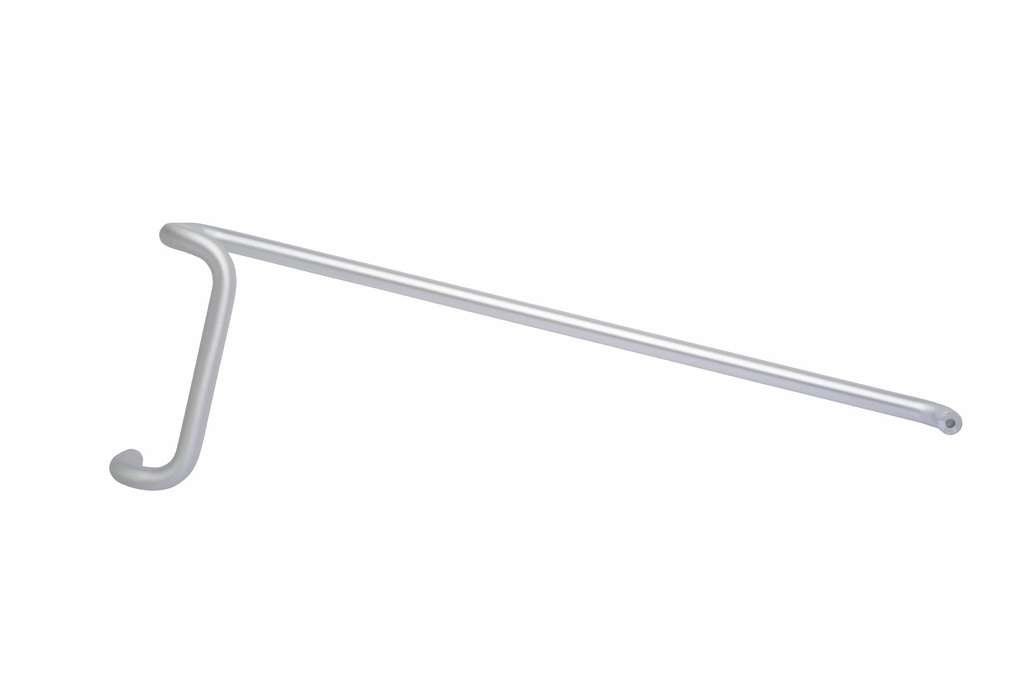

Rockwood BF15847-T3 Offset Push & Pull Bar Set | 12" Pull & 33" Bar
The Rockwood BF15847-T3 is a meticulously engineered hardware suite designed for high-performance functionality and architectural style. This set includes a 12-inch Center-to-Center (CTC) pull handle paired with a 33-inch CTC push bar (optimized for a 36" wide door), providing a comprehensive solution for double-acting or single-acting doors.1 Featuring specialized T3 Back-to-Back Thru Bolt Mounting, this set is optimized for standard 1-3/4" thick wood or metal doors, ensuring a rock-solid installation that will not loosen over time.2
Architectural Grade Features & Versatility
- Durable Solid Metal Construction: Available in high-quality Aluminum, Brass, Bronze, or Stainless Steel to match any architectural specification or environmental requirement.3
- Ergonomic Bent End Design: The "In-Line" bent end profile provides a sleek, modern look while preventing clothing or bags from snagging on the hardware.4
- T3 High-Security Mounting: Utilizes a 1/4-20 thread pattern for back-to-back thru bolts, creating a permanent mechanical bond through the door for maximum pull-strength.5
- ADA Compliant Clearance: Features a 1-3/4" push clearance and a 3-1/2" projection, providing ample room for a secure grip and comfortable operation for all users.
- Universal Application: Ideal for both metal and wood doors, making it a versatile choice for everything from storefront entrances to interior office suites.6
Technical Specifications
- Model: BF15847-T3
- Pull Size: 12" CTC | 1" Diameter7
- Push Bar Size: 33" CTC (For 36" Door) | 1" Diameter8
- Mounting Type: T3 (Back-to-Back and Thru Bolt)9
- Standard Door Thickness: 1-3/4"
- Projection: 3-1/2"
- Clearance: 1-3/4"
- Fasteners: 1/4-20 Machine Screws (Included)10
Rockwood Mounting Selection Guide
| Mounting Type | Door Material | Installation Style | Pull Free End | Push Free End | Common End |
| T3 (Standard) | Metal, Wood, Aluminum | Back-to-Back & Thru Bolt | 1 | 1 | 5 |
| T4 | Metal | Back-to-Back & Concealed | 6 | 6 | 5 |
| T5 | Wood | Back-to-Back & Concealed | 8 | 8 | 5 |
| T1 | Metal & Wood | Back-to-Back & Decorative Bolt | 12 | 12 | 5 |
| T2 | Glass | Back-to-Back & Thru Bolt | 15 | 15 | 13 |
The Rockwood BF15847-T3 is the professional's choice for "wobble-free" door operation. For the best results on high-traffic glass or aluminum storefronts, ensure your holes are drilled precisely to the 33" and 12" specifications. The T3 mounting system is specifically designed to prevent the common "loose handle" syndrome found in cheaper surface-mounted hardware.
Mounting Note: While T3 is the standard for wood and metal doors, this set can be adapted for glass or decorative applications. If you are installing on a glass door, please specify the T2 mounting method to receive the specialized gaskets and bushings required to protect the glass.
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 315 - Black Anodized Aluminum |
| Brand | Rockwood |
| Center to Center Distance | 12" CTC |
| Pull Handle Overall Length | 13" |
| Handle Diameter | 1" |
| Pulls Mounting Types | Type 3 - Back-to-Back and Thru Bolt on Free End |
| Thread Pattern | 1/4-20 |
| Door Thickness | 1-3/4" Dr Thickness |
| Push Bar Center to Center | 33" CTC |
