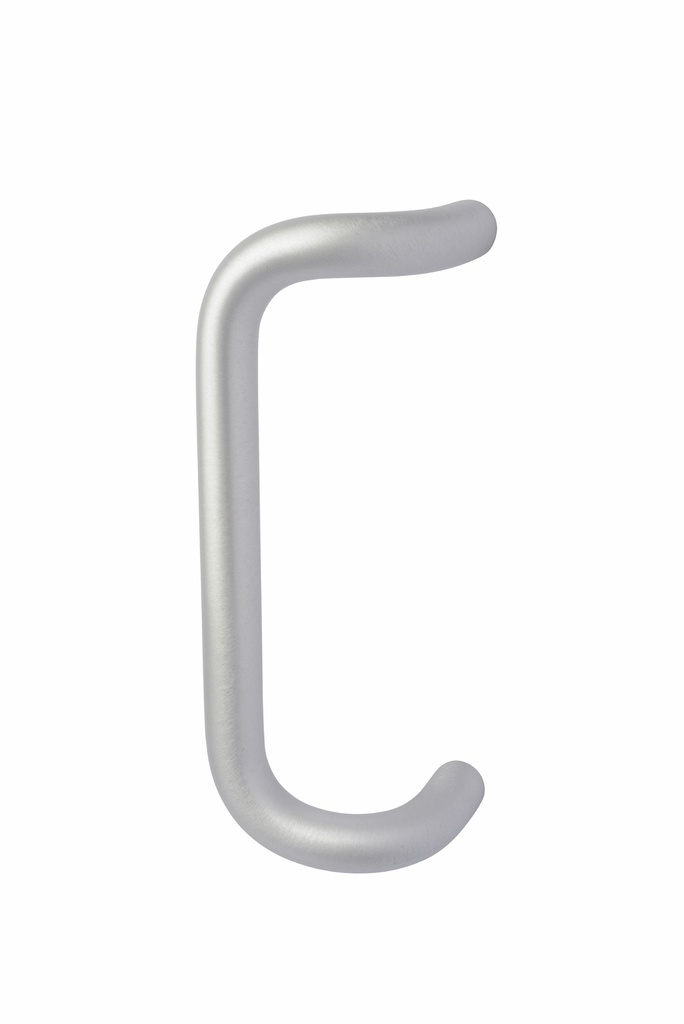

Rockwood Mfg Pull Handle BF157A with 90 degree offset
Base Material: Solid Aluminum or Stainless Steel (Brass or Bronze available by quote)
- Material Size: 1" dia.
- Distance between Mounting Holes (CTC): 9"
- Overall: 10"
- Base: 1"
- Door Thickness: 1-3/4"
- Projection: 3-1/2"
- Clearance: 2-1/2"
- Offset: 4"
- ANSI A156.6: J402
General - US Finishes | US28 - 628 Aluminum or 630 - Satin Stainless Steel/ US32D or 313 - Dark Bronze Anodized |
Pulls Mounting Types | Type 1 - Thru Bolt or Type 1HD - HD Thru Bolt or Type 16 - Back To Back Mounting or Type 16HD- HD Back To Back Mounting or Type 17 - Concealed Mounting or Type 18 - Glass Dr - Back to Back Mounting |
Thread Pattern | 1/4-20 or 5/16-18 |
Brand | Rockwood |
Center to Center Distance | 9" CTC |
Pull Handle Overall Length | 10" |
Handle Diameter | 1" |
Door Thickness | 1-3/4" Dr Thickness |
