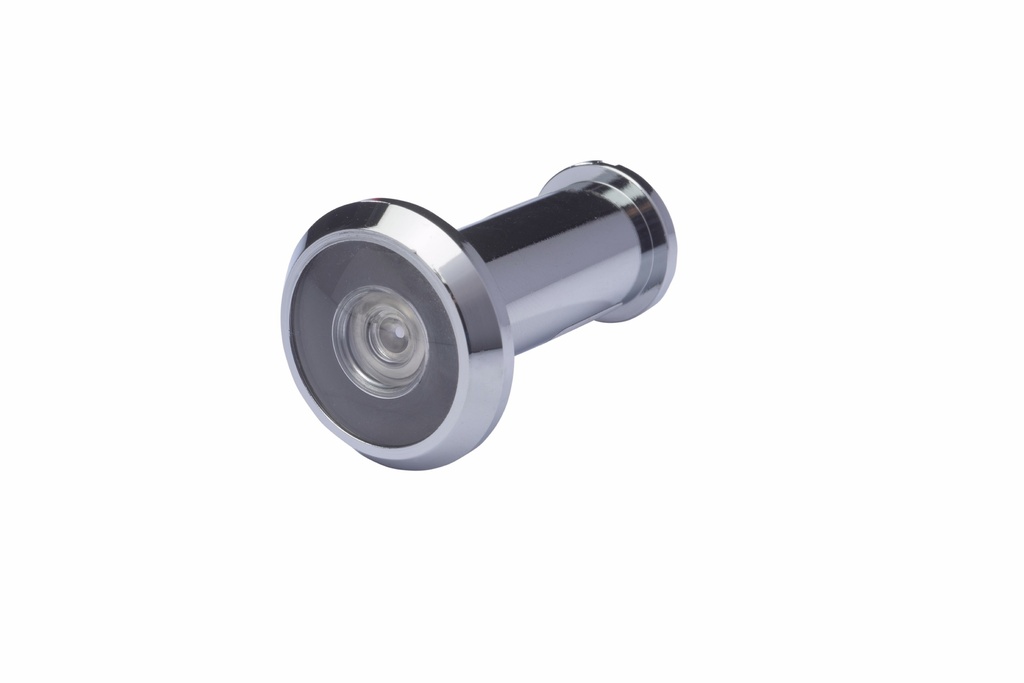

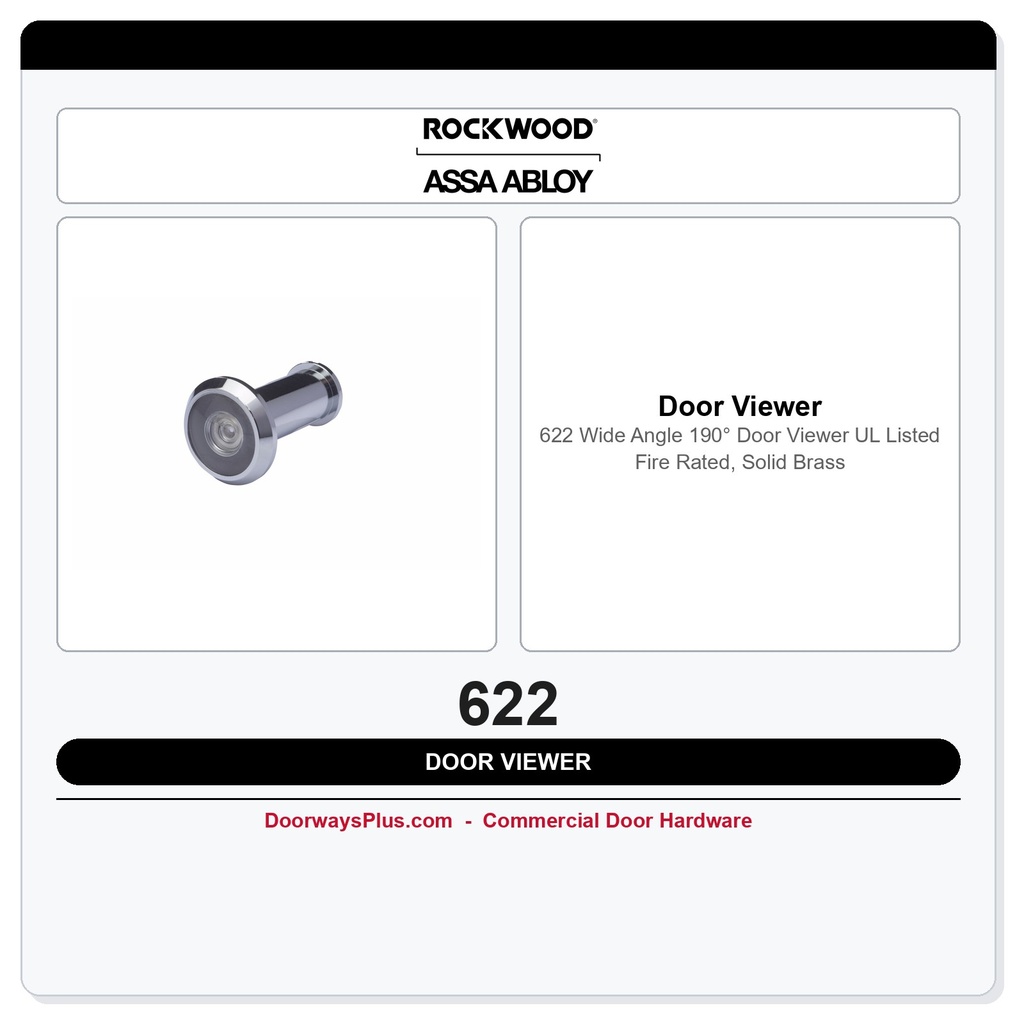

Rockwood 622 Wide Angle 190° Door Viewer | UL Listed Fire Rated

The Rockwood 622 Door Viewer is a premium security accessory designed to provide a comprehensive view of the area outside your door without compromising your safety. Featuring an expansive 190-degree field of vision, this viewer eliminates blind spots, allowing you to identify visitors clearly. Crafted from solid brass and UL listed for 1-1/2 hour fire doors, it is the professional choice for apartments, hotels, and high-security commercial offices.

Essential Security & Safety Features

• Panoramic 190° Visibility: The wide-angle optical lens provides a "fish-eye" view that covers the entire entryway, ensuring you can see anyone standing to the side of the door or low to the ground.
• Fire-Rated Compliance: This viewer is UL listed for use on fire-rated door assemblies (up to 90 minutes), making it essential for meeting building codes in multi-family and commercial structures.
• Architectural Grade Brass: Manufactured from solid brass for superior durability and corrosion resistance, ensuring the lens housing remains secure and the finish stays pristine.
• Privacy Options: For added security, a matching 622VC Privacy Cover (sold separately) to prevent visual intrusion from outside of the room,
• Optional Cover Plate available by quote: Rockwood 622VC


Technical Specifications & Installation

• Model: Rockwood 622
• Viewing Angle: 190 Degrees
• Door Thickness: Adjusts to fit doors from 1-3/8" to 2-1/8" thick.
• Installation: Requires a standard 9/16" diameter hole.
• Standards: Meets ANSI A156.16: L03221 and L03172 specifications.
• Material: Solid Brass

​
