Rockwood 306B Beveled Door Edge Guard | Stainless Steel Protection

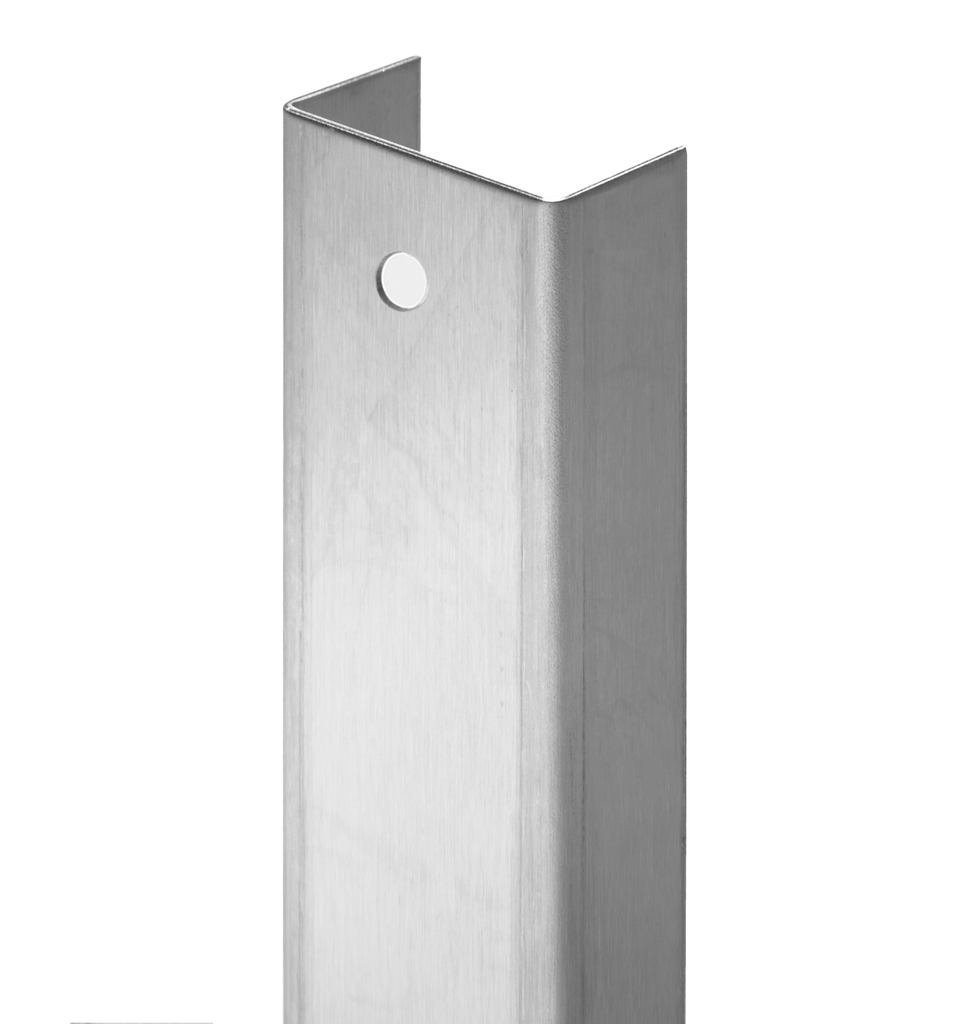

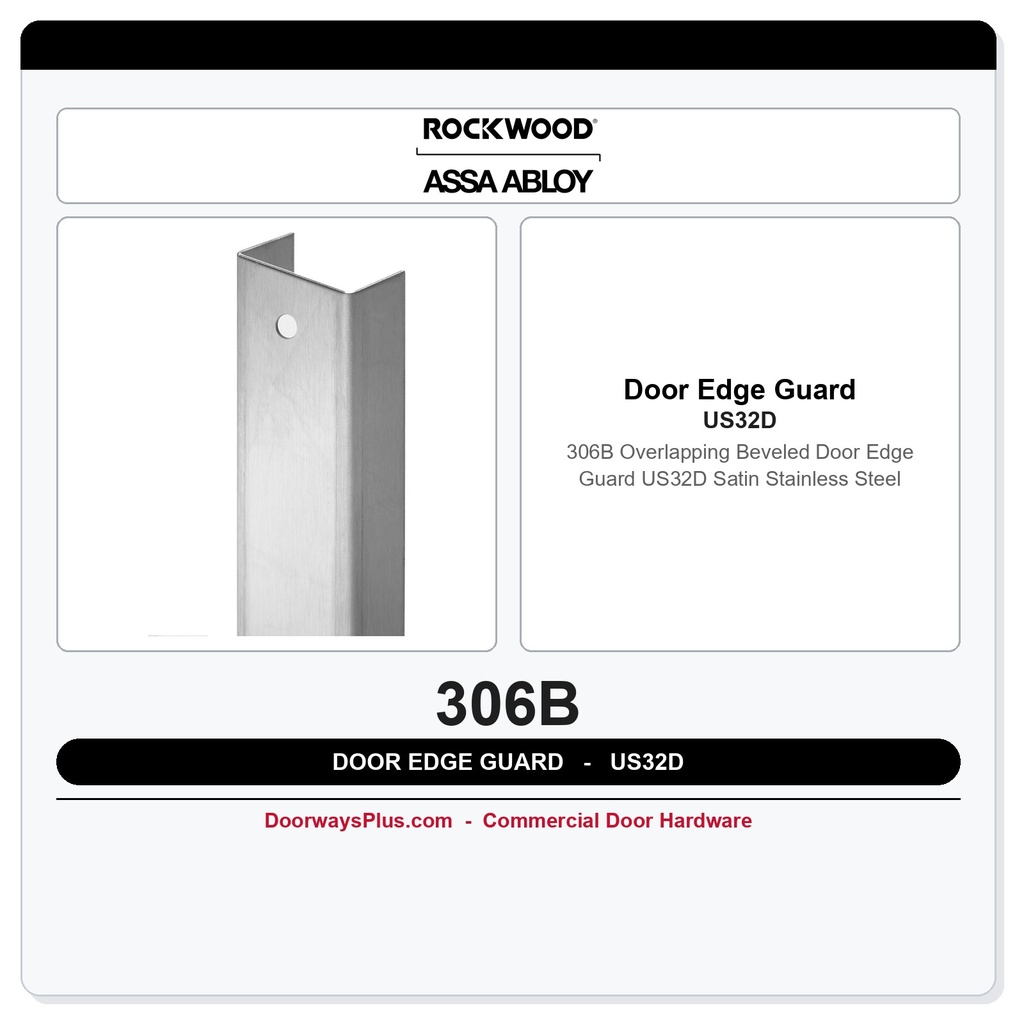

The Rockwood 306B Beveled Door Edge Guard is a high-performance architectural solution designed to shield the vertical edges of beveled doors from constant impact. Featuring a U-shaped "wrap-around" design, it provides simultaneous protection for both the door face and the edge. Crafted from .050" thick stainless steel, this surface-applied guard is the industry standard for maintaining the structural integrity of doors in hospital corridors, loading docks, and school entryways.

Industrial-Grade Protection & Fire Safety

• Beveled Edge Optimization: Specifically engineered for beveled-edge doors, ensuring a precision fit that doesn't interfere with the door's latching or closing cycle.

• Non-Mortised Surface Application: The low-profile design allows for surface-applied installation, eliminating the need for complex door prep or mortising while maintaining a clean, professional aesthetic.

• UL Fire Rated Options: Available as the 306B-UL, this guard is UL listed for use on wood/plastic fire doors (up to 1.5 hours) and hollow metal/composite fire doors (up to 3 hours).

• Corrosion-Resistant Stainless Steel: The US32D Satin Stainless Steel finish offers superior durability and resistance to harsh cleaning chemicals and heavy carts.

Technical Specifications

• Model: Rockwood 306B (Beveled)
• Material: .050" Thick Stainless Steel
• Finish: US32D Satin Stainless Steel
• Door Thickness: Sized for standard 1-3/4" thick doors (Custom thicknesses available).

• Fasteners: Included #6 x 5/8" FH SMS.

• Dimensions: Custom lengths and cutouts for hinges or locks are available by quote.

​
