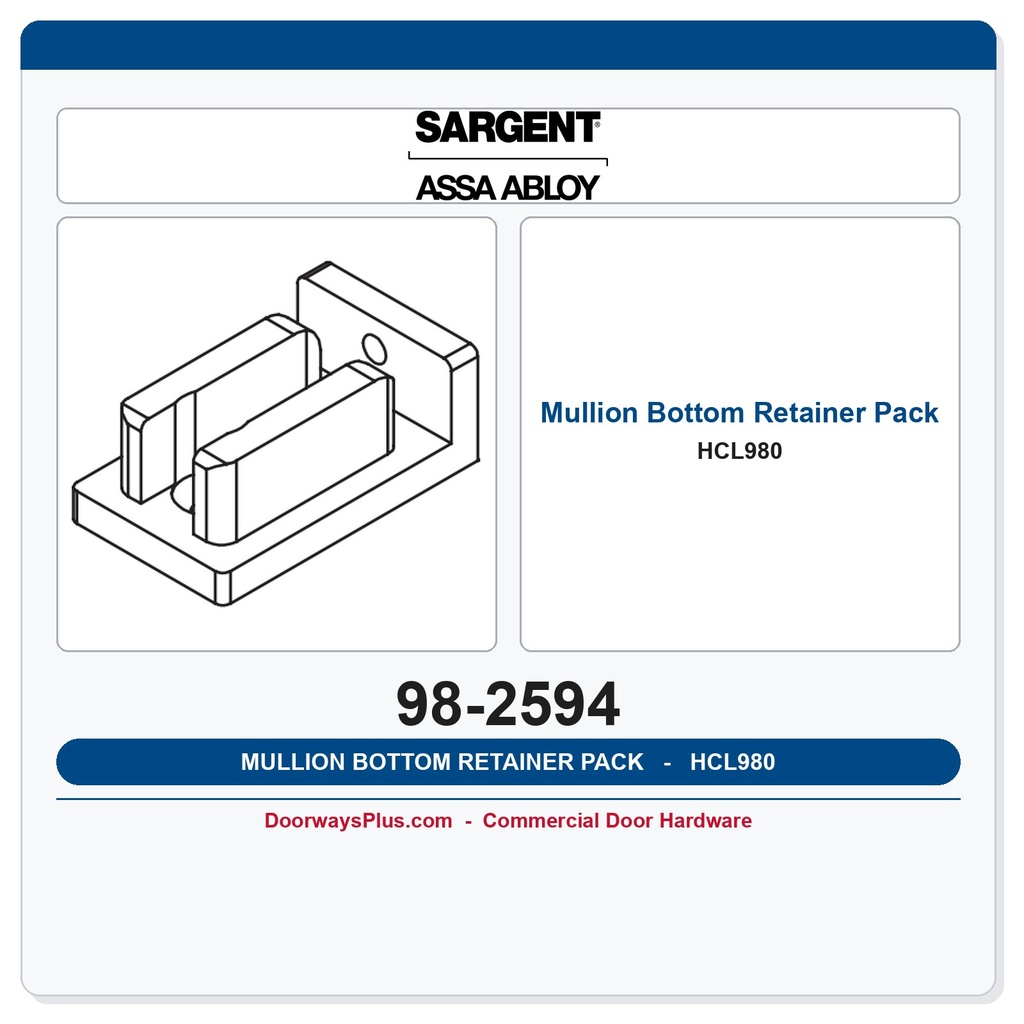

Sargent 98-2594 Hurricane Mullion Bottom Retainer Pack for HCL980 & 12-HCL980
The Sargent 98-2594 is a Mullion Bottom Retainer Pack engineered specifically for the Sargent HCL980 and 12-HCL980 removable mullions within the Sargent 80 Series door hardware system. These steel mullions are purpose-built for severe wind load conditions associated with hurricanes and windstorms, tested to Dade County protocols and ASTM standards. The 98-2594 bottom retainer pack is the factory-designated catalog accessory that secures the base of those mullions at the floor, ensuring proper alignment and structural integrity during high-wind events. The 12-HCL980 prefix designates the fire-labeled mullion version, and this retainer pack is compatible with both standard and fire-labeled configurations. Retainers in this pack are constructed of malleable iron, as catalog-specified by Sargent.
Institutional Grade Features & Benefits
- Factory-Designated Accessory: Catalog-listed in the Sargent 90 Series catalog (90128 07/19) as the correct bottom retainer pack for HCL980 and 12-HCL980 mullions — ensuring a true OEM fit without modification.
- Malleable Iron Construction: Retainers are manufactured from malleable iron for durability and reliable performance under the demanding conditions associated with hurricane-rated and severe-wind-load door assemblies.
- Hurricane & Wind Load Mullion Support: Designed to complement HCL980 and 12-HCL980 steel mullions tested to Dade County protocols and ASTM standards for severe wind load and hurricane conditions.
- Fire-Label Mullion Compatibility: Compatible with the 12-HCL980 fire-labeled mullion variant, supporting fire-rated opening assemblies where that mullion configuration is specified.
- Removable Mullion System: This retainer pack is part of a removable-mullion assembly, maintaining the intended operational flexibility of the HCL980 mullion design.
- Companion Accessories Available: Pairs with Sargent 98-2593 (companion retainer pack) and Sargent 601 (top retainer shim kit) for a complete mullion retainer installation.
- 80 Series Compatibility: Designed for use within the Sargent 80 Series hardware platform, maintaining system-level compatibility across the mullion assembly.

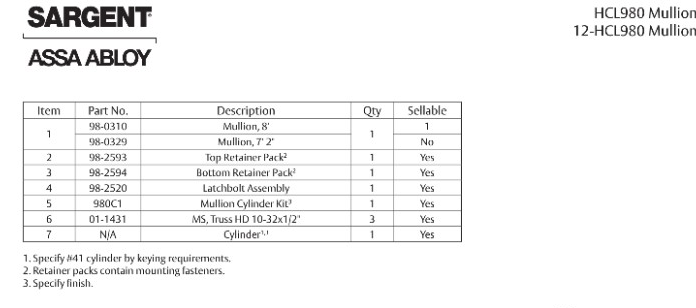

Parts List

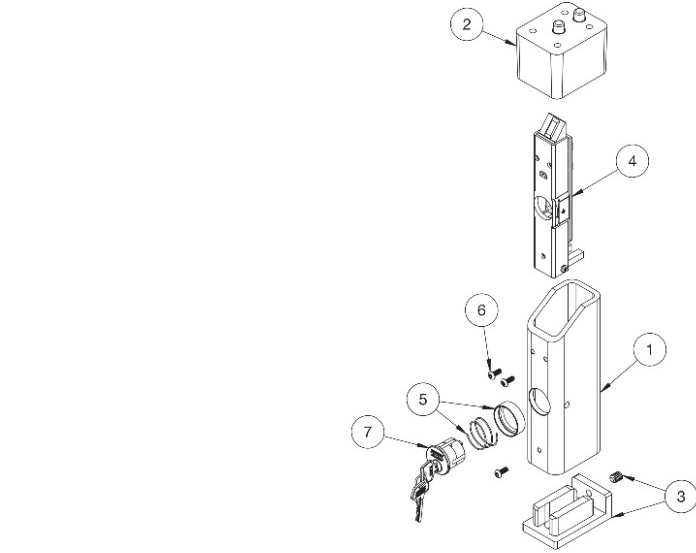

Exploded Diagram
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 98-2594 |
| Part Type | Mullion Bottom Retainer Pack |
| Catalog Reference | HCL980 / 12-HCL980 (Sargent 90 Series Catalog 90128 07/19, Mullions page) |
| Series Compatibility | Sargent 80 Series |
| Mullion Compatibility | HCL980 (standard) and 12-HCL980 (fire-labeled) |
| Material | Malleable Iron |
| Wind Load / Testing | For mullions tested to Dade County protocols and ASTM standards (severe wind load / hurricane conditions) |
| Companion Pack | Sargent 98-2593 |
| Companion Shim Kit | Sargent 601 (Top Retainer Shim Kit) |
| Mullion Type | Removable mullion |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Fire Rated | Fire Rated, Non-Rated |
| Part Type | Mullion Bottom Retainer Pack |
